China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of p171622 hydraulic filter replacement in China. Welcome to wholesale original and genuine p171622 hydraulic filter replacement from our factory. Contact us for cheap products and OEM service.

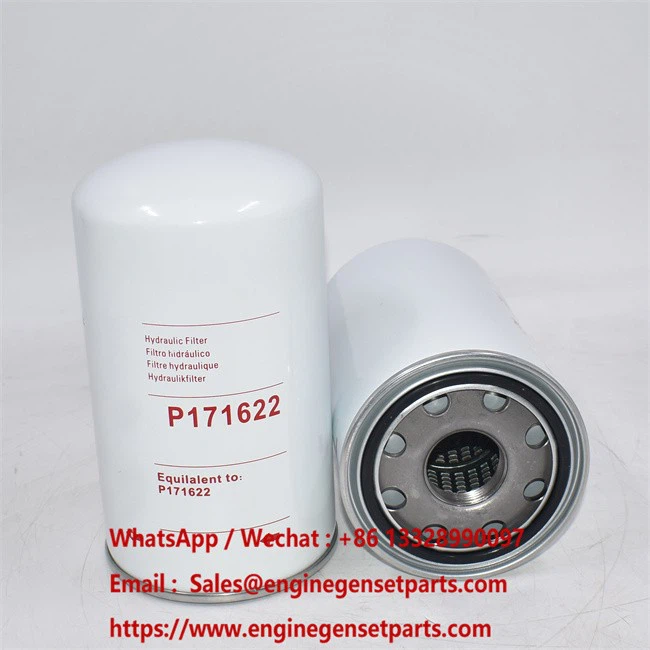

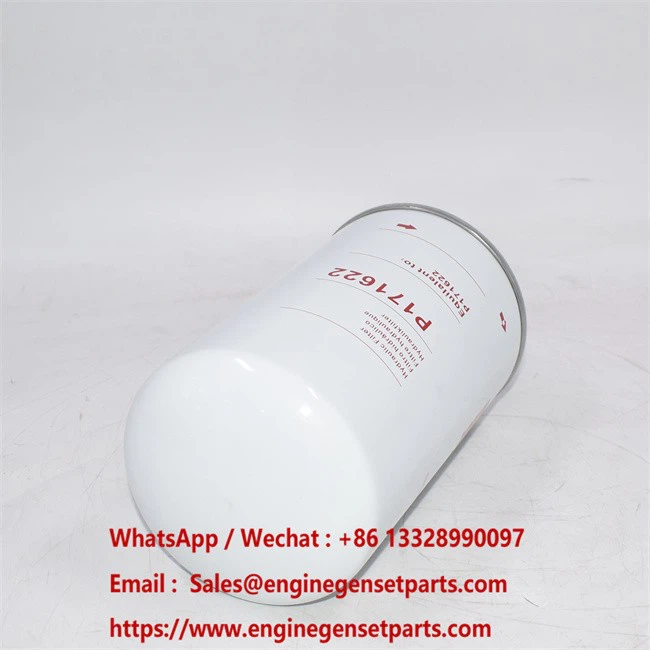

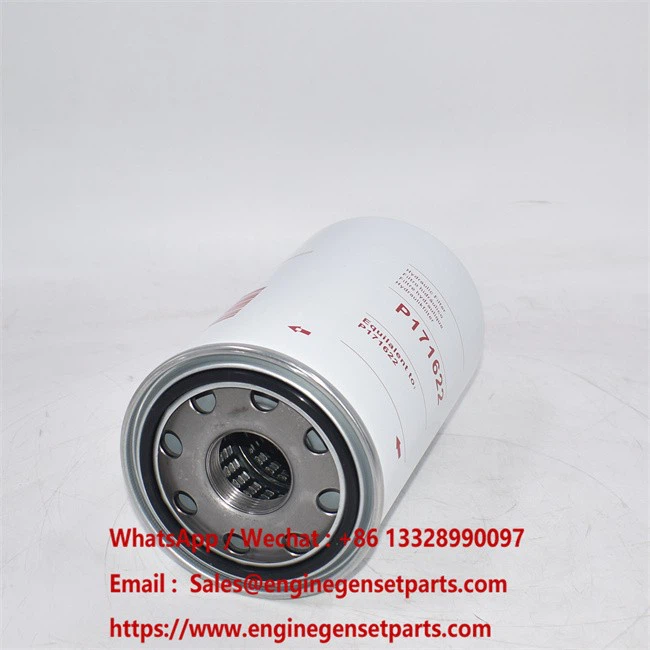

P171622 Hydraulic Filter
Heavy-Duty Wire Mesh Spin-On for JCB and Industrial Equipment
Built with durable wire mesh to handle high-flow demands and resist pressure surges.
Features a 1 1/4 BSP/G thread size for a secure, leak-proof interface with filter heads.
Beta 2 = 60 micron rating, providing critical protection for sensitive pumps and valves.
Rapid maintenance design for superior sealing in high-vibration excavator applications.
Technical Deep-Dive: Protecting Hydraulic Systems
High-Strength Filtration for Tracked Excavators
Hydraulic filters are essential for removing metallic wear particles and debris from hydraulic oil before they can reach precision components. The P171622 is specifically designed for the high-pressure environment of the JCB 140X L SV series. By utilizing a wire mesh media, this filter ensures maximum oil flow while maintaining strict 60-micron filtration levels.
Why Choose the P171622 Replacement?
Operators of earthmoving machinery require filtration that can withstand extreme duty cycles. Our P171622 offers:
- Mechanical Integrity: With an overall length of 226 mm (8.90 inches), this filter provides a large internal volume to reduce backpressure.
- OEM Compatibility: Fully cross-referenced to JCB 334G5406 and MP FILTRI CS150M60A, ensuring a perfect mechanical fit.
- Vibration Resistance: The 126 mm outer diameter and 107 mm gasket OD are engineered to maintain a vacuum-tight seal.
Technical Specifications
| Feature | Specification Details |
|---|---|
| Model Number | P171622 |
| Filter Style | Spin-On |
| Media Type | Wire Mesh |
| Outer Diameter (OD) | 126 mm (4.96 inch) |
| Overall Length | 226 mm (8.90 inch) |
| Thread Size | 1 1/4 BSP/G |
| Gasket OD / ID | 107 mm / 97 mm |
| Efficiency | Beta 2 = 60 micron |
Cross Reference
OEM / Brand Interchange
Donaldson: P171622 | HiFi: SH 63206
JCB: 334G5406 | MP FILTRI: CS150M60A
OMT: CS15CN | BCS: 620F39028
IKRON: HEK4530210ASMS060 | MODINA: CA302MS1
Core Applications
- Equipment: JCB 140X L SV Tracked Excavator
- Engine: JCB EcoMAX 444 (2019+)
- Tractors: BCS specialized hydraulic systems
Application Industries
Quality Standards & Reliability
Every P171622 replacement is manufactured to withstand the thermal expansion and pressure spikes common in the JCB EcoMAX 444 engine-driven systems. The wire mesh media is specifically chosen for its ability to be cleaned and its resistance to chemical breakdown in various hydraulic fluids. Each unit is tested for thread accuracy and gasket compression to ensure a lifetime of leak-free service.
Maintenance & Technical FAQ
Q: What is the main application for the P171622 hydraulic filter?
A: It is a primary hydraulic filter for the JCB 140X L SV excavator equipped with the EcoMAX 444 engine.
Q: What is the thread size of the P171622?
A: This filter uses a 1 1/4 BSP/G thread, a common standard for European and industrial hydraulic systems.
Q: Can I use this filter if my manual calls for MP FILTRI CS150M60A?
A: Yes, the P171622 is a direct interchange for the MP FILTRI CS150M60A and the HiFi SH 63206.
Q: What is the micron rating for this hydraulic filter?
A: The P171622 features a Beta 2 = 60 micron efficiency rating, utilizing high-durability wire mesh media.
Maintain Peak Hydraulic Performance
"Minimize downtime for your JCB and industrial fleets."
- ✔️ Wholesale Pricing: Bulk discounts available for fleet managers and parts distributors.
- ✔️ Technical Verification: Contact us for cross-references for Parker, Pall, or Hydac.
- ✔️ Global Shipping: Fast delivery options for all heavy-duty excavator components.
