China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of sh53335 hydraulic filter in China. Welcome to wholesale original and genuine sh53335 hydraulic filter from our factory. Contact us for cheap products and OEM service.

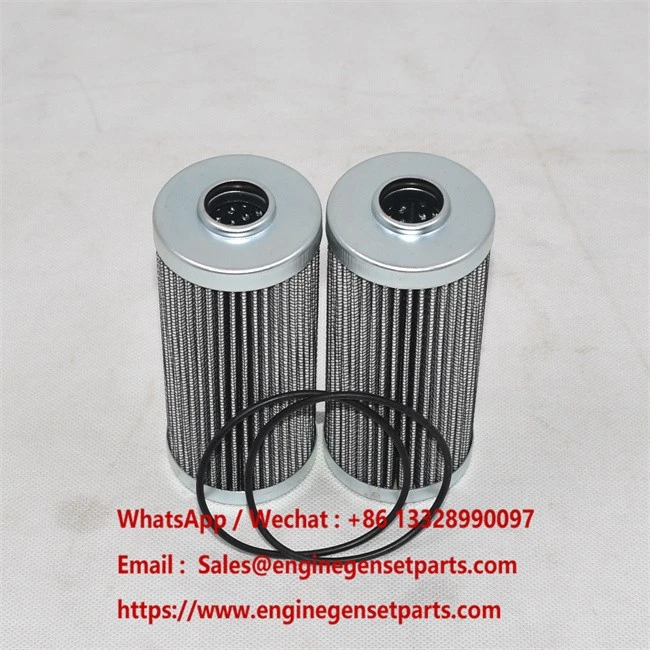

AYREST SH 53335 Hydraulic Filter for Heavy Machinery
High-Precision Contamination Control | 100% Interchangeable with HiFi SH 53335
The AYREST SH 53335 is a premium-grade hydraulic filter element designed for high-pressure systems. It provides superior protection for sensitive hydraulic components by maintaining fluid cleanliness according to ISO 4406 standards. Engineered as a direct-fit replacement, it ensures zero downtime during maintenance for global B2B fleets.
Technical Specifications
| Part Number | SH 53335 (AYREST Series) |
| Cross Reference | HiFi Filter SH 53335 |
| Filter Media Type | Inorganic Synthetic Fiberglass (Multi-layer) |
| Micron Rating | 10μm (Nominal) / 25μm (Absolute) |
| Efficiency Beta Ratio | βx(c) ≥ 1000 |
| Operating Temperature | -20°C to +120°C (-4°F to +248°F) |
| Seal Material | NBR (Buna-N) Standard / Viton Optional |
Detailed Description: Optimizing Fluid Power Performance
A hydraulic filter is designed to remove particulates from fluid power systems to prevent abrasive wear on high-precision pumps and valves. The SH 53335 replacement by AYREST utilizes pleat-lock technology, which ensures uniform pleat spacing even under high-pressure surges.
By implementing a gradient-density media structure, our filters capture larger particles on the outer layers and microscopic contaminants in the inner layers. This provides a significantly higher dirt-holding capacity, effectively extending the interval between service cycles and reducing the Total Cost of Ownership (TCO) for heavy equipment operators.
Industry Applications
Cross Reference & Compatibility
Standard Interchange Part Numbers:
Quality Assurance & Certification
- ISO 9001:2015 certified manufacturing process.
- Tested according to ISO 16889 multi-pass filtration standards.
- Burst and collapse resistance verified per ISO 2941.
- 100% inspection of seal integrity and pleat consistency before dispatch.
FAQ: Professional Procurement Guide
Q1: How do I verify if the SH 53335 is compatible with my machine?
A: You can cross-reference the OEM part number or Hifi Filter code. AYREST SH 53335 is designed to match the exact dimensions and pressure ratings of the original specifications.
Q2: What happens if the filter efficiency is lower than required?
A: Low efficiency allows contaminants to bypass the filter, leading to "stiction" in hydraulic valves and premature wear of expensive hydraulic pumps.
Q3: How to choose the right hydraulic filter for industrial plants?
A: Focus on the micron rating, flow rate compatibility, and collapse pressure. High-dirt holding capacity is essential to reduce maintenance frequency.
Q4: Does AYREST provide samples for technical validation?
A: Yes, we provide samples for B2B clients and fleet managers to undergo laboratory or field testing prior to bulk procurement.
Q5: Can you provide custom branding for large orders?
A: Yes, we support OEM/ODM services including custom micron levels, private labeling, and specialized packaging for wholesalers.
Get a Factory-Direct Quote Now
Professional Support for Fleet Managers and Industrial Procurement
