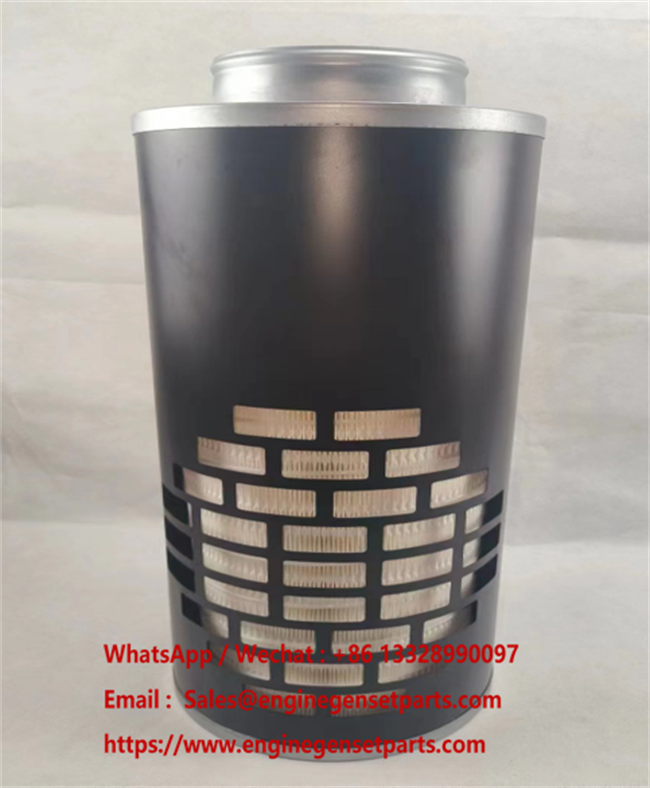

46848 Heavy-Duty Air Induction Element
Advanced Volumetric Airflow Solution for 550 KVA Power Generation & Heavy-Duty Cummins/Caterpillar Diesel Propulsion Systems.
46848 Product Brief & Technical Highlights
The 46848 is a high-velocity disposable air intake solution engineered specifically for high-KVA power generation and heavy transport engines. It provides critical engine protection by maintaining ultra-clean airflow under extreme vacuum loads, ensuring that the internal combustion environment remains free from abrasive contaminants that cause premature wear.
46848 Verified Technical Specifications
Every 46848 unit is Verified to OEM Standard Tolerances for seamless field integration.
| Parameter | Imperial Measurement | Metric Measurement |
|---|---|---|
| Model Number | 46848 | 46848 |
| Overall Length | 25.80 inch | 655.32 mm |
| Body Length | 24.00 inch | 609.6 mm |
| Body Diameter (Max) | 9.76 inch | 248.0 mm |
| Outlet Diameter | 6.00 inch | 152.4 mm |
| Rated Flow (HR) | 999 cfm | 28.3 m³/min |
| Restriction (HR) | 7 inch H2O | 17.44 mbar |
Proprietary Notice: Detailed 2D/3D CAD drawings are available only upon formal technical inquiry to protect proprietary mold engineering.
46848 Global Cross Reference & Interchangeability
The 46848 provides absolute interchangeability for the following industry standards:
46848 Advantages
- Superior Dust Holding Capacity (DHC):
Increased surface area reduces the pressure drop over time, extending service intervals and significantly lowering the Total Cost of Ownership (TCO). - Enhanced Fuel Economy:
By maintaining a consistent restriction HR of 17.44 mbar, the fuel injection system maintains optimal air-to-fuel ratios, optimizing combustion. - Component Longevity:
Advanced filtration depth prevents abrasive particles from entering the cylinder, extending the life of valves, piston rings, and liners.
46848 Compatibility Matrix
| Equipment Brand | Application / Engine | Technical Requirement |
|---|---|---|
| SIMED | 550 KVA Generator | High-Volume Stationary |
| GM (General Motors) | 04 R 0005301 Chassis | Heavy Transport Specialty |
| Caterpillar | C15, 3406, 3306 Series | Industrial Work Cycles |
| Cummins | ISX, N14, M11 Series | Long-Haul Logistics |
Quality Assurance & Standards
Produced under a 12-point QC inspection system, covering media uniformity and bond strength. Conforms to ISO 5011 for intake efficiency and ISO 4548 for media consistency.
Environment & Maintenance
In severe conditions (mining, construction), daily restriction checks are mandatory. Replace immediately upon threshold signal.
Strictly prohibit blowing out the filter with compressed air. High-pressure pulses rupture the delicate fiber matrix, destroying the absolute filtration rating and risking engine failure.
Expert Insights: The Metal Mesh Advantage
The 46848 utilizes an inner metal support mesh designed to counteract the "anti-bunching" phenomenon. In high-vacuum scenarios, standard paper pleats tend to collapse together, which increases restriction and starves the engine of air. Our reinforced structure ensures that the entire media surface area remains active, providing a stable Beta ratio throughout the filter's life cycle.
Factory Direct Logistics & Procurement
Eliminate middleman costs for better pricing on large-scale fleet orders.
Tiered Volume Pricing • Global Logistics Support
