China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of p164598 hydraulic filter in China. Welcome to wholesale original and genuine p164598 hydraulic filter from our factory. Contact us for cheap products and OEM service.

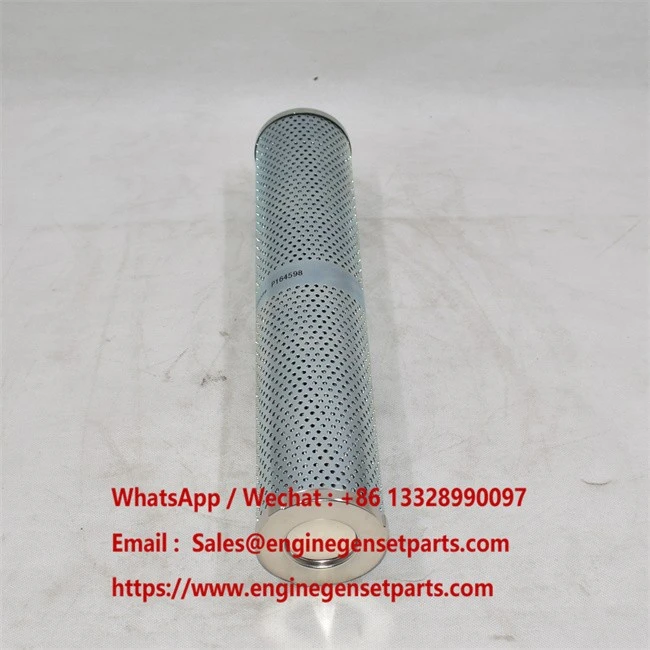

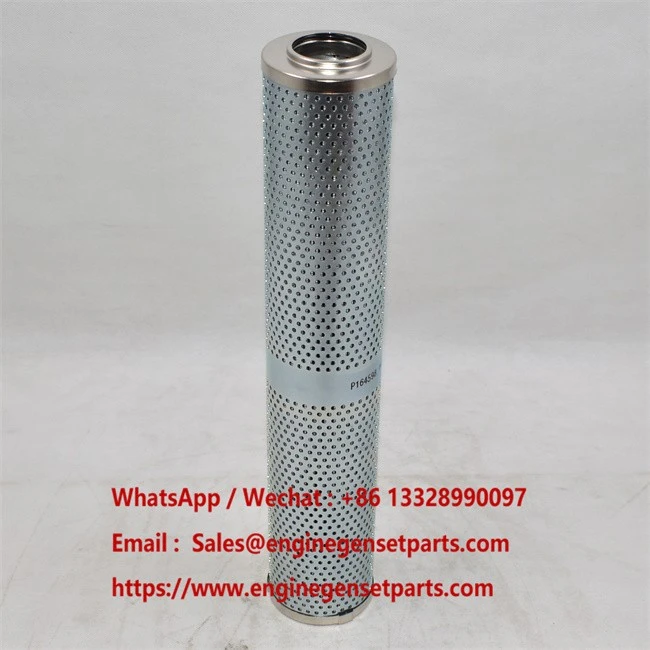

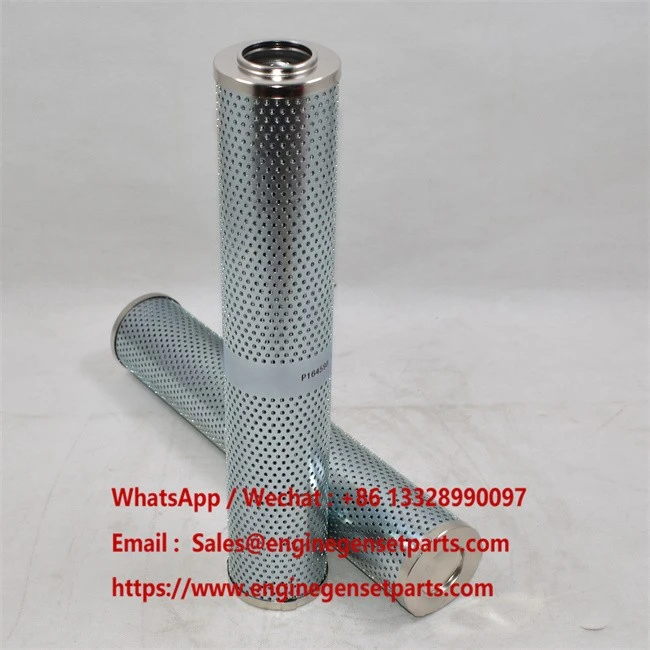

P164598 Hydraulic Filter
P164598 Hydraulic Filter is a heavy-duty, premium-engineered filtration element designed to maintain optimal fluid cleanliness in high-pressure industrial hydraulic systems. Manufactured in strict accordance with the ISO 4572 efficiency test standard, this filter features an advanced dual-beta rating of β75 = 5.10 μm and β200 = 6.50 μm, guaranteeing the capture of up to 99.5% of damaging microscopic particulates. Engineered with a robust minimum collapse/burst rating of 1034.00 kPa and a high-capacity rated flow of 170.00 L/min (44.91 gpm), it delivers continuous fluid flow and uncompromising component protection under volatile pressure spikes. It serves as a highly reliable, cost-effective direct replacement for leading OE brands across global markets, including North America, Europe, South America, and Southeast Asia.
Heavy-duty machinery operating in open-pit mining, quarrying, and geophysical exploration demands absolute hydraulic system integrity.
ATLAS COPCO ROC 810 Crawler Drill Rigs: Operating in high-dust, high-vibration mining environments, these rigs subject their hydraulic circuits to extreme airborne contamination. If micro-particles breach the system, they cause catastrophic valve sticking and rapid pump erosion, resulting in thousands of dollars per hour in unscheduled downtime.
SERCEL NOMAD 65 Seismic Vibrator Trucks: These vehicles generate high-frequency, heavy-load hydraulic vibrations to conduct exploration. This severe mechanical stress causes rapid pressure pulsations within the hydraulic lines.
The P164598 Hydraulic Filter is structurally reinforced to neutralize these exact threats. Its rigid media configuration and heavy-duty center tube prevent filter pleat flexing and media migration under intense vibration, ensuring consistent filtration efficiency and safeguarding high-value proportional valves and piston pumps in the harshest field environments.
| Raw Parameter | Technical Advantage | Buyer Benefit |
|---|---|---|
| Particle Size at β75 = 5.10 μm Particle Size at β200 = 6.50 μm |
Multi-pass micro-glass media with precise pore-size distribution achieving 98.66% (β75) and 99.5% (β200) efficiency. | Superior Component Protection: Intercepts invisible, abrasive clearance-size particles, drastically reducing premature wear on high-precision servo valves and high-pressure pumps. |
| Element Collapse/Burst, Min: 1034.00 kPa / 10.34 bar |
High-strength structural inner core designed to withstand extreme differential pressure. | Zero Media Collapse: Prevents filter element rupture during cold-start viscosity spikes or sudden system pressure surges, eliminating the risk of catastrophic bypass contamination. |
| Rated Flow: 44.91 gpm / 170.00 L/min |
Low-restriction flow dynamics that maximize fluid circulation with minimal initial pressure drop (ΔP). | Anti-Cavitation Performance: Guarantees optimal hydraulic response times and maintains precise flow speeds, preventing oil starvation, pump cavitation, and system overheating. |
| Dimensions: Length: 16.86" (428.24 mm) Largest OD: 3.12" (79.30 mm) Largest End ID: 1.67" (42.42 mm) |
Strict dimensional tolerance control matching original ISO 4572 testing specifications. | Leak-Free Drop-in Fit: Eliminates fluid bypass caused by improper sealing or sizing, ensuring 100% of the hydraulic oil passes through the filter media. |
The P164598 Hydraulic Filter features comprehensive multi-brand cross-reference compatibility, making it an ideal standardized choice for global fleet managers. It is fully certified for interchangeability in North America, Europe, South America, Southeast Asia, the South Pacific, Mexico, and Central America.
| Brand | Part Number | Fitment Accuracy |
|---|---|---|
| Donaldson | P164598 | Direct OEM Replacement |
| Caterpillar | 3I0627 | Meets/Exceeds OEM Specs |
| Fleetguard | HF8077 | Direct Functional Equivalent |
| Baldwin | H9084 | Direct Functional Equivalent |
| Luber-finer | LH4232 | Direct Functional Equivalent |
| Filtrec | D1-43-G06A | Direct Functional Equivalent |
| SF Schupp | HY 20653 | Direct Functional Equivalent |
TCO Savings
In heavy-duty applications, a hydraulic filter is not just a consumable-it is a high-yield insurance policy. The procurement cost of a premium P164598 filter element represents less than 1% of the cost of a main hydraulic pump or a proportional valve bank. By consistently capturing microscopic silt, this filter extends hydraulic oil life by up to 2× and reduces component wear, dropping your overall maintenance budget and eliminating catastrophic field failures.
Prevent Secondary Contamination During Swaps: Hydraulic systems are highly sensitive to particle entry. Before removing the old P164598 element, thoroughly clean the exterior of the filter housing head. Ensure the new element remains in its protective packaging until the exact moment of installation to avoid exposing the clean side to ambient dust.
Never Rely Solely on Hourly Intervals: While scheduled maintenance is critical, always monitor the system's differential pressure indicator. If the restriction gauge signals a clog early-especially after a component failure or fluid top-off-replace the filter immediately. Allowing a filter to run in bypass mode sends 100% unfiltered, contaminated oil directly into your sensitive valves.
