Air Filter 24900326

The Air Filter 24900326 is a professional-grade, high-capacity primary radial seal filtration element engineered to deliver ultra-clean intake airflow to heavy-duty industrial air compressors, high-horsepower agricultural tractors, and large-scale harvesting machinery operating under intensive dust conditions.

Send Inquiry

Chat Now

No Information

Primary Air Filter LAF9547

Description

China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of air filter 24900326 in China. Welcome to wholesale original and genuine air filter 24900326 from our factory. Contact us for cheap products and OEM service.

High-Demand Industrial Air Induction Protection

Air Filter 24900326

The Air Filter 24900326 provides exceptional air induction security by capturing fine airborne abrasives, silica dust, and soot before they can reach the engine or compressor combustion chambers. Built as a direct-fit technical interchange for Ingersoll Rand 24900326, Donaldson P618689, HiFi Filter SA 16836, and Fleetguard AF4220, this robust filter is optimized for high-demand platforms including John Deere large tractors, Fendt IDEAL combines, and Ingersoll Rand road construction machinery. Utilizing premium cellulose media and advanced RadialSeal™ technology, it guarantees absolute housing seal integrity, successfully mitigating cylinder liner friction and reducing un-planned fleet maintenance costs in harsh ambient environments.

24900326 Product Advantages

01	Advanced RadialSeal™ Technology Engineered with flexible polyurethane end caps that create a vibration-proof, compression-fitted intake seal against the factory housing wall, eliminating harmful dirty air bypass.
02	High-Efficiency Cellulose Media Features premium-grade pleated cellulose media that achieves an outstanding 99.9% filtration efficiency under rigorous ISO 5011 testing parameters.
03	Rugid Structural Reinforcement Wrapped with an inner and outer expanded diamond-pattern steel grid to maintain exact pleat geometry and prevent filter media collapse under massive high-vacuum induction loads.

24900326 Technical Specifications

Industrial Engineering Parameter	Certified Value / Technical Standard
Style	Air Filter, Primary Radialseal
Generation	RadialSeal™
Type	Primary
Media Type	Cellulose
Filtration Efficiency	99.9%
Efficiency Test Standard	ISO 5011
Inner Diameter	202.7 mm
Length	580.6 mm

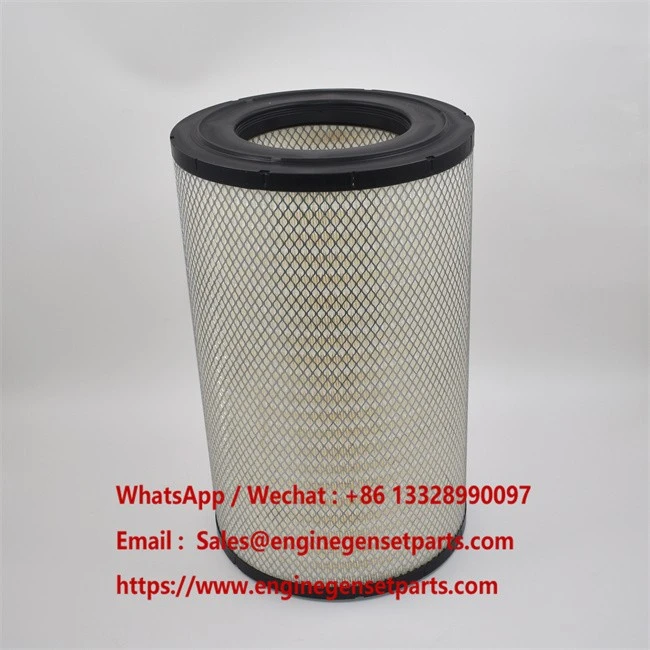

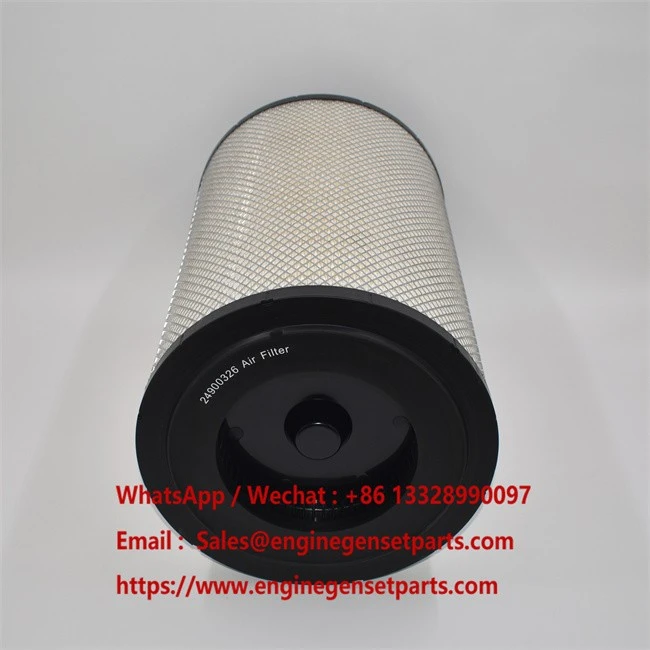

As showcased in the product reference file 24900326 QHZC (7).JPG, this heavy-duty primary filter element features a robust, multi-hole mesh cage backing and an integrated rubberized radial seal base designed to withstand the highest industrial intake suction rates.

24900326 OE Cross-Reference Interchange

This industrial intake filter element is manufactured to match exact technical dimensions and performance criteria, providing an exact drop-in replacement for the following reference codes:

Ingersoll Rand: 24900326	Donaldson: P618689
HiFi Filter: SA 16836	Fleetguard: AF4220

24900326 Certified Vehicle

The industrial-grade Air Filter 24900326 is certified across an extensive global fleet matrix consisting of heavy harvesting machinery, high-tonnage tractors, and rugged road construction units.

FENDT Large-Scale Harvesting Fleets IDEAL Combine Series: IDEAL 7, IDEAL 8, IDEAL 9, IDEAL 10

INGERSOLL RAND Heavy Industrial Equipment Road Roller & Compactor Series: RS 200 I, RS 200 IE, RS 200 N, RS 250 I, RS 250 IE, RS 250 NE

JOHN DEERE Agricultural Machinery & Heavy Tractors

High-HorsePower Tracked & Wheeled Tractors: 6R 540, 9R 440, 9R 490, 9R 540, 9R 590, 9R 640, 9RX 490, 9RX 540, 9RX 590, 9RX 640

Harvesters & Strippers: CH 570, CH 670, CP 770, CS 770

S-Series Combine Harvesters: S 650, S 660, S 670, S 670 I, S 680 I, S 690, S7 600, S7 700, S7 800, S7 850, S7 900

T-Series Combine Harvesters: T5 400, T5 500, T5 600, T5 700, T6 500, T6 600, T 660 I HILL MASTER, T6 700, T6 800

24900326 Targeted Application Scenarios

• High-Dust Combine Harvesting: Perfectly suited for John Deere and Fendt combine harvesters handling dense grain dust, dry chaff, and crop fibers during intensive seasonal crop harvesting windows.

• Heavy Road Compaction Operations: Protects Ingersoll Rand RS roller engines from high concentrations of asphalt fumes, pulverized stone dust, and fine silica particles common to highway construction zones.

• Large Agricultural Soil Management: Delivers reliable engine airflow safety to high-torque 9RX series articulated four-track tractors executing deep seedbed tilling operations in dry, fine-loam agricultural fields.
