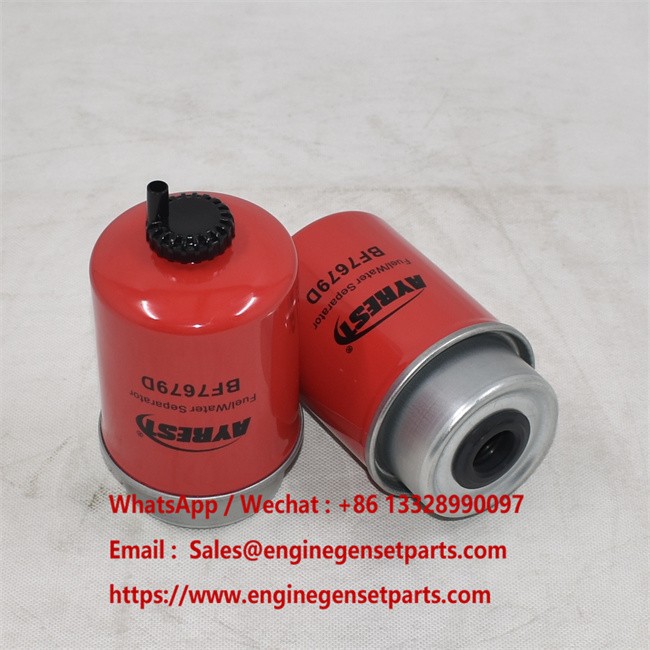

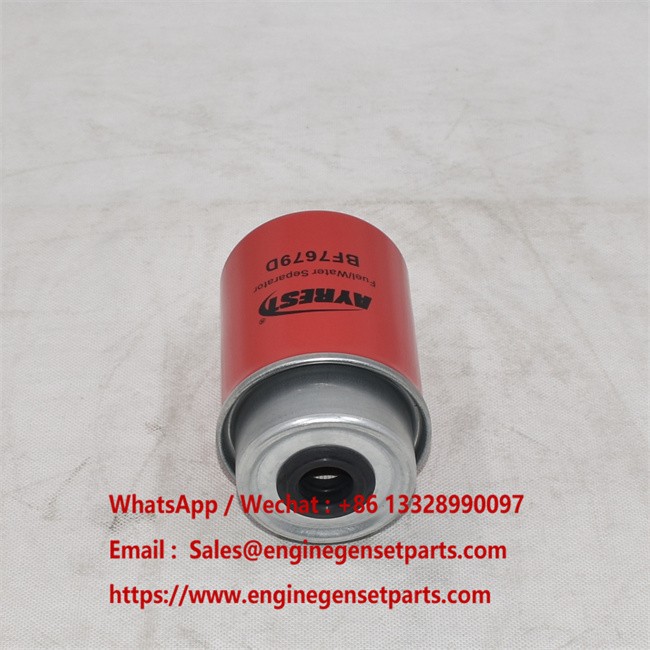

BF7679D Fuel Filter

Engineered to deliver elite fuel conditioning, this specialized spin-on filter isolates emulsified water and fine debris, safeguarding high-pressure common rail fuel networks against corrosion, component stiction, and power degradation under heavy mechanical workloads.
Send Inquiry
Chat Now
Description

China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of bf7679d fuel filter in China. Welcome to wholesale original and genuine bf7679d fuel filter from our factory. Contact us for cheap products and OEM service.



Product Description

This robust canister assembly acts as a crucial defense system for internal combustion engines running on commercial diesel fuel. Utilizing a highly hydrophobic treated multi-layered media structure, it ensures effective phase separation by repelling free water droplets while capturing micron-sized contaminants before they can reach sensitive injectors.

BF7679D Key Technological Advantages

Enhanced Moisture Stripping

Dual-stage separation technology coalesces water particles with high precision, keeping destructive water molecules away from high-precision fuel distribution components.

Threaded Top Cap & Sturdy Drain Design

Equipped with an integrated top valve interface and reinforced steel casing to manage cyclic pressure shocks without flexing or leaking.

Extended Injection Protection

Minimizes fuel injection pump wear and maximizes thermal combustion efficiency by supplying clean, grit-free fuel to cylinders.

BF7679D Product Specifications

Verify structural enclosure alignment by cross-referencing these absolute dimensional specifications against your existing bracket or housing configuration:

Engineering Dimension Metric / Standard Value
Style Form FUEL FILTER
Dimension 1 (D1) 84.0 mm
Dimension 2 (D2) 79.0 mm
Dimension 3 (D3) 69.5 mm
Thread 1 (D7) 3/8"-16UNF
Height 1 (H1) 153.0 mm
Height 2 (H2) 140.0 mm
Height 3 (H3) 110.0 mm

BF7679D OE Cross-References

This premium element matches the exact technical footprint and satisfies warranty installation criteria for the following global cross-reference part numbers:

  • Baldwin: BF7679D
  • Donaldson: P551430
  • Fleetguard: FS19814
  • Mann Filter: WK 8115 (WK8115)
  • HiFi Filter: SN 70132 (SN70132)
  • FIL Filter: ZP 8038 F (ZP8038F)

BF7679D Application Scenarios

Engineered for high-duty machinery cycles across agricultural, logistical, and construction operations globally. It provides targeted fuel purification across an extensive spectrum of industrial setups:

BAUDOUIN: 4 S 108 S
CASE: 1188, 4 T 390, 588, 588G, 688 P, 6 T 590, 788, 788 P, 988 CK, 988 PLUS, CS 100, CS 100 PRO, CS 105 PRO, CS 110, CS 120, CS 130, CS 150, CS 80, CS 80 PRO, CS 85 PRO, CS 90, CS 90 PRO, CS 95 PRO, CVX 120, CVX 130, CVX 150, CVX 170, WX 150, WX 170, WX 185, WX 200
CATERPILLAR: 120 H, 120 HK, 311 CU, 312 C, 318 C, 320 C, 320 CL/CLN, 320 CS, 321 C-LCR, 321 D LCR, 321 D LCR, 322 B-LN, 323 DL/DLN, 325 B, 550, 554, 570, 574, 580, 928 G, 935 C, 938 G, 963 B, 963 C, 963 C, CP 563, DD 5 M, D 6 M, D 6 M LGP, D 6 M XL, M 325 B, M 325 B
CHALLENGER: 455, 55, MT 675 D
ELECTRODIESEL: EDI 100
FENDT: 8350, 9490 X
IMT: AF 10
JCB: G 175
JOHN DEERE: 5080 G, 5080 G, 5080 G F/V, 5080 G F/V, 540 G, 540 G II, 540 G III, 540 G III, 548 G, 548 G II, 548 G III, 548 G III, 6403, 640 G, 648 G, 648 G III, 6603, 740 G, 748 G
KOMATSU FOREST: 860
LAVERDA: M 410 LC
MASSEY FERGUSON: 5641, 5650, 5690, 7244 ACTIVA, 7252, 7256, 7256, 7256 CEREA, 7272 CEREA, 7272 CEREA, 7272 H, 7274 CEREA, 7274 CEREA, 7276, 7278 AL CEREA, 7278 CEREA, 7278 CEREA, 7278 CEREA, 7280 CENTORA, 7282 CENTORA, 7345 S ACTIVA, 7347 S ACTIVA, 7360 BETA, 7370 BETA, 9280 DELTA, MF 7272
NEUSON: 18002
NEW HOLLAND: LB 100 B, RG 140
PANIEN: 8550
PELLENC: 8350
SDMO: DX 6000 TE-XL
SKOGS JAN: 487 CAT, 495 CAT, 695 CAT
STEYR: 9080 MT, 9090 MT, 9100, 9100 MT, CVT 120, CVT 130, CVT 150, CVT 170, M 9100
TIMBERJACK: 360 C, 360 D, 460 C
VALTRA: 6200 R, 6900, 8000, 8050, 8050, 8050 HI, 8150, 8150, 8150 HI, 8350 HI, 8400, 8400, 8450, 8450, 8450 HI, 8550, 8550, 8550 HI, 8750, 8750, 8950 HI
WILLE: 855.
