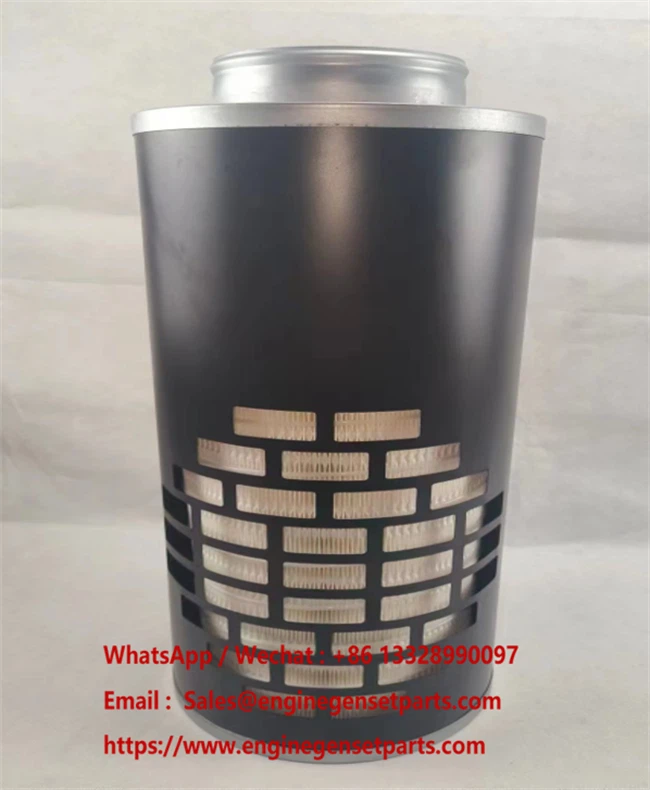

Heavy Duty Air Filter P524837-016-140
Absolute Engine Protection | Premium Synthetic Filtration Media
P524837-016-140 Product Highlights
Zero-Leakage Radial Seal
Engineered with high-compression urethane gaskets to ensure a vacuum-tight interface, effectively eliminating the risk of bypass air.
Advanced Synthetic Media
Utilizes high-efficiency synthetic fibers to intercept micro-particulates, preventing "engine dusting" in high-value power units.
High-Volume Induction
Designed to handle massive air intake requirements with minimal initial restriction, optimizing combustion efficiency.
Absolute Engine Protection
Specifically built to safeguard internal engine components from abrasive silica and debris in severe-duty environments.
P524837-016-140 Technical Specifications
All critical dimensions for the P524837-016-140 are Verified to OEM Standard Tolerances to ensure precise fitment and structural integrity.
| Parameter | Metric Specification | Imperial Specification |
|---|---|---|
| Model Number | P524837-016-140 | P524837-016-140 |
| Overall Length | 647.7 mm | 25.50 inch |
| Body Length | 609.6 mm | 24.00 inch |
| Body Diameter Max | 279.4 mm | 11.00 inch |
| Inlet Diameter | 228.0 mm | 8.98 inch |
| Outlet Diameter | 177.8 mm | 7.00 inch |
| Rated Flow (HR) | 34 m³/min | 1201 cfm |
| Restriction (HR) | 14.95 mbar | 6.00 inch H2O |
| Micron Rating | Absolute 5-10μm | Absolute 5-10μm |
Anti-Counterfeit Protection: Proprietary mold development; detailed 2D/3D CAD drawings are available for technical verification following a formal inquiry.
P524837-016-140 Key Advantages
- High Dust Holding Capacity (DHC): Synthetic media allows for greater particulate accumulation before reaching restriction limits, directly extending service intervals.
- Reduced Intake Resistance: By maintaining low Inlet Restriction, the filter minimizes parasitic engine load, resulting in enhanced Fuel Economy.
- Engine Longevity: Absolute filtration efficiency prevents the gradual scoring of cylinder liners and turbocharger impellers, significantly lowering the Total Cost of Ownership (TCO).
Compatibility Matrix
Engines: Cummins ISX / M11 Series, Caterpillar C15 / 3406E.
Equipment: Freightliner Classic / FLD Series, various standby generator sets and large-scale compressors.
Cross Reference (100% Interchangeable)
Expert Knowledge: Structural Stability
The P524837-016-140 utilizes an external metal cage and internal pleat-lock technology. This design prevents "media bunching" or pleat collapse during high-vacuum surges. For optimal Preventive Maintenance, we recommend inspecting the intake ducting for cracks whenever the filter is changed to ensure the radial seal is not bypassed by external leaks.
Quality Assurance (12-Point QC)
15-Year Heritage: Deep expertise in Air, Oil, and Hydraulic systems.
Compliance: Verified against ISO 5011 and ISO 16889 protocols.
Inspection: Every unit undergoes a 12-point QC check (media integrity & seal compression).
Maintenance & Safety
Prohibited Practice: Strictly avoid "blowing out" or cleaning the filter with compressed air. This destroys the synthetic media structure and leads to immediate engine dusting.
