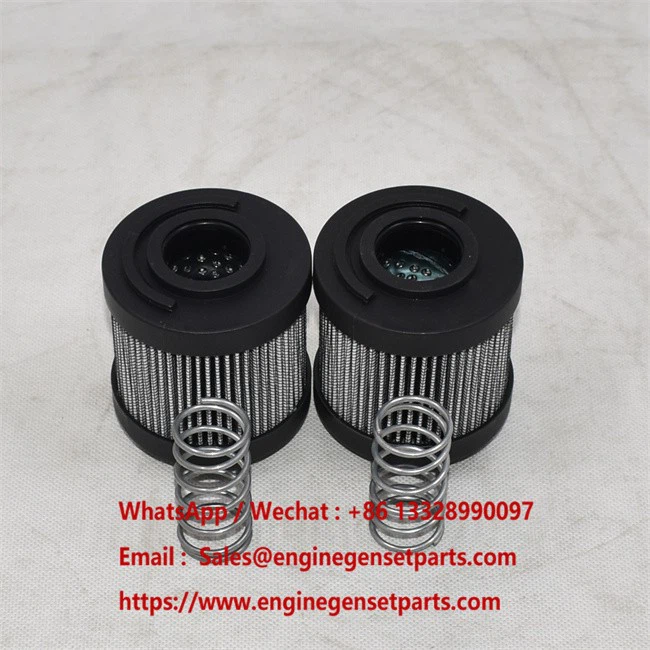

SH63347 High-Precision Hydraulic Filter
Protecting Advanced Proportional Valves & Precision Systems
Product Highlights (High-Efficiency Performance)
Technical Specifications (Engineering Precision)
| Parameter | Metric (mm) | Imperial (inch) | Technical Note |
|---|---|---|---|
| Outer Diameter (D1) | 70.0 mm | 2.76 in | Verified to OEM Standard Tolerances |
| Inner Diameter (D2) | 29.0 mm | 1.14 in | Precision machined for leak-free sealing |
| Center Hole (D3) | 25.0 mm | 0.98 in | Optimized for center-post flow dynamics |
| Overall Height (H1) | 80.0 mm | 3.15 in | Maximum surface area for DHC |
| Shoulder Height (H2) | 75.0 mm | 2.95 in | Proprietary mold development |
| Bypass Valves | 1 | - | Calibrated for cold-start protection |
*Technical Notice: Proprietary mold development. Detailed 2D/3D CAD drawings available upon inquiry.
Cross-Reference Guide
- HiFi Filter: SH 63347
- Filtrec: R120G10B
- Inline: FH50144
- Ikron: HHC03542
- SF Schupp: HY 18419
- * Fleetguard / Donaldson / Baldwin: Contact for verification
Key Advantages
High Beta Ratio beta 1000: Captures 99.9% of microscopic particles.
Superior DHC: Larger effective area extends service intervals and lowers TCO.
Low Flow Resistance: Minimizes parasitic load, improving fuel economy.
Compatibility Matrix
BRIELMAIER: 108.00001, 45HP 27 models.
HUNDEGGER: K3, SC3 series.
HUSQVARNA: K 3600 cutting equipment.
TECNOMA: FORTIS agricultural systems.
Quality Assurance
IATF 16949 certified management systems. Complies with ISO 16889 multi-pass standards. 12-point QC inspection including media integrity and structural burst verification.
Maintenance
500-hour interval (standard) or based on restriction indicators. DO NOT wash or blow out the element, as it voids protection and destroys the fiber matrix.
Expert View: Internal support mesh prevents media bunching. Regular oil analysis combined with SH63347 high-efficiency elements is the only way to prevent erosion of sensitive hydraulic actuators.
Optimize Your Fleet's Performance
Sourcing directly from the factory for maximum cost-efficiency and technical integrity.
AYREST - 15 Years of Excellence in Filtration Manufacturing
