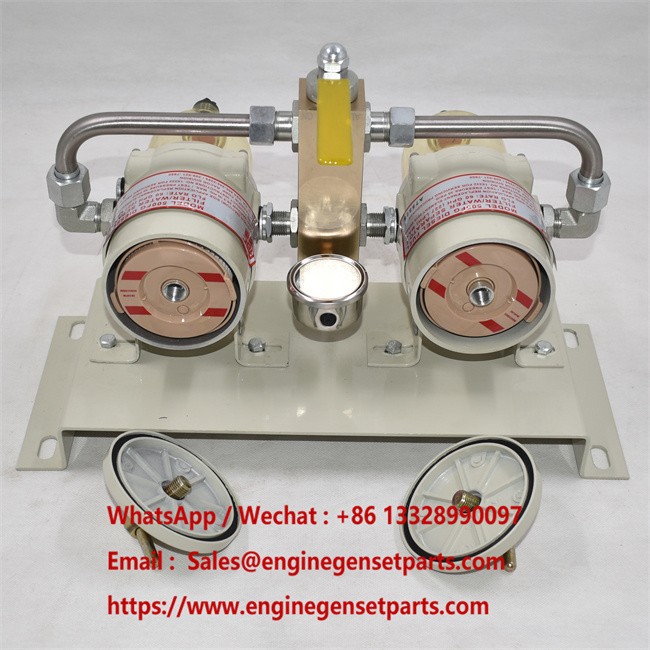

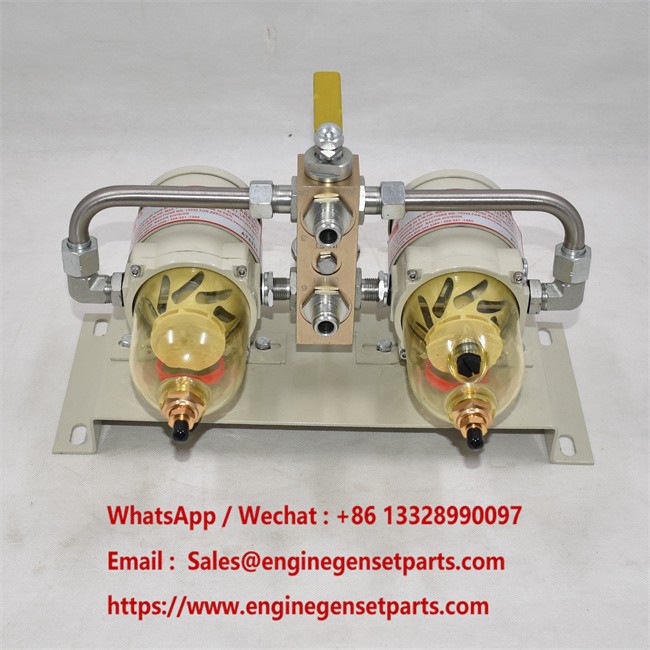

75500FGX Dual Turbine Fuel Filter Water Separator System
120 GPH (454 LPH) | Mission-Critical Fuel Management for Marine & Industrial Diesel
6-way selector valve allows for element replacement while engine is running.
Centrifugal, coalescence, and Aquabloc® media remove 99.9% of water.
Engineered for high-performance diesel up to 120 GPH (454 LPH).
Aluminum alloy and heat-resistant seals for harsh offshore environments.
Product Detailed Analysis
Advanced Marine Fuel Management
The 75500FGX is a "Turbine Series" masterpiece, specifically developed for vessels and standby power systems where fuel quality is unpredictable. By forcing fuel through a centrifugal centrifuge, it spins out heavy water and large debris before the fuel even touches the primary filter media, protecting high-pressure injection systems from catastrophic corrosion.
The "Duplex" Solution for Critical Power
The primary pain point for offshore operators is engine failure due to clogged filters. The 75500FGX Duplex configuration allows the operator to isolate a clogged filter side and divert 100% flow to the clean side via the central handle, ensuring Zero-Downtime Serviceability.
Engineering Differentiation: Aquabloc®
Utilizes multi-layered, corrugated media with massive surface area. This design slows fuel velocity, allowing microscopic water droplets to coalesce and fall into the collection bowl, ensuring only chemically pure diesel reaches the common rail.
Technical Specifications
| Feature | Specification Detail |
|---|---|
| System Type | Duplex Turbine Fuel Filter / Water Separator |
| Max Flow Rate | 120 GPH (454 LPH) |
| Filtration Rating | 10 Micron (TM Series) |
| Housing Material | Die-cast Aluminum Alloy |
| Max Operating Pressure | 15 PSI (1.03 bar) |
| Port Size | 7/8"-14 UNF (SAE J1926) |
| Temperature Range | -40°C to +121°C |
| Replacement Element | 2010TM-OR Series |
Compatibility & Interchange
Direct Interchanges Parker Racor: 75500FGX10 | HiFi Filter: Y 75500FGX10
Industry Applications
Technical FAQ
Q: Why is a 10-micron rating used for the 75500FGX?
A: It provides the ideal balance between fuel flow and protection. Captured fine silt and water that primary filters miss, without the rapid clogging risks of 2-micron elements.
Q: Can I change the filter element while the engine is running?
A: Yes. The 6-way selector valve allows you to isolate the dirty side and switch 100% flow to the clean side for safe servicing during operation.
Q: How do I know if there is water in my system?
A: The clear high-impact bowls allow for easy visual inspection. Water settles at the bottom and can be drained via the self-venting plug.
Q: Is this system compatible with Biodiesel?
A: Yes, it is compatible with high-concentration diesel and Biodiesel blends, provided regular maintenance intervals are followed.
