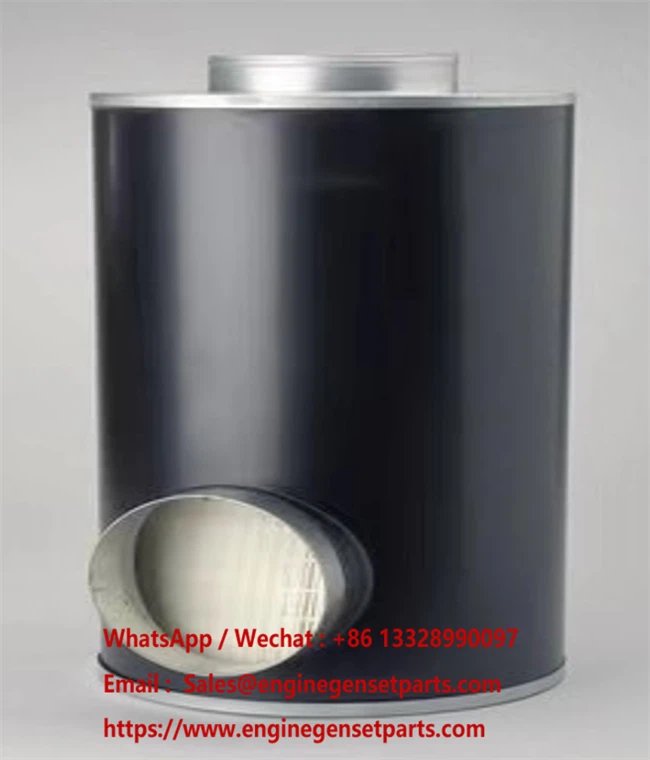

C628913
High-Velocity Industrial Air Induction Filter
The C628913 is a precision-engineered disposable air filter designed for high-displacement power units. It provides superior contaminant exclusion and optimized airflow to prevent "engine dusting" in critical industrial and power generation applications.
C628913 Highlights
Engineered to Prevent Engine Dusting
The C628913 addresses the primary cause of industrial engine failure: the ingestion of atmospheric contaminants. By maintaining a vacuum-tight seal and high filtration efficiency, this unit eliminates "engine dusting," where fine particles erode piston rings and cylinder liners.
How It Works
As a primary air induction component, the C628913 functions through a combination of inertial impaction and diffusion within its multi-layer media. The radial seal design ensures that 100% of the intake air passes through the filter media, compensating for the high-frequency vibrations found in power generation environments.
Quick Specs Summary
- Height: 657 mm
- Weight: 9.14 kg
- Style: Disposable Canister
- Compatibility: 100% Guaranteed
C628913 Technical Specifications
| Feature | Metric Specification | Imperial Specification |
|---|---|---|
| Model Number | C628913 | C628913 |
| Height | 657 mm | 25.87 inch |
| OD/Width Max | 344 mm | 13.54 inch |
| OD/Width Min | 344 mm | 13.54 inch |
| ID/Depth Max | 178 mm | 7.01 inch |
| ID/Depth Min | 178 mm | 7.01 inch |
| Net Weight | 9.14 kg | 20.15 lbs |
C628913 Cross Reference & Compatibility
C628913 FAQ
Q: How does the C628913 differ from standard air filters?
A: This unit features a heavy-gauge metal canister and radial seal gaskets designed specifically for the high suction pressures and thermal cycles of industrial engines.
Q: Can I clean the C628913 with compressed air?
A: No. High-pressure blowing creates micro-tears in the synthetic fibers, leading to immediate engine contamination.
Q: Why is the weight (9.14kg) higher than some competitors?
A: The weight reflects the use of superior gradient-density media and reinforced structural steel required for high Dust Holding Capacity (DHC).
Q: What happens if I use a filter with lower efficiency?
A: Low efficiency leads to "engine dusting," which increases oil consumption, reduces power output, and leads to premature mechanical failure.
Q: Is this filter compatible with Onan generator sets?
A: Yes, it is a direct interchange for Onan 4101223.
