FF5390 Aftermarket Fuel Filter Replacement for Industrial Generator Fleets provides high-efficiency diesel purification, acting as a direct replacement for Fleetguard FF5390 and HiFi SN 40232 elements across commercial power machinery.
China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of ff5390 aftermarket fuel filter in China. Welcome to wholesale original and genuine ff5390 aftermarket fuel filter from our factory. Contact us for cheap products and OEM service.

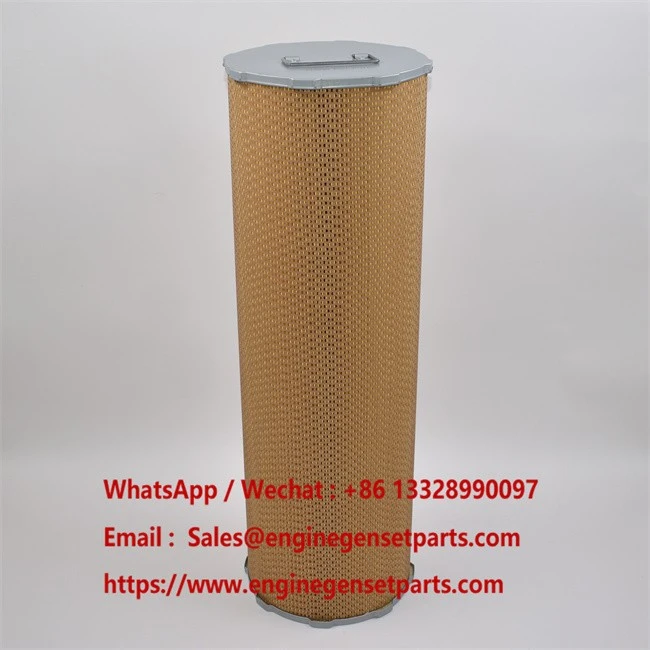

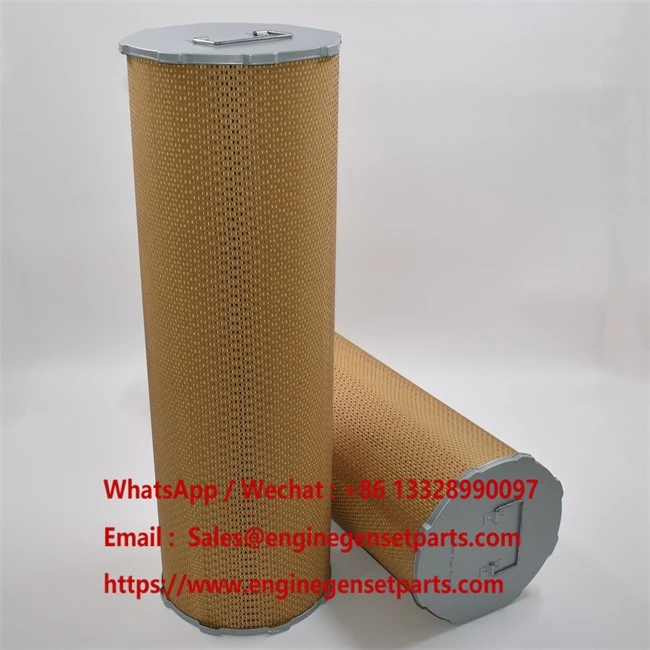

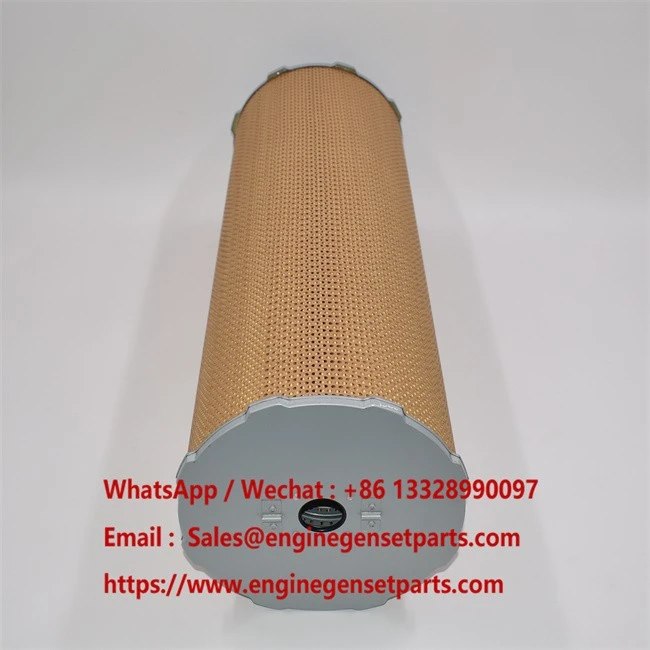

FF5390 Aftermarket Fuel Filter Replacement
Heavy-Duty Fuel System Protection for Industrial Generator Fleets & Critical Infrastructure
FF5390 Detailed Description
FF5390 Aftermarket Fuel Filter Replacement for Industrial Generator Fleets safeguards massive high-capacity fuel systems by stripping out micro-particles, water contaminants, and combustion sludge. It maintains pristine flow rates to prevent injector fouling, maximize fuel economy, and eliminate sudden equipment downtime, building long-term operator trust on critical infrastructure sites.
FF5390 Product Specifications
Parameter
Specification Details
Style
Fuel, Cartridge
Outer Diameter
248.9 mm
Inner Diameter
37.3 mm
Length
746.0 mm
FF5390 Cross-Reference
Brand / Manufacturer
Cross-Reference / OE Part Number
Fleetguard
FF5390
HiFi Filter
SN 40232
Inline
FF5390
FF5390 Key Product Advantages
High-Capacity Pleat Stability:The core structure is heavily reinforced to support the extra-long 746.0 mm media column, preventing pleat collapse or bunching under high suction pressures.
Ultra-Fine Micro-Contaminant Trapping:Utilizes thick, multi-layered filtration media to capture micro-abrasives and fuel sludge before they reach sensitive common rail injectors.
Optimal Flow Dynamics:Despite its dense composition, the large surface area ensures consistent fuel volume movement, preventing power loss and premature system restriction.
Heavy-Duty End-Cap Seals:Outfitted with robust polymer end-caps and integrated top-handle geometries that guarantee an air-tight bypass seal under intense mechanical vibrations.
FF5390 Installation Guide
Step 1System Depressurization: Ensure the primary power unit or generator system is fully powered down and the fuel delivery line is completely depressurized before opening the filter vessel.
Step 2Housing Cleanliness: Unscrew the heavy-duty housing lid. Carefully extract the spent filter cartridge using the built-in metal top handle to minimize dirt transfer into the clean chamber.
Step 3Debris Inspection: Wipe the inner canister walls and the lower seat with a lint-free cloth to eliminate settled bottom sludge and any old gasket remnants.
Step 4Seating the New Element: Align the 37.3 mm inner core hole over the lower center standpipe. Press down uniformly until the element seats squarely against the bottom shoulder.
Step 5Seal & Prime: Replace the main outer housing O-ring with a fresh, pre-lubricated seal. Secure the vessel lid to specified torque limits, then completely prime the fuel line to displace trapped air before starting the engine.
