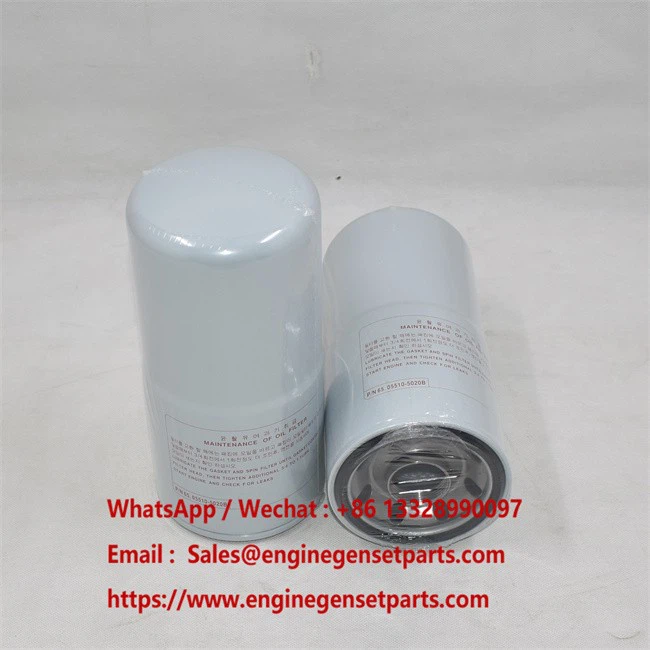

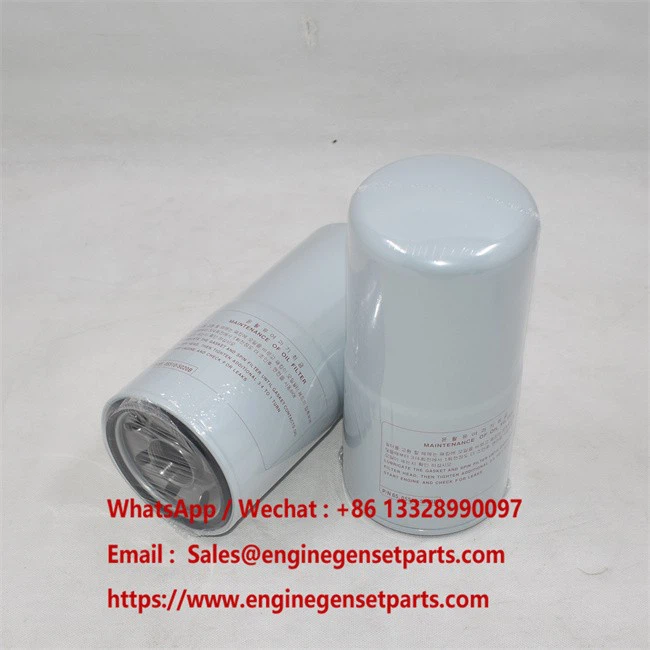

65.05510-5020B Oil Filter
Full-Flow Spin-On Protection for Doosan Daewoo and Heavy Duty Engines
ISO 16889 verified efficiency at 39 microns for superior engine safety.
Prevents oil drain-back to the sump, ensuring immediate start-up lubrication.
Industrial cellulose media designed to withstand high-pressure diesel cycles.
Verified 1 1/2-12 UN thread for a leak-proof seal on Doosan and Clarke blocks.
Technical Deep-Dive: Engine Lubrication Integrity
The Role of the 65.05510-5020B Oil Filter
An oil filter is the primary defense against abrasive friction within a diesel engine. The 65.05510-5020B is a full-flow spin-on unit designed to process the entire volume of oil before it reaches critical bearings and turbochargers. By capturing microscopic soot, carbon deposits, and metallic wear particles, this filter preserves oil viscosity and prevents premature engine failure.
Why Choose This Replacement?
Operators of Doosan Solar and Mega series equipment require filtration that can handle high flow rates without significant pressure drops.
- Structural Reliability: The 247 mm (9.72 inch) length provides an expanded surface area for maximum dirt-holding capacity.
- Global Interchangeability: Whether your manual specifies Fleetguard LF3716 or Donaldson P502464, this unit provides 1:1 functional and mechanical parity.
- Optimized Sealing: The 111 mm Gasket OD ensures a secure seat on the filter head, preventing external oil leaks.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Model Number | 65.05510-5020B |
| Filter Type | Full-Flow Oil Filter |
| Outer Diameter / Length | 115 mm (4.53 inch) / 247 mm (9.72 inch) |
| Thread Size | 1 1/2-12 UN |
| Efficiency (99% / 95%) | 39 micron / 27 micron |
| Anti-Drainback Valve | Yes |
| Media / Burst Rating | Cellulose / 100 psi (6.9 bar) |
| Gasket OD / ID | 111 mm / 98 mm |
Comprehensive OE & Cross Reference Network
Doosan Daewoo: 65.05510-5020B, 65-05510-5020, 65055105012, 65-05510-5017, 65055105017S, 6505510-50208, 24749052, 400404-00144, 650025319, 6650003012
Fleetguard: LF3716 | Donaldson: P502464 | HiFi: SO 6074 | Sakura: C-7942 | Wix: 57240 | Hengst: H357W | Inline: FL70019
SF Filter: SP 4695 | Filfilter: ZP 3322
Application Vehicles & Equipment
Solar 280, 330, 360, 400, 500 V LC; Mega 300, 400 III/V series.
DE 12 T/TI, P 126 TI, P 180 LE, P 222 FE/LE, PU 158 TI, SP 126 TI.
Clarke Fire (DQ6H), SDMO, Himoinsa, Teksan (TJ 450 DW5A).
Quality Standards
Our 65.05510-5020B oil filters are produced to meet strict E-E-A-T criteria. We utilize ISO 16889 test standards to verify micron efficiency, ensuring that every spin-on canister delivers consistent protection for Doosan P 126 TI-II and Solar 400 engines. The "Full-Flow" design guarantees that oil is never bypassed during normal operation.
Technical FAQ
Q: Is the 65.05510-5020B a direct replacement for Fleetguard LF3716?
A: Yes. It is functionally and mechanically identical to the Fleetguard LF3716, Donaldson P502464, and Wix 57240.
Q: Which Doosan Solar excavators use this filter?
A: This filter fits a wide range including the 280 III LC, 330 V LC, 400 V LC, and the 500 V LC models.
Q: What is the micron rating for the 65.05510-5020B?
A: It provides 99% efficiency at 39 microns and 95% efficiency at 27 microns.
Q: Does this filter include an anti-drainback valve?
A: Yes, it is equipped with a high-quality valve to ensure safe engine cold starts.
Bulk Procurement & Support
"Protect your heavy equipment investment with AYREST high-efficiency filtration."
- ✔️ Wholesale Orders: Competitive pricing for fleet managers and distributors.
- ✔️ Stock Availability: Massive inventory for Doosan Daewoo and industrial engines.
- ✔️ Technical Assistance: We can verify fitment for your specific serial number.
