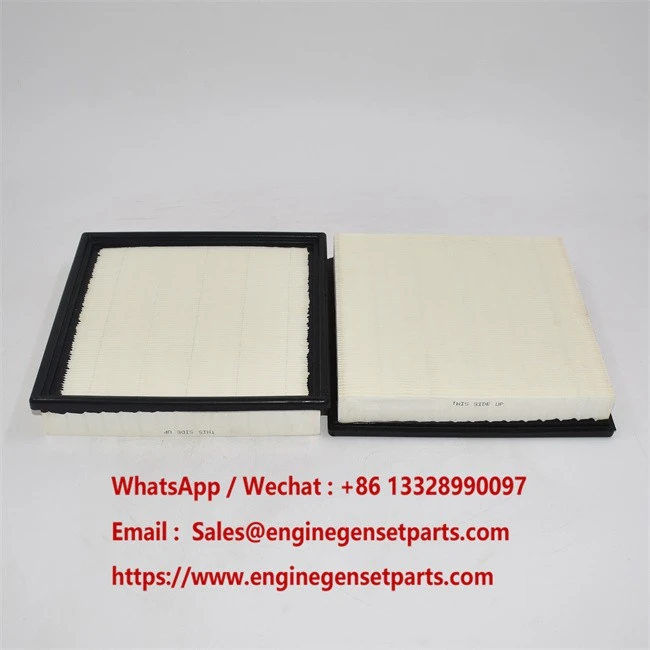

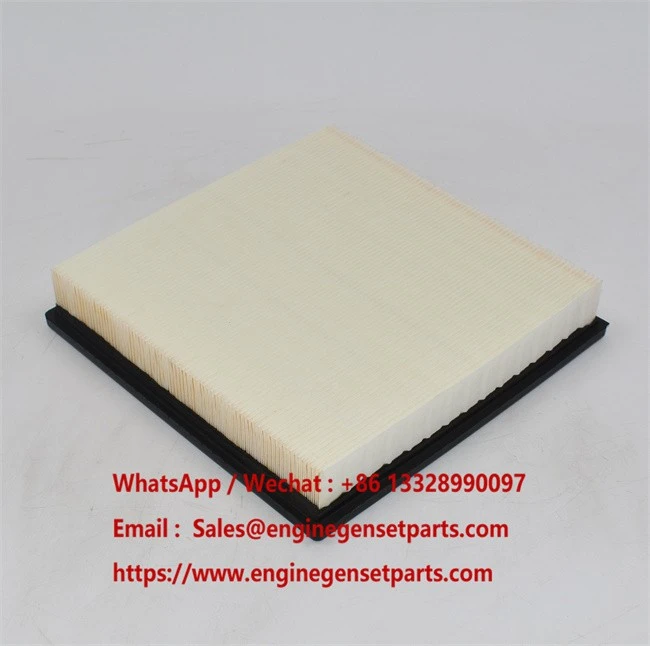

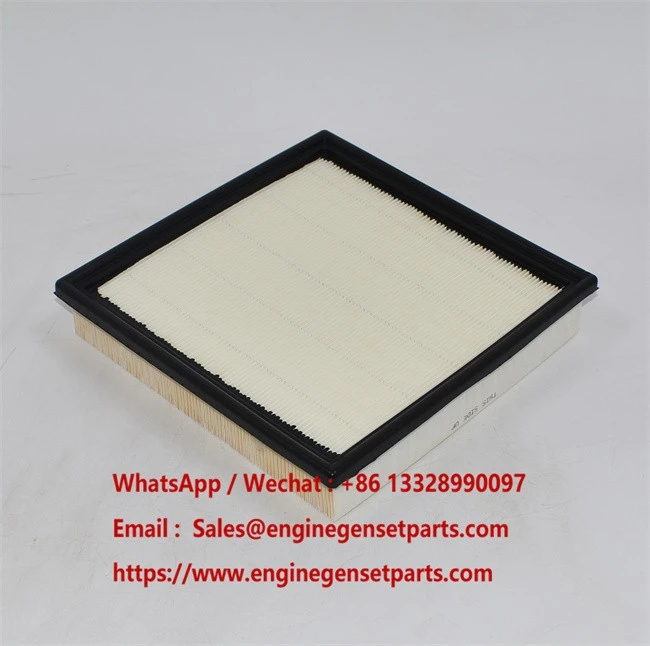

Cabin Air Filter RE593819 For John Deere Tractors
Product Description
Cabin Air Filter RE593819 For John Deere Tractors safeguards cabin air quality across high-horsepower agricultural machinery. Featuring precise dimensions of 248.0 mm length and 45.0 mm height, its high-density synthetic media traps fine agricultural dust, protecting A/C evaporators while ensuring operator comfort during intense field operations.
Core Strengths
- High-Efficiency Particulate Media: Traps micro-dust, soil particles, and crop chaff to maintain a clean cabin environment.
- Reinforced Perimeter Seal: Flexible elastomeric outer gasket creates a snug, airtight fit within the HVAC filter housing.
- Dimensional Precision Casing: Engineered according to strict OEM specifications to prevent media deformation under air blower pressure.
- Heavy-Duty Equipment Fitment: Purpose-built for high-horsepower John Deere 8R, 8RX, and 9RX series tractors.
Technical Specifications
| Style | CABIN AIR FILTER |
| Dimension 1 (D1) | 248.0 mm |
| Dimension 2 (D2) | 239.0 mm |
| Dimension 3 (D3) | 245.0 mm |
| Height 1 (H1) | 45.0 mm |
| Height 2 (H2) | 36.0 mm |
OE Reference & Application Scenarios
| OE / Cross Reference Numbers | John Deere RE593819, HiFi Filter SC 90482 |
| Application Scenarios | Driver cabin fresh air and recirculation filtration for heavy-duty agricultural tractors operating in dusty farming and field environments. |
Vehicle & Equipment Applications
- JOHN DEERE: 8R 440, 8R 490, 8R 540, 8RX 310, 8RX 340, 8RX 370, 8RX 410, 8RX 440, 8RX 490, 8RX 540, 9RX 490, 9RX 540, 9RX 590, 9RX 710, 9RX 770, 9RX 830
Installation Guide
- Step 1: Access Housing: Locate and open the tractor's cabin air filter access panel or tray assembly.
- Step 2: Remove Old Filter: Carefully extract the used, dirty cabin filter element to avoid spilling accumulated dust inside the cabin air duct.
- Step 3: Clean Housing Tray: Wipe down the internal filter housing frame with a damp cloth to clear out loose debris.
- Step 4: Install New Filter: Slide the new RE593819 filter into position, paying attention to the directional airflow arrows on the frame side.
- Step 5: Secure Panel: Latch the access cover back in place tightly to ensure a complete peripheral seal.
Target Market
- Global Agricultural Machinery Distributors: Ideal for international agricultural equipment parts wholesalers seeking OEM-quality aftermarket stock.
- Large-Scale Farm & Fleet Operators: Optimized for commercial agricultural operations utilizing John Deere 8R, 8RX, and 9RX tractor fleets.
- Regional Machinery Repair Centers: Suitable for specialized heavy-duty repair workshops and maintenance service providers.
Why Choose Us
- Factory-Direct Advantage: Cuts out intermediate trading markups to deliver high margin potential for distributor partners.
- 15+ Years Manufacturing Mastery: Over 15 years of dedicated manufacturing expertise in heavy machinery filtration products.
- Reliable After-Sales Warranty: Supported by full product quality assurance, responsive customer service, and fast global shipping logistics.
Frequently Asked Questions (FAQ)
Q1: What are the key outer dimensions of cabin filter RE593819?
This element features an overall length (D1) of 248.0 mm, width dimensions (D2/D3) of 239.0 mm / 245.0 mm, and a height of 45.0 mm (H1).
Q2: Which John Deere tractor models use cabin air filter RE593819?
It fits high-horsepower John Deere tractors including the 8R (440–540), 8RX (310–540), and 9RX (490–830) series.
Q3: What HiFi Filter part number interchanging matches John Deere RE593819?
It directly interchanges with HiFi Filter part number SC 90482.
Q4: Why is timely cabin air filter replacement important for tractor operators?
Replacing clogged cabin filters ensures proper cab pressurization, prevents A/C system strain, and protects operator respiratory health from fine dust.
Q5: Does the filter frame feature airflow orientation markings?
Yes, the filter frame includes clear directional indicators to guide correct installation relative to the HVAC blower system.
