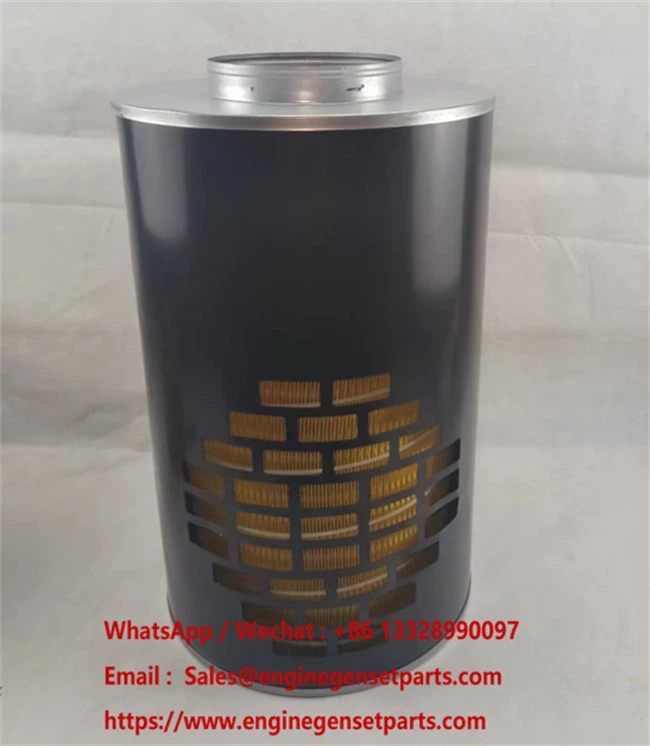

Air Filter 3I1034

High-capacity 3I-1034 air filter for Caterpillar engines and Cummins QSK 19 M. Replaces Fleetguard AH1135 and Donaldson P524838. Factory-direct B2B supply.

Send Inquiry

Chat Now

Air Filter 3I1578

Air Filter 3I1033

Description

China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of air filter 3i1034 in China. Welcome to wholesale original and genuine air filter 3i1034 from our factory. Contact us for cheap products and OEM service.

3I-1034 Heavy-Duty Air Filter

High-Flow Safeguard for Cummins QSK 19 M & Caterpillar Engines

3I-1034 Product Highlights

Zero-Leakage Radial Seal High-compression Radial Seal interface prevents bypass, ensuring only purified air enters the combustion chamber.

Synthetic-Blend Media Premium Synthetic Media intercepts micro-particulates, providing a critical barrier against abrasive "engine dusting."

Maximum Intake Stability Handles a Rated Flow of 1398 cfm (39.6 m³/min) while maintaining extremely low Intake Resistance.

Engine Safeguard Protects high-value turbochargers and cylinder liners from wear in high-vibration power generation environments.

3I-1034 Technical Specifications

The 3I-1034 is manufactured with rigorous adherence to Verified to OEM Standard Tolerances.

Parameter	Metric (mm / mbar)	Imperial (inch / H2O)	Technical Note
Model Number	3I-1034	3I-1034	High-Flow Series
Overall Length	655.32 mm	25.80 inch	Total Span
Outlet Diameter	177.8 mm	7.00 inch	Port Precision
Body Diameter (Max)	343.0 mm	13.50 inch	External Clearance
Rated Flow (HR)	39.6 m³/min	1398 cfm	High Volume Intake
Restriction (HR)	17.44 mbar	7 inch H2O	Lower Intake Resistance

Structural Protection: Proprietary mold development. Detailed 2D/3D CAD drawings for the 3I-1034 available upon formal inquiry.

3I-1034 Cross Reference: 100% Interchangeable

Eliminate downtime with our OEM Equivalent solution:

Caterpillar: 3I1034 Fleetguard: AH1135 Donaldson: P524838 Baldwin: PA2724 Wix: 546851 Cummins: 3050498 Hifi: SA16360

3I-1034 Key Advantages: Performance-Driven ROI

Deep-Pleat Technology → High DHC → Service Interval Extension: Optimized pleat count increases Dirt Holding Capacity (DHC), extending maintenance cycles.

Low Initial Pressure Drop → Optimized Airflow → Better Fuel Economy: Reduced restriction ensures complete combustion, enhancing Fuel Economy and lowering EGT.

Absolute Filtration Efficiency → Reduced Internal Wear → Lower TCO: Effective capture of 2-5 micron particulates reduces engine overhaul costs and Total Cost of Ownership (TCO).

Compatibility Matrix

Heavy Engines: Cummins QSK 19 M, Cummins ISX, CAT C15 series.
Industrial Equipment: GOTTWALD HMK 300, HMK 3406, HMK 5506 harbor cranes.
Gensets: SIMED 1000 KVA and large-scale GROUPE ELECTROGENE units.

Quality Assurance

15-year foundation. Compliance with ISO 5011 (Air) & ISO 16889. Mandatory 12-Point QC Inspection covering media permeability to final seal structural integrity.

Environment & Maintenance Protocol

Standard Environment: Industrial indoor settings; replace based on differential pressure.

Severe 工况 (Mining/Marine): High-dust/salt-spray sites require daily monitoring of Restriction Indicators.

⚠️ WARNING: STRICTLY PROHIBITED - Compressed Air Cleaning. Never "blow out" the 3I-1034. High-pressure air causes microscopic ruptures and catastrophic turbocharger failure.

Expert Perspective: Metal mesh support prevents "pleat migration" during high-velocity intake. Inferior filters with poor Beta Ratio equivalence can lead to valve erosion within 100 operating hours.

Direct Factory Procurement & Cost-Efficiency

Bypass markups. Get factory-direct 3I-1034 pricing and technical verification today.

[Get Bulk Quote]

Direct Supply | Free Cross-Reference Audit | Bulk Quotation Service
