China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of Hydraulic Oil Filter AM39653 in China. Welcome to wholesale original and genuine Hydraulic Oil Filter AM39653 from our factory. Contact us for cheap products and OEM service.

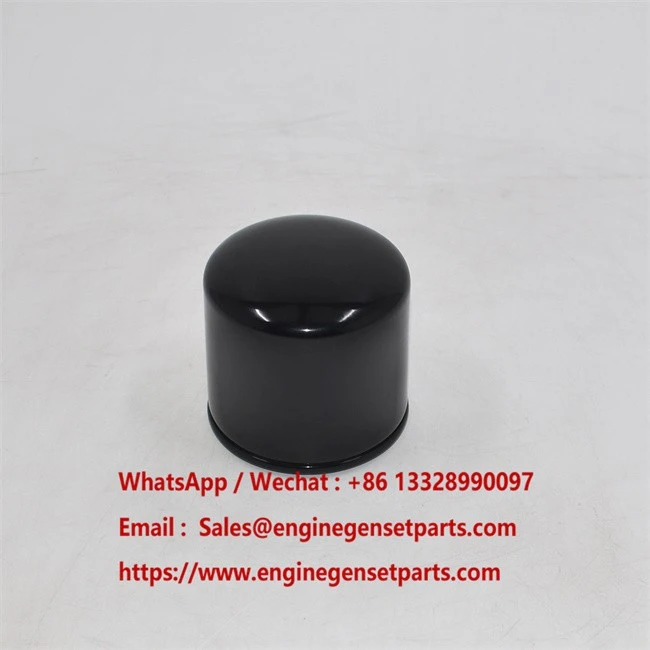

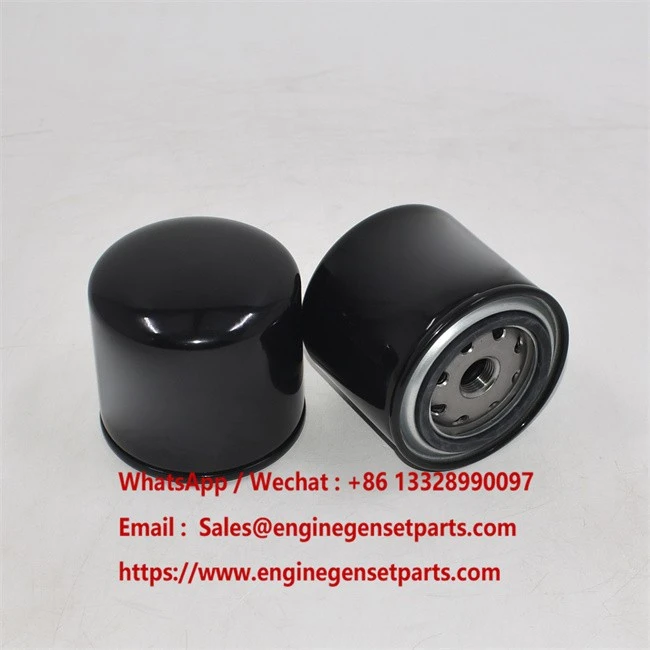

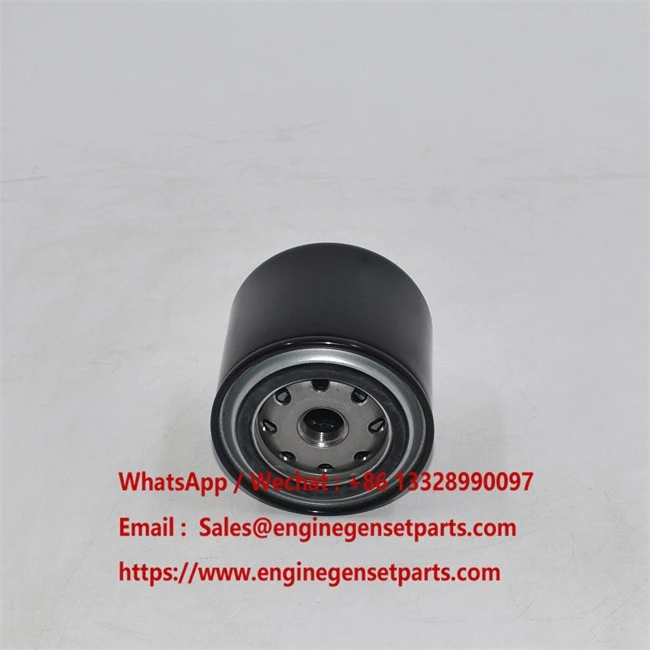

AM39653 Premium Hydraulic Spin-On Filter
Product Description
AM39653 premium hydraulic spin-on filter engineered to capture harmful particulates, maintaining high fluid cleanliness and reducing critical component wear. Serving as a direct OE replacement for John Deere, Fleetguard, Mann, and HiFi Filter systems, it features a heavy-duty spin-on steel canister for reliable, leak-free operation under demanding working conditions.
Product Specifications
| Part Number (MPN) | AM39653 |
| Filter Style | Hydraulic Spin-On Filter |
| Outer Diameter (D1) | 96.0 mm |
| Gasket Outer Diameter (D2) | 93.0 mm |
| Gasket Inner Diameter (D3) | 72.0 mm |
| Thread Size (D7) | 3/4"-16UNF |
| Overall Height 1 (H1) | 99.0 mm |
| Height 2 (H2) | 97.0 mm |
| Gasket Height (H3) | 4.0 mm |
| Minimum Order Quantity (MOQ) | 20 Pieces |
| Target Market | Agricultural Equipment Aftermarket, Lawn & Garden Machinery Repair Fleets, and Global Parts Distributors |
Product OE Cross-Reference
| John Deere | AM39653 / AM 39653 |
| Fleetguard | HF6446 |
| Mann Filter | WD 920 / WD920 |
| HiFi Filter | SH 56214 / SH56214 |
Application Information
ARIENS:
GT 18, GT 20, HT 16, S 16
BELL:
L 1204 E
BENFORD:
BF 2.65
BOLENS:
1660, HT 20
CUB CADET:
1250, 1340, 1450, 1650, 1782 W, 1860, 1862, 1882, 2130, 2135, 2182 W
HOWARD:
727
JOHN DEERE:
2243 D, 2243 E, 2653 A, 2653 E, 317, 330 D, 332 D, 524 P, 540 H, 544 G, 544 P, 605 K, 644 G, 655 K, 655 P, 750 K, 755 K, 755 P, 844 J, 850 K, F 925, F 935
RANSOMES:
MOTOR 213 D, RIDER ROTARY 48, RIDER ROTARY 61, RIDER ROTARY 74
SIMPLICITY:
9020
TORO:
520 LXI WHEEL, 523 DXI, GROUNDMASTER 217 D, GROUNDMASTER 220, GROUNDMASTER 220 D, GROUNDMASTER 223 D, GROUNDMASTER 224 D, GROUNDMASTER 225 D, GROUNDMASTER 228 D, GROUNDMASTER 322 D, GROUNDMASTER 327 D, GROUNDMASTER 3280 D, GROUNDMASTER 3320, GROUNDMASTER 52, GROUNDMASTER 62, GROUNDMASTER 72
ZF:
IRM 301 A-2, IRM 301 AL, IRM 301 PL, IRM 301 PL-2, IRM 302 VLD, OOP 1996, ZF 301 A, ZF 301 C, ZF 302 IV
Product Application Scenarios
- ▪ Agricultural & Turf Equipment: Widely used in commercial lawn mowers, turf care equipment, compact utility tractors, and golf course maintenance vehicles.
- ▪ Mobile & Light Industrial Equipment: Applied in hydrostatic drive systems and hydraulic return lines of mini loaders, dumpers, and compact construction machinery.
- ▪ Marine & Transmission Systems: Ideal for marine gearboxes and hydrostatic drive transmission circuits requiring spin-on oil filtration.
FAQ
- Q1: What is the main function of the AM39653 hydraulic spin-on filter?
- A1: It filters out solid particulates and contaminants from hydraulic and hydrostatic transmission fluids, protecting pumps and drive motors from wear.
- Q2: What are the thread size and outer dimensions of this spin-on filter?
- A2: It features a 3/4"-16UNF mounting thread, an outer diameter (D1) of 96.0 mm, and an overall height (H1) of 99.0 mm.
- Q3: What is the Minimum Order Quantity (MOQ) for this filter?
- A3: The minimum order quantity is 20 pieces.
- Q4: Which equipment brands use this hydraulic filter?
- A4: It fits lawn, garden, agricultural, and industrial equipment from John Deere, Toro, Cub Cadet, Ariens, Ransomes, Bolens, and ZF transmissions.
- Q5: Which OE and aftermarket part numbers correspond to this filter?
- A5: Compatible cross-references include John Deere AM39653, Fleetguard HF6446, Mann Filter WD 920, and HiFi Filter SH 56214.
