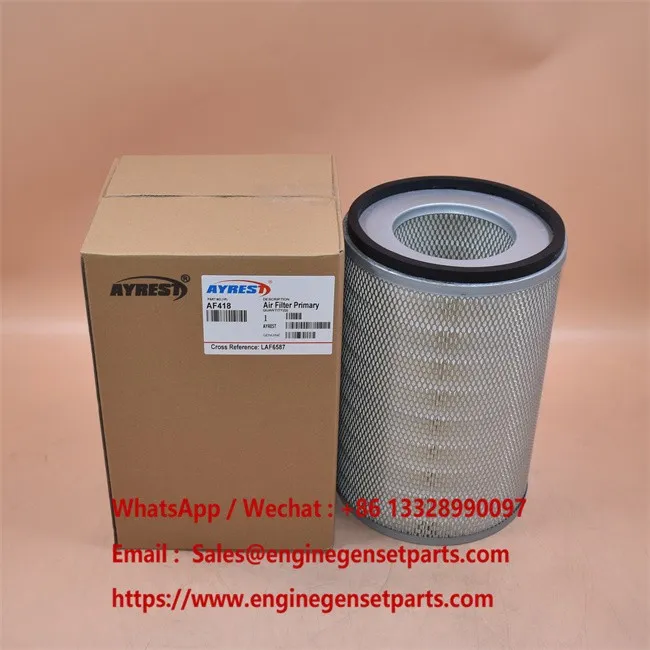

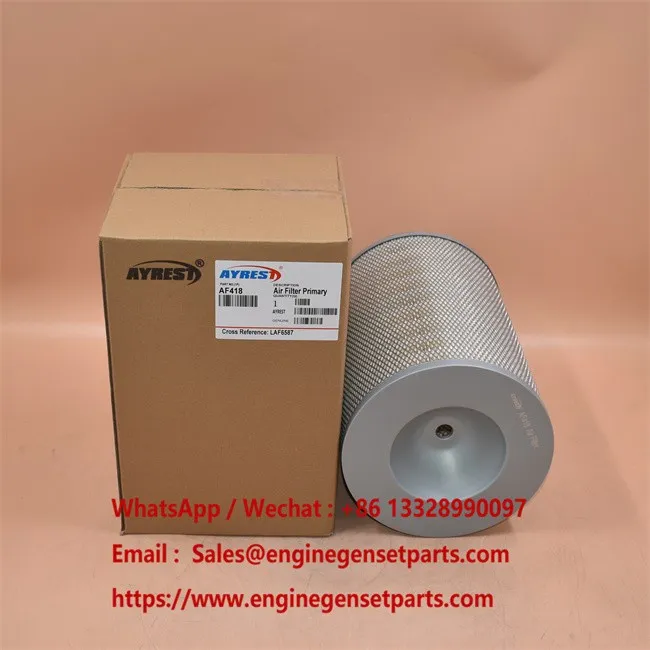

AF418 LAF6587 Air Filter

Air Filter LAF6587 delivers top-tier filtration security for heavy-duty industrial engines. This premium cylindrical filtration element effectively traps abrasive airborne dust, soot, and structural contaminants, ensuring sustained mechanical performance and extended engine service lifespans across demanding off-road operating environments.

Send Inquiry

Chat Now

AF434KM Air Filter

AF409K Air Filter

Description

China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of af418 laf6587 air filter in China. Welcome to wholesale original and genuine af418 laf6587 air filter from our factory. Contact us for cheap products and OEM service.

AIR
CORE

LAF6587 Air Filter

Heavy Fleet Filtration | Cross-Reference Standard

Technical Description

This LAF6587 Air Filter features an outer galvanized steel reinforcement cage protecting an advanced, high-efficiency media pleat matrix. Designed to sustain structural stability under massive vacuum loads, it minimizes restriction across intensive engine cycles while maintaining stable radial compression contact to block bypass grit, extending continuous heavy fleet uptime.

Key Performance Advantages

Rugged Steel Mesh Cage

Inner and outer corrosion-resistant metal grids provide ultimate structural rigidity, completely mitigating the risk of element collapsing under high-vibration and deep vacuum pressure.

Low Differential Pressure

Precision-calibrated pleat spacing maximizes active airflow surface area, ensuring unhindered induction volume while maintaining optimal particulate capture efficiency.

Leak-Proof Radial Contact

Tough elastomeric compounding boundaries establish a high-interference, tight friction fit against the canister shell to eliminate raw dust bypass vulnerabilities.

Extended Service Lifespan

Engineered to maximize the filter's Dirt Holding Capacity (DHC), preserving precise air-to-fuel balance parameters while guarding cylinders from premature scoring.

Technical Specifications

Filter Classification Air Primary Filtration Element

Outer Diameter (D1) 234.0 mm

Inner Diameter (D2) 123.0 mm

Top Hole Inner Diameter (D3) 17.0 mm

Total Assembly Height (H1) 341.0 mm

Internal Pleat Height (H2) 329.0 mm

Interchange Matrix / Cross-Reference: Fleetguard AF418, Luberfiner LAF6587, HiFi Filter SA 10368, Donaldson P181034, Mann Filter C 24 719

Industrial Applications & Vehicle Compatibility

Heavy Earthmoving & Tracked Excavation Fleet

Engineered to withstand high-concentration silica dust on heavy digging and mining sites, providing continuous protection for high-capacity hydraulic systems and engine blocks.

DOOSAN DAEWOO: DH 280, DH 320, Solar 280, Solar 280 III LC, Solar 330 III, Solar 400 III LC

LIEBHERR: A 902, A 912, R 902, R 912, R 916 LC LI Classic

LOVOL FOTON GROUP: FR 200-7, FR 210, FR 220, FR 230-7, FR 240, FR 260-7

FIAT / FIAT ALLIS: FE 18, FE 20, FE 24, FE 28, FL 10 C, FL 14 C, FL 14 D, FL 14 E, FL 28, FL 4 C, FR 15, S 11, SL 11, AD 10 C, AD 14 C, 645 B

ATLAS: AB 1704, AB 1704/LC, AB 1802 E, AB 1902 D

KOBELCO: K 912 A, K 912 LC, K 912 ALC, K 914

MITSUBISHI: MS 220-2, MS 230-3

BUCYRUS: 38 RB, 38 RB series

CASE: 115 CL, 115 P, 125 CK, 125 P, 1440, 160 CL, 160 P, 1640

HALLA: HA 290, HE 220 LC

HITACHI: UH 121, E 10

Agricultural Harvesting & High-Clearance Spraying Assets

Optimized for agricultural environments prone to heavy chaff, dry organic debris, and chemical mist, ensuring unhindered airflow during intensive harvesting seasons.

NEW HOLLAND: 1500, TR 70, TR 75, TR 85, TR 86 professional grain separators

CHALLENGER: 1253, Rogator 663, Rogator 664, Rogator 844, Rogator 854 crop sprayers

CASE: Patriot 150 crop sprayers

LAVERDA: 3600, 3700 combine systems

HUERLIMANN: H 6130, H 6160 Turbo agricultural tractors

FIAT: 1180, 1280, 1380 tractors

JCB: Fastrac 110, 115, 125, 130, 135, 145, 150 T, 155 T 30 high-speed tractors

Infrastructure Logistics, Wheel Loaders & Materials Handling

Maintains reliable intake filtration during high-vibration aggregate handling, heavy lifting, and urban environmental sweeping operations.

JCB Loaders: 418, 426, 426 ZX, 430, 436, 436 B, 806, 806 B, 807, 807 B, 807 BT, 808, 814 S, 816 S, 817, 818, 818 S, 820, 820 D, 820 S

DOOSAN DAEWOO Loaders: Mega 250 III, Mega 250 V, Mega 300, Mega 300 III

KOMATSU: WA 250-1 KC wheel loaders

CLARK: 75 B, 75 C heavy loaders

FIAT / FIAT ALLIS: FG 75, FG 85, FG 95 motor graders

CATERPILLAR: CB 534, CB 534 C asphalt compactors

MOXY: 5220/B, 5222, D 16 B articulated haulers

DULEVO: 5000 B, 5000 Evolution, 6000 industrial street sweepers

GROVE Mobile Cranes: AT 422 E/T, AT 528, AT 735, RT 59, RT 60, TMS 275 hoist complexes

COLES: 315 M logistics cranes

HITACHI: LX 210 E wheel loaders

Stationary Power, Pneumatic Compressors & Rock Drilling

Delivers stable volumetric flow rates under continuous full-load demand in mining exploration and portable infrastructure construction.

INGERSOLL RAND: ECM 470, ECM 580, LM 500 C tracked rock drill rigs

COMPAIR-HOLMAN: C 130, C 132, DS 132 pneumatic platforms

DEMAG: DS 100, DS 100-104, DS 130 power units

FLOTTMAN: Flottair 680 rotary air plants

FORD: C 2322, C 2422, Cargo 1215, Cargo 1216, Cargo 1415, Cargo 1416, Cargo 1422, Cargo 1617, Cargo 1622, Cargo 3224 vocational fleet trucks
