China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of 1328692 hydraulic filter in China. Welcome to wholesale original and genuine 1328692 hydraulic filter from our factory. Contact us for cheap products and OEM service.

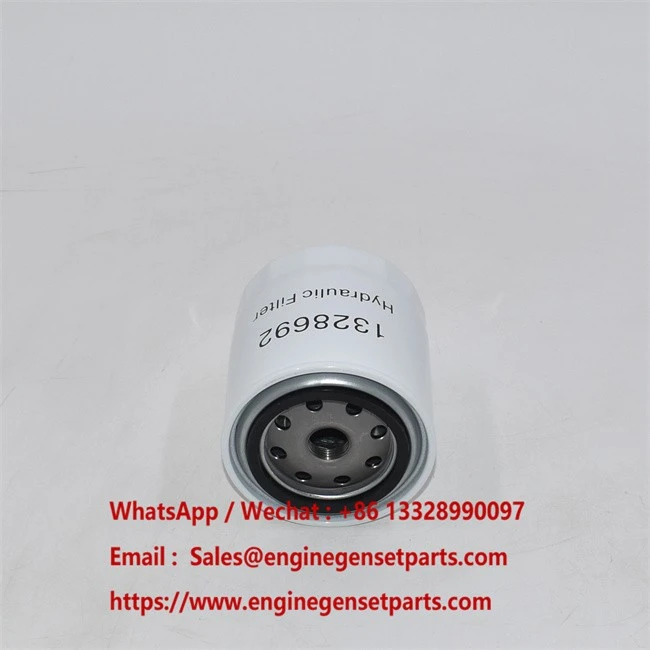

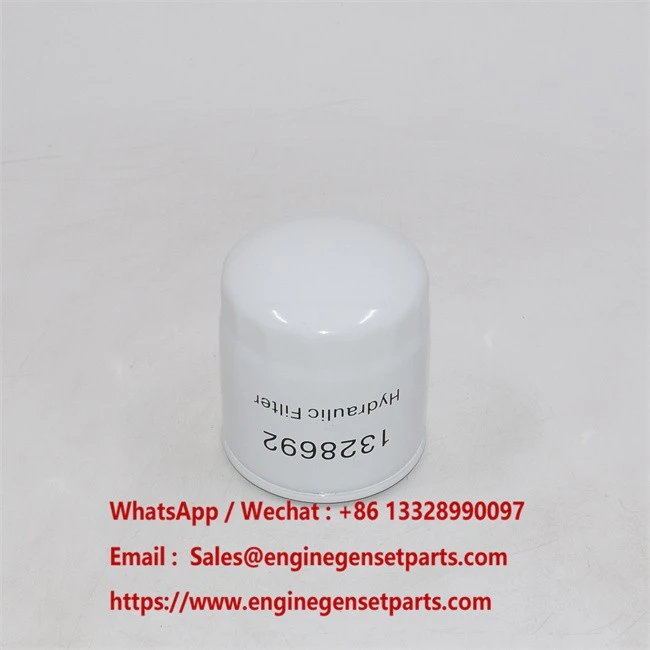

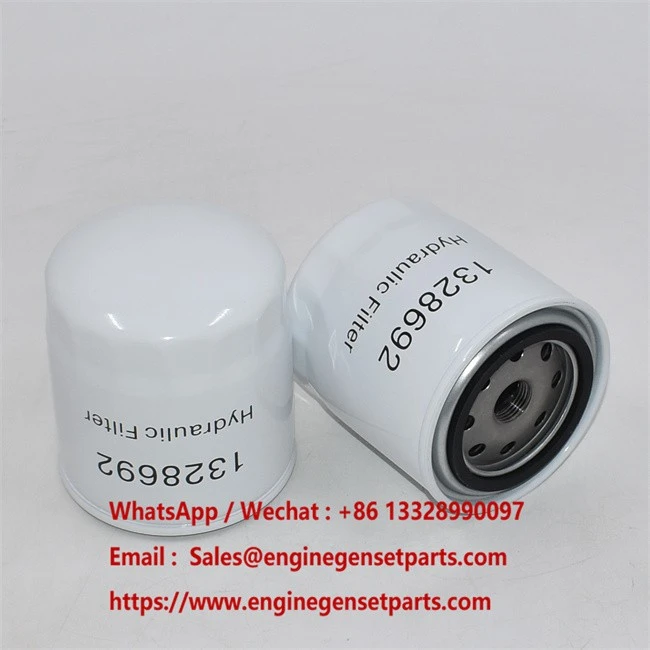

Hyster 1328692 Spin-On Hydraulic Oil Filter Replacement
Product Quality Assurance
- Precision Differential By-Pass Protection: Engineered with a calibrated 0.9 bar internal bypass relief valve and an integrated anti-drain back valve, maintaining continuous lubrication flow during cold system startups.
- Heavy-Gauge Canister Integrity: Constructed with a seam-rolled, heavy-duty steel shell designed to resist continuous pressure surges and high-impulse hydraulic fatigue.
- Industrial Standard Compatibility: Threaded with 3/4-16 UNF-2B connections and fitted with an oil-resistant elastomer gasket to provide a leak-proof seal across material handling fleets.
Technical Specifications
| Filter Property | Performance Specification |
|---|---|
| Filter Category | Spin-On Hydraulic Canister Filter |
| Primary OEM Part Number | Hyster 1328692 |
| Cross References | Donaldson P551758, Fleetguard HF6352, Mann WD 10 012, HiFi SH 56402 |
| Outer Diameter (Dimension A) | 94.0 mm |
| Gasket Inner Diameter (Dimension B) | 63.0 mm |
| Gasket Outer Diameter (Dimension C) | 72.0 mm |
| Thread Size (Dimension G) | 3/4-16 UNF-2B |
| Overall Height (Dimension H) | 113.0 mm |
| Wholesale MOQ | 20 Units |
Frequently Asked Questions (FAQ)
Q1: Which forklift and machinery brands utilize the 1328692 hydraulic filter?
This spin-on filter is widely fitted on material handling and agricultural machinery, including Hyster (H1.50-3.50XL/XM series, D50DP), Jungheinrich (DFG/TFG series), Yale (GDP/GBP series), Kalmar (DCD100, DCD55-6), Toyota (42-4 FG 20), and Mahindra tractors (5520, 6520, 7060, MPower series).
Q2: Is the Hyster 1328692 interchangeable with Fleetguard HF6352 and Donaldson P551758?
Yes, it serves as a direct cross-reference replacement for Fleetguard HF6352, Donaldson P551758, Mann Filter WD 10 012, and HiFi Filter SH 56402, matching identical thread pitches and seal diameters.
Q3: What is geospatial significance of the 0.9 bar bypass valve in this filter?
The integrated 0.9 bar bypass valve protects hydraulic circuit lines from starving by allowing fluid recirculation if the filter element becomes restricted due to cold oil viscosity or contaminant saturation.
Q4: What is the Minimum Order Quantity (MOQ) for international bulk buyers?
Our baseline export Minimum Order Quantity (MOQ) is 20 pieces, supporting palletized freight for spare parts distributors.
Q5: How can I request a direct factory quotation?
Submit your order details to our international trade desk via email at Sales@enginegensetparts.com or message via WhatsApp / WeChat at +86 13328990097.
