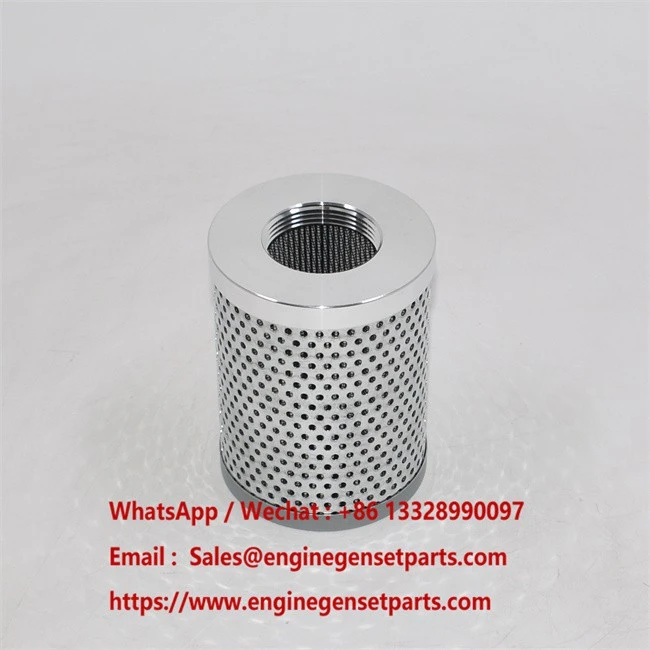

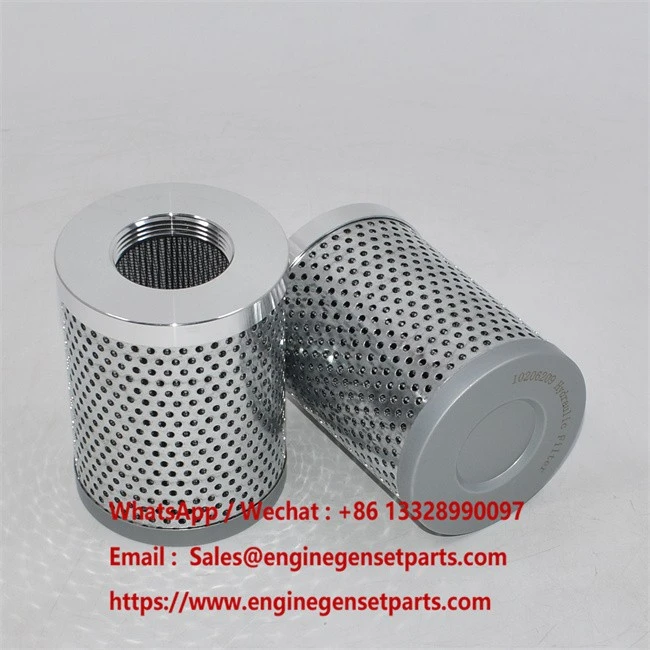

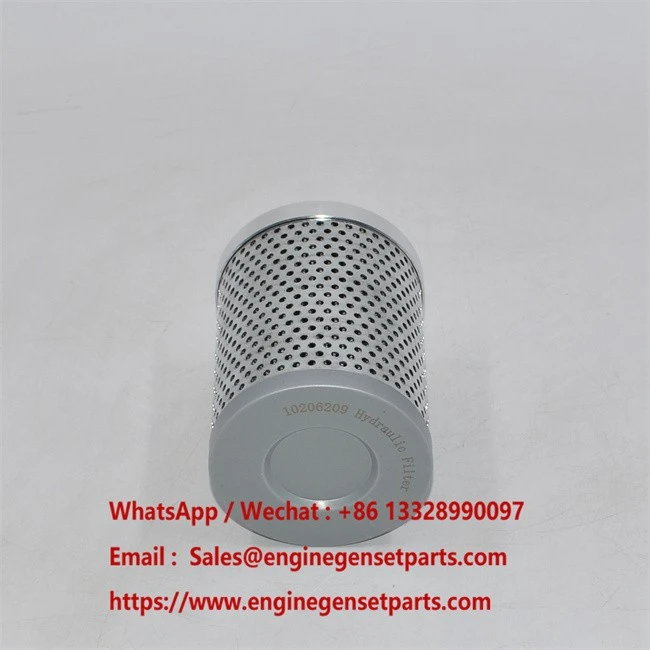

Schwing 10206209 High-Pressure Hydraulic Element for Concrete Boom Pumps
Product Quality Assurance
- 1"1/2-NPTF Precision Threaded Port: Machine-cut 1-1/2 NPTF internal threaded end cap ensures a leak-tight connection under extreme pressure spikes in boom pump lines.
- Galvanized Perforated Outer Guard: Built with a heavy-gauge steel casing that provides maximum structural rigidity against fluid surges, preventing media collapsing during heavy operation.
- Industrial Micro-Glass Composite Media: Multilayered synthetic glass fiber paired with wire mesh backing intercepts micro-debris, protecting proportional valves and hydraulic pumps.
Technical Specifications
| Parameter Standard | Operational Specification |
|---|---|
| Component Category | High-Pressure Hydraulic Element |
| Primary OEM Part Number | Schwing 10206209 |
| Interchange Reference | HiFi Filter SH 62358 |
| Outer Diameter 1 (D1) | 90.0 mm |
| Outer Diameter 2 (D2) | 90.0 mm |
| Thread Connection (D7) | 1"1/2-NPTF (1.5 Inch NPTF Thread) |
| Overall Height (H1) | 116.0 mm |
| Flange Height (H2) | 6.0 mm |
| Minimum Order Quantity (MOQ) | 20 Units |
| Service Interval | 500 – 1000 Operating Hours |
Frequently Asked Questions (FAQ)
Q1: Which machinery models utilize the Schwing 10206209 hydraulic filter?
This high-pressure element is specifically engineered for Schwing S 39 SX concrete boom pumps and mobile pumping units.
Q2: Is this element a direct cross-reference for HiFi Filter SH 62358?
Yes, it is a 100% direct dimensional match for HiFi Filter SH 62358, featuring identical 1-1/2 NPTF threading and a 90mm outer diameter.
Q3: Why is high impulse resistance necessary for concrete pump hydraulic filters?
Concrete pumps experience severe fluid pressure pulsations during valve switching and pumping cycles; the reinforced outer mesh prevents structural fatigue.
Q4: What is the wholesale Minimum Order Quantity (MOQ) for export?
Our standard minimum order quantity for wholesale orders is 20 pieces, with options to consolidate multiple part numbers in pallet shipments.
Q5: How can I place a bulk inquiry for factory pricing?
Inquiries can be submitted directly to our international trade department at Sales@enginegensetparts.com or via WhatsApp / WeChat at +86 13328990097.
