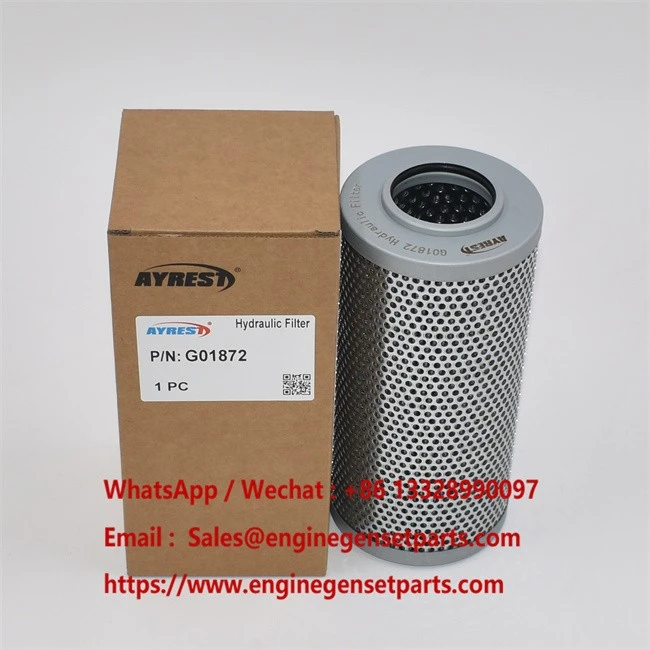

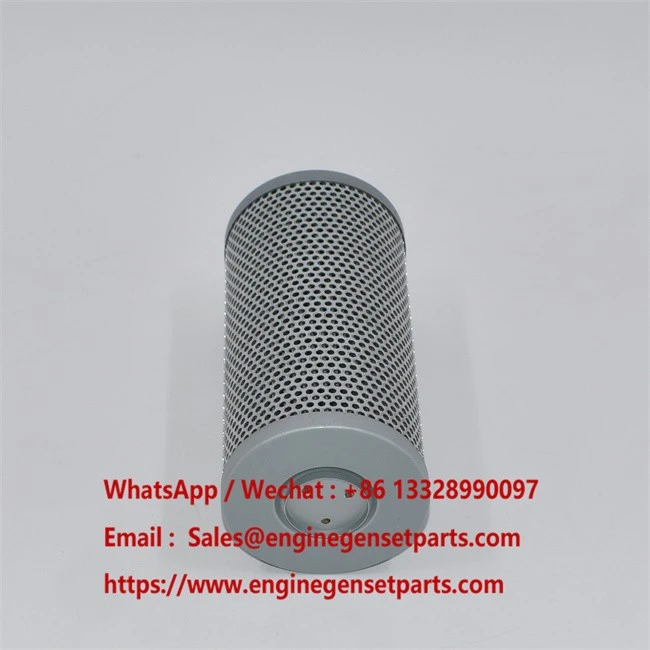

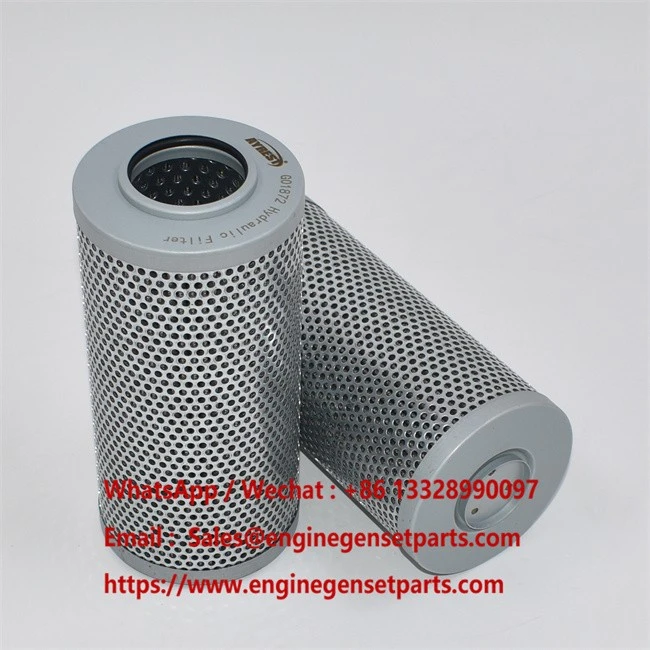

G01872 Aftermarket Hydraulic Pressure Filter
Premium High-Pressure Circuit Contamination Control for Kalmar & Moxy Machinery
Product Overview
The G01872 Aftermarket Hydraulic Pressure Filter is engineered to combat high-pressure circuit contamination in heavy-duty machinery, including Kalmar forklifts and Moxy articulated haulers. Built with high-density glass fiber media, it actively removes microscopic debris, silt, and wear metals before they reach downstream control valves. By preventing premature component scoring, stabilizing fluctuating actuator speeds, and safeguarding control precision, it delivers reliable fluid protection under continuous, heavy-load lifting and steering cycles.
Technical Specifications
| Parameter | Specification Details | Technical Note / Feature |
|---|---|---|
| Style | Pressure Line Filter Cartridge | High-pressure fluid protection element |
| Filter Media | High-Efficiency Micro-Glass Fiber | Multi-layer structure for deep particle retention |
| Filtration Efficiency 1 | 20 μm @ β ≥ 200 | Standard filtration efficiency rating |
| Filtration Efficiency 2 | 22 μm @ β ≥ 1000 | Ultra-clean fluid performance rating |
| Outer Diameter | 93.5 mm | Precise structural dimensions |
| Inner Diameter | 48.6 mm | Internal fluid passage clearance |
| Length | 199.0 mm | Overall element height |
| Flow Direction | Out-to-In (Standard) | Protects inner core under high-pressure operation |
| Collapse Pressure Rating | 25 bar (362 psi) | Heavy-duty structural burst resistance |
| Seal Material | Nitrile (NBR) | Standard sealing material (Viton option available) |
| Temperature Range | -30°C to +100°C | Stable operation in extreme environments |
| Fluid Compatibility | Mineral Oils, Petroleum-Based | Compatible with standard hydraulic fluids |
Quality & Performance Standards
To ensure OEM-equivalent performance under severe working pressures, this element is manufactured and tested in accordance with international ISO standards:
- ■ISO 2941: Element Collapse / Burst Resistance Verification
- ■ISO 2942: Fabrication Integrity and Bubble Point Test
- ■ISO 16889: Multi-Pass Performance Testing for Filtration Efficiency and Dirt Holding Capacity
Cross-Reference
| Brand / Manufacturer | Cross-Reference / OE Part Number |
|---|---|
| Parker | G01872 |
| Donaldson | P173042 |
| Fleetguard | HF30724 |
| HiFi Filter | SH 56162 |
| Filtrec | D931G25AM |
| MicroFit | MFHLP31089 |
Equipment Applications
This precision-constructed high-pressure hydraulic filter element is designed to provide clean fluid mechanics across targeted industrial platforms and specialty fleet vehicles:
- 🚛KALMAR Logistics Equipment: Tailored to maintain system integrity for high-capacity heavy forklift and container handling models, including DC 16-900, DCD 120-12, and DCD 200-12.
- 🚛MOXY Articulated Haulers: Engineered for severe duty-cycle off-road trucks to ensure stable steering and dump bed hydraulics on models 6225, 6225 B, 6226 B, and 6227 B.
- 🏗️COLES Mobile Cranes: Fits specialized handling hydraulics on mobile infrastructure crane platforms like the COLES M 50.
- ⛏️EJC Mining/Tunneling Units: Engineered to withstand demanding underground operational stresses for specialized EJC 417 mechanical builds.
- 🚜HYMAC Earthmovers: Provides reliable low-micron filtration support for vintage hydraulic systems such as the HYMAC 580 C crawler excavator.
- ⚙️PTC Equipment: Fits targeted auxiliary hydraulic functions found on PTC 17 HFV heavy industrial equipment setups.
