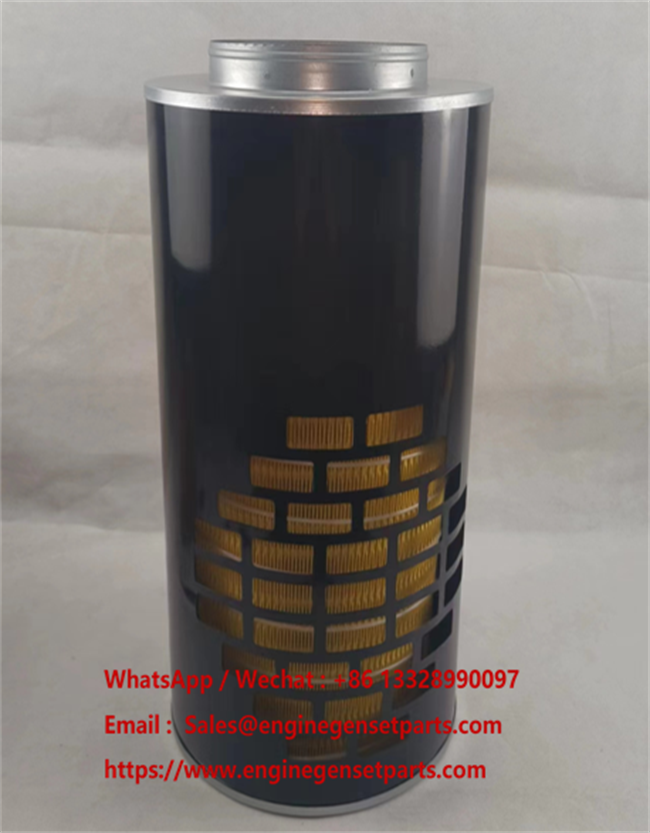

7C-8339 Heavy-Duty Air Induction System
A mission-critical primary air filtration element engineered for high-displacement power plants, including the Caterpillar 3406/3408 and Cummins N14/ISX series. Designed for peak volumetric efficiency in high-vibration industrial environments.
Engineered Precision Highlights
The Physics of Absolute Contaminant Sequestration
Unlike standard aftermarket filters, the 7C-8339 utilizes a multi-layered synthetic blend matrix. This media operates on the principles of interception, inertial impaction, and diffusion to trap microscopic silica particles as small as 2-5 microns. In heavy-duty diesel applications, even a few grams of dust can cause irreversible erosion of piston rings and cylinder liners. Our deep-pleat geometry maximizes the effective filtration area, resulting in a higher Dirt Holding Capacity (DHC) and extended operational uptime between service intervals.
Verified Engineering Benchmarks
Manufactured in strict compliance with Verified to OEM Standard Tolerances for 1:1 interchangeability.
| Technical Parameter | Metric Value (mm / mbar) | Imperial Value (inch / H2O) |
|---|---|---|
| Model Designation | 7C-8339 | 7C-8339 |
| Overall Total Length | 647.7 mm | 25.50 inch |
| Body Exterior Diameter | 279.4 mm | 11.00 inch |
| Outlet Connection (ID) | 177.8 mm | 7.00 inch |
| Inlet Connection (ID) | 228.0 mm | 8.98 inch |
| Maximum Rated Airflow | 34 m³/min | 1201 cfm |
| Differential Pressure (Clean) | 14.95 mbar | 6 inch H2O |
IP & Engineering Asset Note: The 7C-8339 housing utilizes 15 years of proprietary mold R&D. Comprehensive 2D/3D CAD datasets are accessible to authorized fleet partners following verified technical inquiry.
Cross-Reference & OEM Compatibility
Our 7C-8339 is validated as a high-performance equivalent to the following industry standards:
Industry Applications
The 7C-8339 is specialized for high-duty cycles in Logistics (Freightliner FLD Series), Agricultural Machinery (Case IH harvesters), and Maritime Auxiliaries. It is also a preferred solution for 1000KVA+ Power Generation units utilizing Cummins KT1150 or Detroit Diesel 8V92 platforms, providing stable filtration across arid construction zones and high-humidity maritime ports.
Critical Maintenance Protocol
Mandatory Warning: Do not attempt to clean the 7C-8339 with high-pressure compressed air. This causes microscopic fiber ruptures that destroy the absolute filtration rating, leading to catastrophic engine dusting. Replace based on vacuum gauge indicators (typically at 20-25" H2O restriction).
ISO 5011 Performance Verification
Our manufacturing process integrates a 12-Point Quality Control Audit. From media permeability testing to final seal compression analysis, every 7C-8339 unit is built to exceed ISO 5011 air intake standards, guaranteeing structural rigidity under peak vacuum pulses.
Technical FAQ
Q: What is the risk of using a lower airflow rating filter?
A: Using a filter rated below 1201 cfm increases intake restriction, leading to an over-rich fuel mixture, elevated Exhaust Gas Temperatures (EGT), and potential turbocharger surging.
Q: Is the 7C-8339 validated for Detroit Diesel engines?
A: Yes, it is specifically validated for the high-vibration requirements of 6V92 and 8V92 engines commonly found in Kenworth K100 series vehicles.
Q: How do environmental stressors impact service life?
A: In high-dust mining or desert environments, the Dirt Holding Capacity (DHC) may be reached sooner. Daily monitoring of the restriction indicator is recommended.
Factory-Direct Procurement Solutions
Eliminate middleman markups. Specialized in bulk fleet procurement and private labeling for global industrial distributors.
