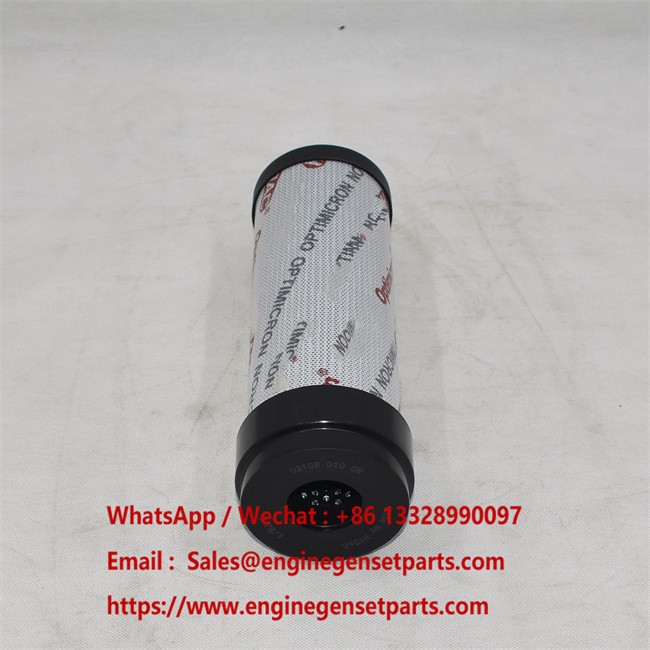

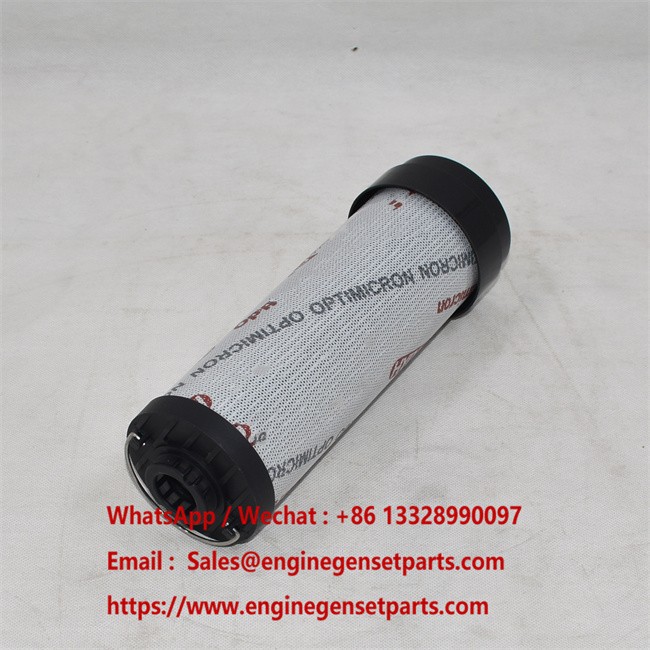

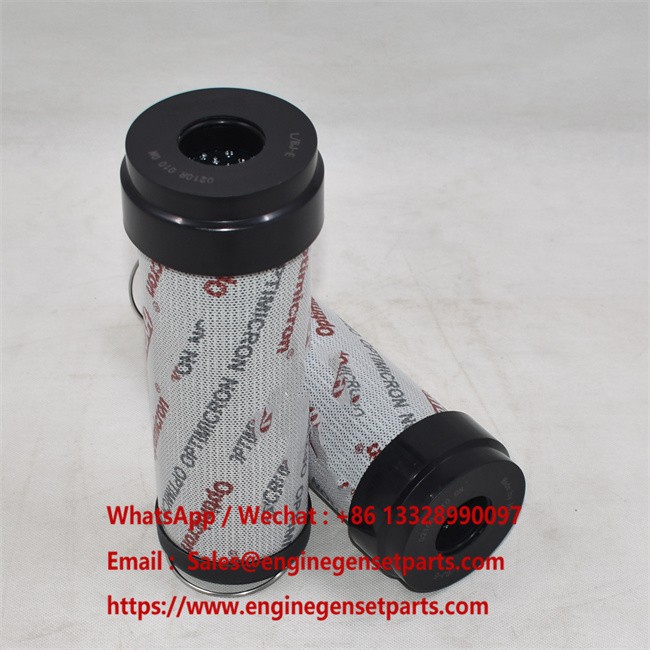

0210R010ON High-Performance Hydraulic Return Filter Element
Product Highlights
- Beta-Rated Precision: 10µ @ β200 efficiency ensures ultra-clean hydraulic fluid, protecting sensitive valves and pumps.
- Optimicron® Technology: Utilizes advanced glass fiber media for superior dirt-holding capacity and low pressure drop.
- High Collapse Resistance: Designed to withstand differential pressures up to 20 bar, preventing element rupture during cold starts.
- Broad Compatibility: Direct interchange for Hydac 0210R series and specialized Yale forklift hydraulic systems.
Product Overview: Precision Fluid Power Protection
A hydraulic return filter is designed to capture wear debris from system components before the fluid returns to the reservoir. The 0210R010ON utilizes multi-layered glass fiber media, which offers significantly higher efficiency and longer service life compared to standard paper elements.
By maintaining fluid cleanliness at the 10-micron level, this filter prevents the "sandblasting" effect of micro-particles on hydraulic cylinders and seals, directly reducing maintenance costs and unexpected machinery downtime.
Technical Specifications
| Feature | Specification Details |
|---|---|
| Filter Type | Hydraulic Return Line Filter |
| Filter Media | Inorganic Glass Fiber (Synthetic) |
| Micron Rating | 10µ (Absolute) |
| Filtration Ratio | β10c ≥ 200 / β12c ≥ 1000 |
| Outer Diameter | 88.0 mm |
| Inner Diameter | 40.1 mm |
| Overall Length | 277.0 mm |
| Bypass Pressure | 3.0 Bar |
| Collapse Pressure | 20 Bar (Δp) |
| Seal Material | Nitrile (NBR) |
| Operating Temp | -30°C to +100°C |
Cross Reference & Equipment Compatibility
OEM & Aftermarket Interchange
- Hydac: 0210 R 010 ON / 0210 R 010 SN
- Filtrec: RHR210G10B3 / AB1
- HiFi Filter: SH 74325
- Donaldson: P566671
Primary Application Equipment
- Yale Forklifts: GDP 40 VX 5 series and related high-capacity lift trucks.
- Industrial Hydraulics: Hydac return-line housings (RF, RFD, RFM series).
Industry Applications
- 🚚 Material Handling: Forklifts, reach trucks, and automated warehouse equipment.
- 🏭 Manufacturing: Injection molding machines and hydraulic presses.
- 🚜 Mobile Hydraulics: Construction machinery and agricultural equipment.
- ⚡ Power Units: Hydraulic power packs in industrial plants.
Quality Compliance
Our hydraulic elements are engineered to meet or exceed ISO 2941 (collapse/burst resistance) and ISO 16889 (Multi-pass method for evaluating filtration performance). The use of high-grade Nitrile seals ensures compatibility with all standard petroleum-based hydraulic fluids and HFA/HFB/HFC fluids.
FAQ
Q: What does the 10µ @ β200 rating mean for the 0210R010ON filter?
A: The "β200" rating indicates that this is an absolute-rated filter. It means that for every 200 particles of 10-micron size entering the filter, only one particle passes through. This represents 99.5% efficiency, providing high-level protection for sensitive hydraulic circuits.
Q: Can I use the 0210R010ON to replace a standard paper filter?
A: Yes, upgrading from paper (cellulose) to glass fiber (0210R010ON) is highly recommended. Glass fiber has a much higher dirt-holding capacity and is not affected by moisture in the oil, which can cause paper fibers to swell and restrict flow.
Q: When should I replace my Yale GDP 40 VX hydraulic filter?
A: Replacement is required when the back-pressure indicator on the filter housing enters the "red" zone (typically near the 3.0 bar bypass setting) or during standard 500 to 1,000-hour service intervals as defined by Yale maintenance schedules.
Q: What happens if the bypass pressure of 3.0 bar is reached?
A: If the filter becomes clogged, the 3.0 bar bypass valve opens to allow oil to return to the tank unfiltered. This prevents the element from collapsing but allows contaminants to circulate, so the filter must be replaced immediately when a bypass condition is signaled.
Q: Is this filter compatible with synthetic hydraulic oils?
A: Yes, the Nitrile (NBR) seals and synthetic glass fiber media are fully compatible with most mineral and synthetic-based hydraulic oils within the -30°C to +100°C temperature range.
