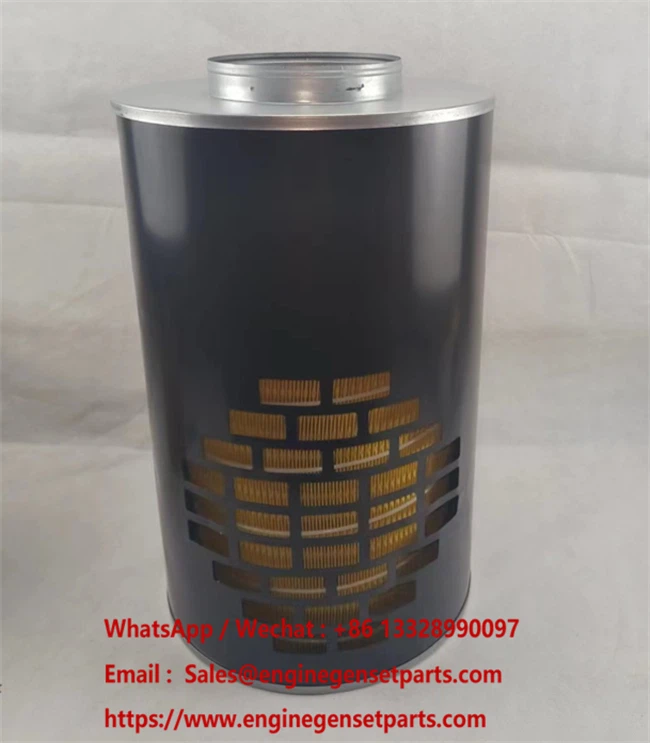

25177198 Air Filter

The 25177198 is a heavy-duty air induction element engineered for high-displacement industrial engines, featuring a reinforced canister design and multi-gradient filtration media to ensure maximum volumetric efficiency and zero engine dusting.

Send Inquiry

Chat Now

AH8503 Air Filter

Air Filter 25043580

Description

China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of 25177198 air filter in China. Welcome to wholesale original and genuine 25177198 air filter from our factory. Contact us for cheap products and OEM service.

25177198 Heavy-Duty Air Induction Filter

Engineered for CUMMINS QSK 19 M and Cummins QSK Power Units. Glass Fiber Reinforced Technology for 100% Zero-Leakage Induction.

Product Highlights: Engineering the Intake

Next-Gen Media Technology Moving beyond traditional cellulose, we utilize a Glass Fiber Reinforced synthetic blend that maintains structural integrity under high-vacuum pulses.

Radial Seal Integrity Engineered with high-elasticity gaskets that provide a 100% airtight seal against the housing, preventing unfiltered air entry.

Structural Durability Corrosion-resistant steel shell with a Spiral Center Tube design to resist collapse under extreme intake pressure surges.

Optimized Flow Dynamics Designed for high CFM requirements, ensuring turbocharged engines receive maximum oxygen without excessive parasitic drag.

Verified Technical Specifications

Our dimensions and performance metrics are optimized for maximum volumetric efficiency, ensuring a perfect match with original air cleaner housings.

Feature Description	Specification Details
Model Number	25177198
Overall Height	657mm
OD/Width (Max/Min)	344mm / 344mm
ID/Depth (Max)	178mm
Net Weight	10.06kg
Filtration Efficiency	99.9% (ISO 5011 Benchmarked)
Seal Type	Radial High-Performance Gasket
Media Type	Multi-Layer Synthetic/Glass Fiber Blend

Detailed 2D/3D CAD drawings are available exclusively to verified fleet buyers upon request.

Cross-Reference & OEM Compatibility

Eliminate equipment downtime caused by OEM backorders. Our 25177198 is a direct-fit alternative to:

GM: 25177198

Fleetguard: AH1135F

Donaldson: P524838

Caterpillar: 3I1034

Wix: 46851

Inline: FA10075

Reduce fleet maintenance costs by 30-40% without compromising engine structural health.

Core Product Advantages

Insurance for Critical Components: Our 25177198 intercepts micro-abrasive silica before it can reach the turbocharger, effectively preventing "engine dusting".

Extreme Environment Resilience: Engineered for Mining and Construction sites, performing reliably from -40°C to 50°C.

Extended Service Intervals: Capture contaminants throughout the depth of the material, extending replacement cycles by up to 25%.

Installation Peace of Mind: Verified against 1:1 OEM benchmarks for vacuum seal security on the first install.

Heavy Engine Support

CUMMINS

QSK 19 M

GOTTWALD

HMK 300

HMK 3406

HMK 5506

SIMED

1000 KVA

GROUPE ELECTROGENE

Operational Scenarios

High-Dust Zones: Stone crushing plants and open-pit mining operations.
Continuous Power: Ideal for stationary industrial generators (Kohler, Baudouin).

Maintenance & Risk Mitigation

Scientific Replacement: Do not rely on visual inspection. Replace only when the Restriction Indicator signals a vacuum threshold breach.

⚠️ Warning - Zero Blow-Out Policy:

Never attempt to clean with compressed air. High-pressure air creates micro-fractures in the synthetic media, risking immediate engine failure due to debris ingestion.

The Factory Advantage

By choosing our factory-direct supply, you bypass multiple layers of distribution markups. With 15 years of manufacturing heritage, we focus on the Total Cost of Ownership (TCO). Our filters reduce labor costs by lasting longer and protect your engine from the catastrophic expenses of unplanned overhauls.
