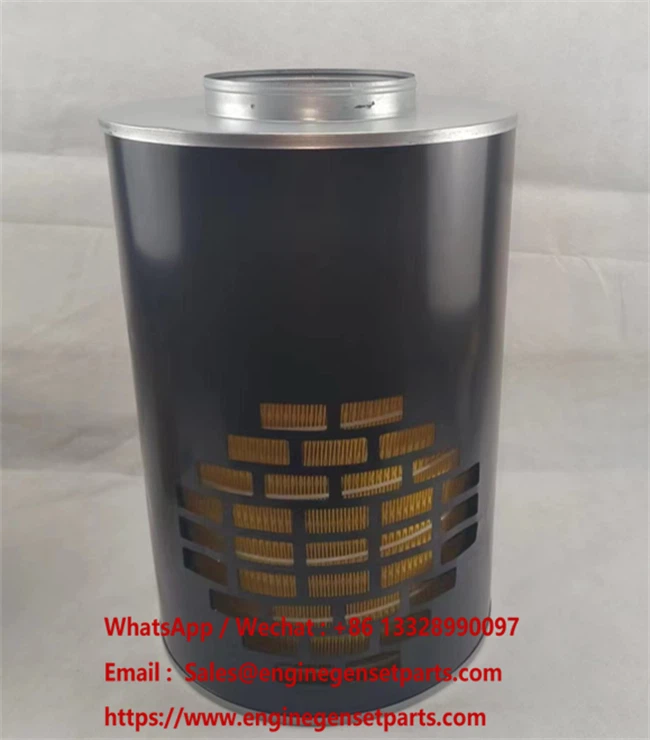

46849 High-Velocity Air Induction Filter
Engineered for Kohler ROZD Series Power Systems: Delivering 1501 cfm Volumetric Efficiency for Prime & Standby Power Generation.
46849 Product Performance Highlights
Solving Engine Dusting & Intake Resistance
Engine dusting and excessive intake resistance are the primary catalysts for turbocharger wear and fuel inefficiency in heavy industrial settings. An effective air filter must balance high-efficiency particulate removal with laminar airflow dynamics. The 46849 induction element provides a high-performance solution for Kohler ROZD generator operators who require absolute seal integrity and low pressure drop. By utilizing a high-surface-area pleated media, this element intercepts sub-micron contaminants that lead to scored cylinder liners and pitted compressor wheels.
The Engineering Advantage
Unlike standard aftermarket filters that often suffer from pleat bunching under high vacuum surges, our specialized 46849 features a structural support mesh that ensures a stable Beta ratio throughout its entire service life. We provide an industrial-grade alternative that matches the technical benchmarks of Donaldson P528722 and Fleetguard AH1183, resulting in a more competitive Total Cost of Ownership (TCO).
Equipment Application
Specifically validated for KOHLER Power Systems including:
- • 1250 ROZD
- • 200 ROZD
- • 450 ROZD
Industry Domains
46849 Technical Specifications
| Specification | Imperial Units | Metric Units |
|---|---|---|
| Model Number | 46849 | 46849 |
| Overall Length | 19.80 inch | 502.92 mm |
| Outlet Diameter | 7.00 inch | 177.8 mm |
| Body Diameter Max | 13.50 inch | 343.0 mm |
| Body Length | 18.00 inch | 457.2 mm |
| Rated Flow (HR) | 1501 cfm | 42.5 m³/min |
| Restriction (HR) | 7 inch H2O | 17.44 mbar |
| Filter Style | Disposable / Heavy Duty | Disposable / Heavy Duty |
46849 Absolute Interchangeability
Quality Control & Trust
With over 15 years of filtration manufacturing expertise, our 46849 elements are produced in accordance with ISO 5011 air induction standards. Every unit undergoes a comprehensive 12-point QC inspection, ensuring:
- ✓ Media Uniformity Analysis
- ✓ End Cap Bond Strength Testing
- ✓ Dimensional Verification (1:1 OEM)
- ✓ Synthetic Media Permeability Audit
46849 FAQ
Q: What is the rated airflow for the 46849 filter?
A: The 46849 is rated for 1501 cfm (42.5 cubic meters per minute), making it specifically suitable for large-displacement engines in power systems.
Q: Can I clean the 46849 air filter with compressed air?
A: No. It is mandatory to strictly prohibit blowing out the element. High-pressure air causes microscopic ruptures in the synthetic media matrix, compromising the engine protection system.
Q: When should I initiate a replacement for the 46849?
A: Operators should rely on the air restriction indicator. Replace only when the indicator reaches the service threshold to maximize Dirt Holding Capacity (DHC) and minimize waste.
Q: Is this filter cross-compatible with Volvo hardware?
A: Yes, it is a direct technical interchange for Volvo part number 22005-0016.
