LF16118 Spin-On Oil Filter

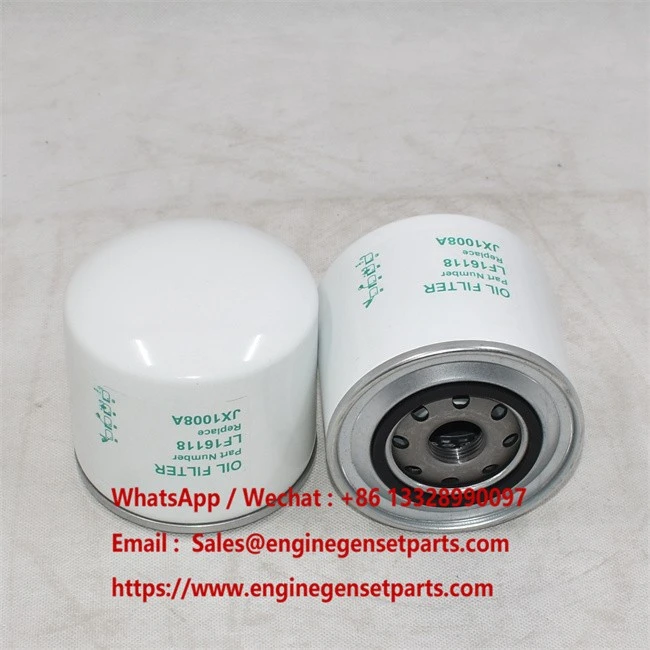

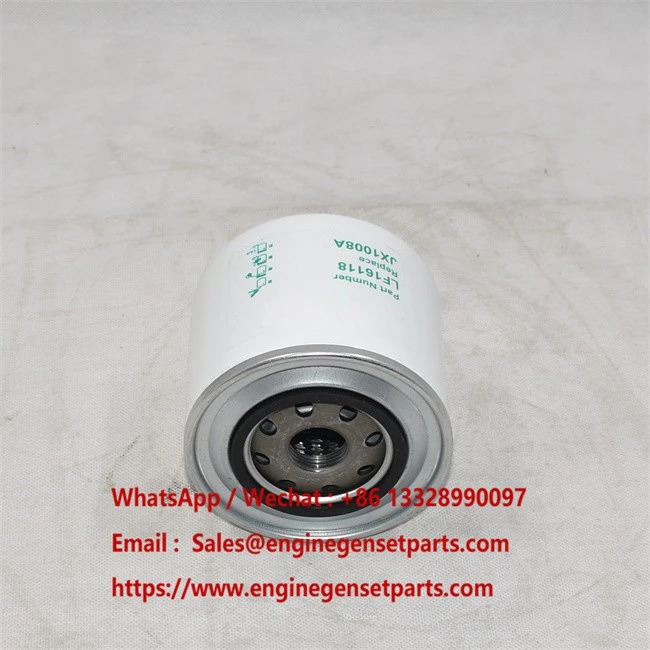

The LF16118 spin-on oil filter is engineered to deliver reliable zero-leakage performance under extreme operating pressures. Utilizing a high-integrity radial seal and an advanced multi-layered synthetic media network, it prevents unfiltered lubricant bypass to shield high-value engine components from accelerated wear. As shown in the product image LF16118 RAHC (4).JPG, the assembly is designed to eliminate internal contaminant damage, ensuring absolute component protection and preventing particle-induced degradation across demanding duty cycles.
| Engineering Parameter Index | Metric Measurement (mm) | Imperial Measurement (in) | Technical Quality Standard |
|---|---|---|---|
| Filter Configuration Style | Full-Flow Spin-On Oil Filter | Full-Flow Spin-On Oil Filter | Verified to OEM Standard Tolerances |
| Outer Diameter 1 (D1) | 110.0 mm | 4.33 in | Verified to OEM Standard Tolerances |
| Outer Diameter 2 (D2) | 108.0 mm | 4.25 in | Verified to OEM Standard Tolerances |
| Gasket Diameter 3 (D3) | 72.0 mm | 2.83 in | High-Resiliency Nitrile Compound |
| Mounting Connection Thread (D7) | 1"-12UNF | 1"-12UNF | Precision Machine Cut |
| Total Assembly Height (H1) | 110.0 mm | 4.33 in | Structural Shell Clearance |
| Canister Body Height (H2) | 107.0 mm | 4.21 in | Deep-Drawn Steel Casing |
| Base Seating Flange Depth (H3) | 6.0 mm | 0.24 in | Secure Header Engagement |
| Anti-Drainback Check Valve | 1 Unit (Silicone ADBV) | 1 Unit (Silicone ADBV) | High Thermal Resistance Rating |
| Internal Safety Bypass Valve | 1 Unit (Integrated) | 1 Unit (Integrated) | Calibrated Pressure Relief |
| Filtration Rating (Absolute) | 15 Micron ($\beta_{15} \ge 1000$) | 15 Micron ($\beta_{15} \ge 1000$) | ISO 4548 Multi-Pass Tested |
This industrial-grade lubrication element is 100% interchangeable with the following original equipment manufacturer designations and aftermarket equivalents, matching identical structural tolerances:
Advanced Synthetic Media Blend $\rightarrow$ High Dirt Holding Capacity (DHC) Extended Service Life
The premium filtration matrix captures ultra-fine carbon soot and metallic fragments down to an absolute micron rating without increasing initial restriction, safely expanding total oil drain intervals.
High-Resiliency Silicone ADBV $\rightarrow$ Eliminates Cold-Start Friction $\rightarrow$ Optimized Fuel Economy
The integrated silicone anti-drainback valve maintains a completely flooded filter canister during engine shutdown, ensuring immediate oil pressure upon restart and minimizing mechanical drag.
Heavy-Gauge Steel Casing $\rightarrow$ Superior Pressure Fatigue Resistance Low Total Cost of Ownership (TCO)
The robust outer shell contains high-pressure lubrication spikes during cold starts, preventing canister distortion or seal blowout to eliminate catastrophic field failures.
The LF16118 oil filter provides direct mechanical compatibility with the specified commercial machinery configurations, power generation systems, and specialized engine platforms listed below:
|
Chaoyang Engines
|
Dalian Engines
|
|
Genelec
|
King Long
|
|
Himoinsa
• 4 HD 38 NA5 • 4 HD 38 NA6 • HHW 35 • HHW 40 • HHW 50 • HHW 65 • HHW-65 T5
|
|
|
Kipor
|
RCG Power
|
Backed by a 15-year manufacturing heritage, our lubrication products undergo comprehensive quality validation tracking. Production parameters conform to the ISO 4548 international testing protocol for full-flow engine oil filtration systems, ensuring optimum multi-pass efficiency and structural endurance. Every manufacturing batch passes through a rigorous 12-point QC inspection checking thread accuracy, gasket elasticity, and canister burst strength prior to warehouse dispatch.
Standard Operating Conditions: Replace the LF16118 filter element at pre-determined engine hour intervals or when a restriction indicator alerts the maintenance staff.
Severe Operating Conditions (Mining & Heavy Construction): High ambient soot levels and sustained mechanical loads accelerate contaminant ingestion. Shorten service intervals by 30% to avoid media saturation.
Critical Service Warning: Used spin-on oil filters must be discarded and replaced completely. Strictly no blowing out with compressed air or solvent washing is allowed, as pressure grid impacts will rupture the internal synthetic pleats, destroying the filter's micron classification.
Structural engineering under heavy lubricant viscosity states requires robust internal reinforcement. The LF16118 utilizes a heavy-duty inner metal center tube designed to prevent media pleat bunching or collapse when cold oil generates high differential pressure across the element faces. For preventive maintenance, always inspect the discarded filter's face plate to confirm the old gasket has detached completely from the engine block; an overlooked dual-gasket installation will disrupt the radial seal, resulting in rapid oil pressure loss.
By sourcing directly from our factory production infrastructure, commercial operators bypass trading margins to secure wholesale pricing advantages on certified replacement elements. Contact us today for contract pricing profiles.
|
