Large-Displacement Industrial Lubrication Loop

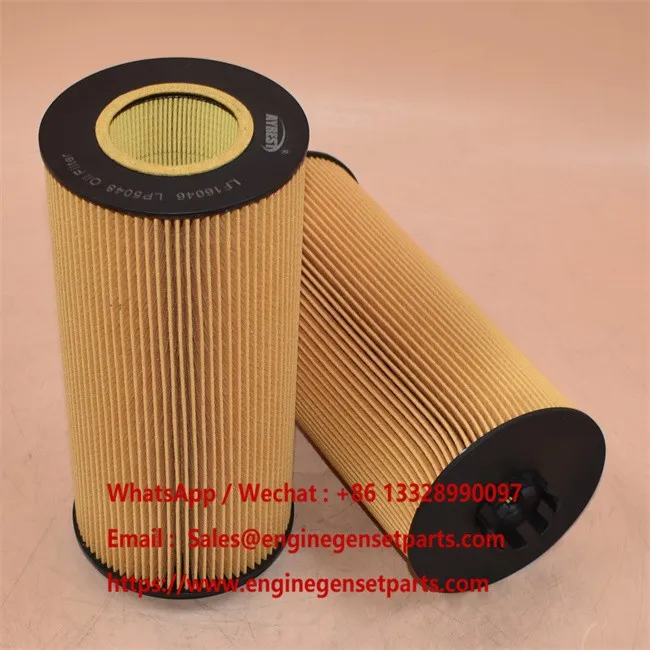

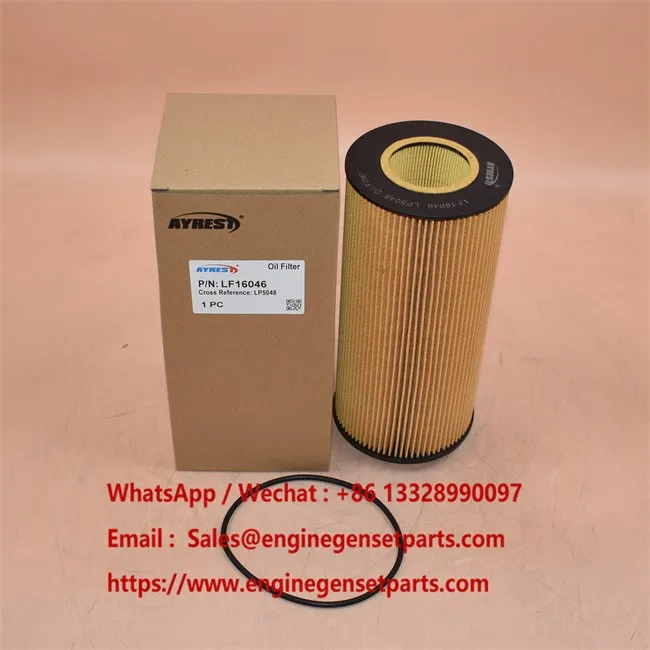

Eco-Element Oil Filter Cartridge LF16046
Technical Description
This eco-element oil filter cartridge is engineered to handle the intense thermal stresses and lubrication demands of large-displacement industrial diesel platforms. Constructed with an array of robust, high-density pleats, the media maximizes structural surface exposure to promote unhindered oil throughput while intercepting microscopic contaminants. Geometrically structured with a maximum outer diameter of 120.0 mm, an interior base opening of 53.0 mm, and an alternative inner channel measuring 44.0 mm, it fits tightly into dedicated engine oil modules without bypassing risks. With an absolute vertical height reaching up to 265.0 mm, this premium cartridge ensures high dirt-retaining capacity over long service schedules, preventing premature pressure drop spikes and supporting clean fluid supply to turbochargers and main crankshaft bearings under severe mechanical loads.
Advantages
■ High-Load Filtration Stability Features a robust internal support grid that keeps pleat spacing completely uniform, neutralizing media collapse risks from cold-start thick oil surges.
■ Precise Dimensional Sealing Crafted to specific dimensional standards (120.0 mm×53.0 mm×265.0 mm) to achieve an airtight physical boundary within the original housing assembly.
■ Soot and Sludge Abatement Utilizes a custom synthetic composite media structure optimized to trap carbon particulates and varnish precursors, slowing down oil oxidation and viscosity breakdown.
■ Reduced Component Friction By thoroughly removing fine mineral dust and microscopic wear metals, it preserves tight bearing clearances and safeguards timing gear systems from abrasive scouring.
Technical Specifications
| Parameter Profile | Engineering Data |
|---|---|
| Product Classification | Eco Element Oil Filter Cartridge |
| Part Identification | LF16046 |
| Outer Diameter (D1) | 120.0 mm |
| Inner Core Diameter 1 (D2) | 53.0 mm |
| Inner Core Diameter 2 (D3) | 44.0 mm |
| Total Assembly Height (H1) | 265.0 mm |
| Cartridge Body Height (H2) | 252.0 mm |
| Seating Surface Height (H3) | 251.0 mm |
| Primary Cross References | Fleetguard LF16046, HiFi Filter SO 7139 |
| Alternative Interchanges | Donaldson P550769, Mann Filter HU 12 110 x |
Target Applications & Vehicles
This heavy-duty oil filter kit accommodates an expansive assortment of logistics freight trucks, specialized earthmoving machinery, mass-transit coaches, and forestry processors running continuous high-load operations.
1. Commercial Hauling, Transit & Specialty Trucks
- Mercedes-Benz Commercial Vehicles: Extensive coverage for Axor highway transport units and vocational rig chassis (including Axor 1835, 1840, 1843, 2536 BlueTec, 2640, 3243 BlueTec 4+5 setups). Also covers the extreme off-road Zetros multi-axle truck series (2643 AS, 3343 AS).
- Mass Transit Coaches: Regional buses and luxury tourers, including Mercedes-Benz O 340 Tourismo, O 350 Tourismo II, O 560 Intouro, O 580 Travego variations, and MCV 500 / 600 systems.
- Kassbohrer-Setra Buses: TopClass and ComfortClass long-distance multi-axle passenger coaches (S 415 GT-HD, S 415 HDH, S 416 HDH, S 417 GT-HD, S 419 GT-HD).
- Kamaz Freight Trucks: Over-the-road prime movers like the Kamaz 5490 series.
2. Harvesters, Agricultural & Forestry Equipment
- Claas Forage Harvesters: Heavy-output silage equipment across the Jaguar line (Jaguar 830, 840, 850, 930, 960, 970, 980 series).
- Krone Processing Systems: Large agricultural mowers and forage processors including BiG M 400, BiG M II, and BiG X series (500, 800, 1000).
- Grimme Root Crop Harvesters: Self-propelled sugar beet and potato harvesting equipment (Maxtron 620, Rexor 620, Tectron 410).
3. Construction, Infrastructure & Mobile Crane Fleets
- Grove & Manitowoc Cranes: GMK all-terrain truck cranes (GMK 4100, GMK 4100-L) along with Manitowoc 15000 industrial crawlers.
- Hitachi Wheel Loaders: Heavy earthmoving machinery such as the Hitachi ZW 310 loader.
- Wirtgen Road Reclaimers: Infrastructure pulverizers and soil stabilizers, notably the Wirtgen WR 2000 setup.
- Doppstadt & Jenz Biomass Shredders: Industrial wood chippers, waste recyclers, and tub grinders (Doppstadt AK 435, AK 535, DW 3060 Büffel; Jenz AZ 660 D, HEM 561 D, BA 720).
4. Alpine Groomers & Power Systems
- Kassbohrer PistenBully & Prinoth: Specialized sub-zero snow grooming tractors (PistenBully 300 Polar, 600 Polar SCR Blue IQ; Prinoth Leitwolf LE / New Leitwolf series).
- Industrial Engines: Primary support for heavy industrial diesel blocks including Mercedes-Benz OM 457 LA and OM 460 LA engine configurations.
