PA3493 Air Filter

Secure your engine's longevity with our PA3493 disposable air filter, engineered for superior dust capture and optimized airflow in demanding heavy-duty environments.

Send Inquiry

Chat Now

PA3555 Air Filter For Heavy Duty Engines

PA2876 Heavy Duty Air Filter

Description

China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of pa3493 air filter in China. Welcome to wholesale original and genuine pa3493 air filter from our factory. Contact us for cheap products and OEM service.

PA3493 Air Filter

High-Performance Intake Solution | Advanced Filtration for Peak Engine Horsepower

PA3493 Product Overview

The PA3493 Air Filter is a high-performance, disposable-style intake solution designed to provide elite protection for industrial internal combustion engines. This unit effectively neutralizes airborne contaminants, ensuring only purified air enters the combustion chamber to prevent premature mechanical wear.

Featuring a robust 6-inch inlet and a 5-inch outlet, the PA3493 maintains a powerful rated airflow of 27.2 m³/min (961 cfm). Its integrated housing design facilitates high-volume air delivery while keeping operational restriction remarkably low at 19.93 mbar. This balance of efficiency and throughput makes it an essential component for maintaining peak engine horsepower and fuel economy.

Performance Focus

Airflow Capacity: 961 cfm (27.2 m³/min)
Intake Precision: 6" Inlet / 5" Outlet
Low Restriction: 19.93 mbar (8" H2O)
Integrated Design: High-volume delivery

PA3493 Technical Specifications

Key Parameter	Dimensional & Performance Data
Model Number	PA3493
Product Style	Disposable / Single-Piece Housing
Inlet Diameter	152.4 mm (6.00 inch)
Outlet Diameter	127.0 mm (5.00 inch)
Max Body Diameter	246.38 mm (9.70 inch)
Body Length	492.76 mm (19.40 inch)
Rated Airflow (HR)	27.2 m³/min (961 cfm)
Intake Restriction	19.93 mbar (8 inch H2O)

PA3493 Superior Manufacturing Craftsmanship

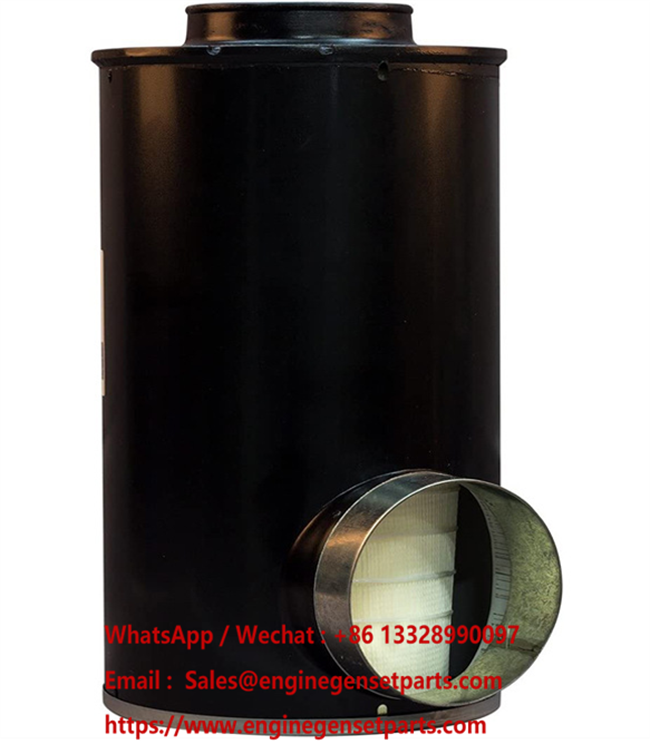

The PA3493 is manufactured using a precision-driven process that prioritizes structural integrity and filtration depth. As seen in the reference image , the filter utilizes a heavy-duty metallic exterior shell treated with a corrosion-resistant coating to withstand harsh industrial vibrations and thermal cycles.

Inside, specialized synthetic media is pleated using advanced uniform-spacing technology to maximize the filtration surface area without impeding air velocity. The seams are reinforced with high-temperature industrial adhesives to prevent bypass leaks, ensuring every cubic meter of air is thoroughly scrubbed before reaching the engine.

15 Years of Engineering Excellence

Our facility brings over 15 years of dedicated manufacturing experience to the global filtration market. This decade and a half of expertise allows us to refine every aspect of the PA3493, from material selection to final quality control. We understand that in the heavy-duty sector, reliability is non-negotiable. Our long-standing production history ensures that every filter we produce meets strict tolerances and delivers performance that mirrors original equipment standards, providing our clients with peace of mind and reduced operational downtime.
