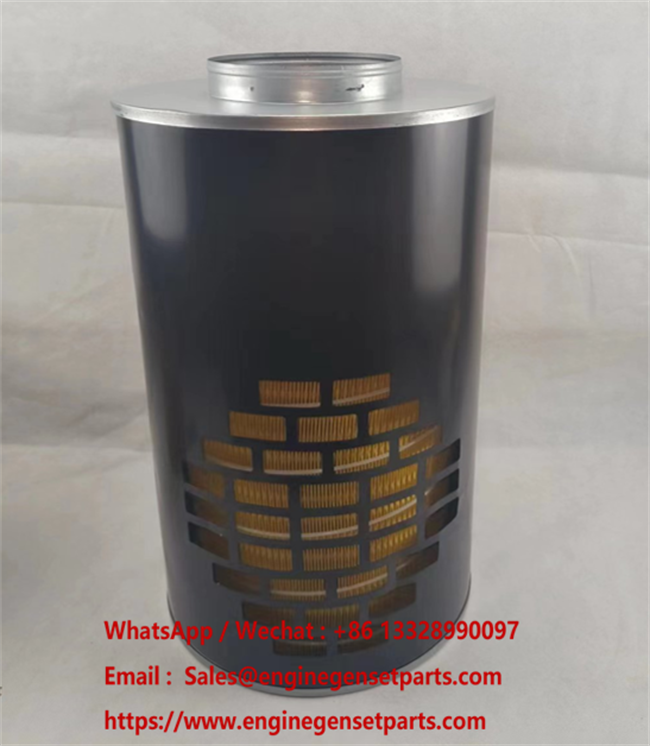

3I-1033 Heavy-Duty Air Filter
High-Capacity Filtration for Caterpillar Engines & Power Generation
3I-1033 Product Highlights
How the 3I-1033 Air Filter Functions
An industrial air filter is an essential component designed to capture airborne particulates-including micro-dust and carbon soot-before they reach the engine's intake manifold. The 3I-1033 utilizes a disposable, high-efficiency media housing that provides consistent filtration across its entire service life. By ensuring a steady supply of clean air, it prevents "engine dusting," which is the abrasive erosion of cylinders and piston rings caused by unfiltered air.
Solving B2B Procurement Challenges
Many industrial operators face the twin challenges of short filter lifespan and high procurement costs. Our 3I-1033 solution addresses these by utilizing deep-pleated media that significantly increases dust-holding capacity (DHC).
- Reliability: Engineered to withstand constant vibration of 550 KVA sets.
- Performance vs. Cost: Technical equivalent with improved lead times for maintenance.
Industry-Specific Application
This filter is a critical component for power generation and industrial machinery. Whether powering a GM 04 R 0005301 engine or supporting a SIMED industrial site, the 3I-1033 maintains the high airflow required for isochronous operation.
3I-1033 Technical Specifications
| Feature | Metric Measurement | Imperial Measurement |
|---|---|---|
| Model Number | 3I-1033 | 3I-1033 |
| Overall Length | 655.32 mm | 25.80 inch |
| Outlet Diameter | 152.4 mm | 6.00 inch |
| Body Diameter (Max) | 248.0 mm | 9.76 inch |
| Body Length | 609.6 mm | 24.00 inch |
| Rated Flow (HR) | 28.3 m³/min | 999 cfm |
| Restriction (HR) | 17.44 mbar | 7 inch H2O |
| Style | Disposable Housing | Disposable Housing |
3I-1033 Primary Cross References
- Caterpillar: 3I1033
- Fleetguard: AH1194
- Donaldson: P524837
- HiFi Filter: SA 16153
- SF-Label: SL 6427
- Sakura :AH-7937
- Wix : 46848
- Luberfiner : LAF4132
Equipment Matrix
Power Systems: GM 550 KVA Gensets
Engine Models: GM 04 R 0005301 Series
Brands: SIMED, Caterpillar, Kohler
3I-1033 Application Industries
Frequently Asked Questions
Q: How do I determine if the 3I-1033 air filter needs replacement?
A: Replacement occurs when the restriction indicator reaches the limit or engine fuel consumption increases with power loss.
Q: Is the 3I-1033 compatible with high-moisture environments?
A: Yes, synthetic-blend media is moisture-resistant to prevent sagging or loss of integrity in humid conditions.
Q: What is the risk of using a low-efficiency air filter?
A: Fine abrasive particles bypass the media, leading to "engine dusting" and premature internal component wear.
Q: Does this filter require a specific mounting orientation?
A: It should be mounted according to the bracket configuration of the Caterpillar or GM genset to ensure correct airflow direction.
Q: Are CAD drawings available for engineering integration?
A: Proprietary mold development. Detailed 2D/3D CAD drawings are available upon formal inquiry for technical verification.
