China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of hydraulic filter p569401 in China. Welcome to wholesale original and genuine hydraulic filter p569401 from our factory. Contact us for cheap products and OEM service.
Product Description

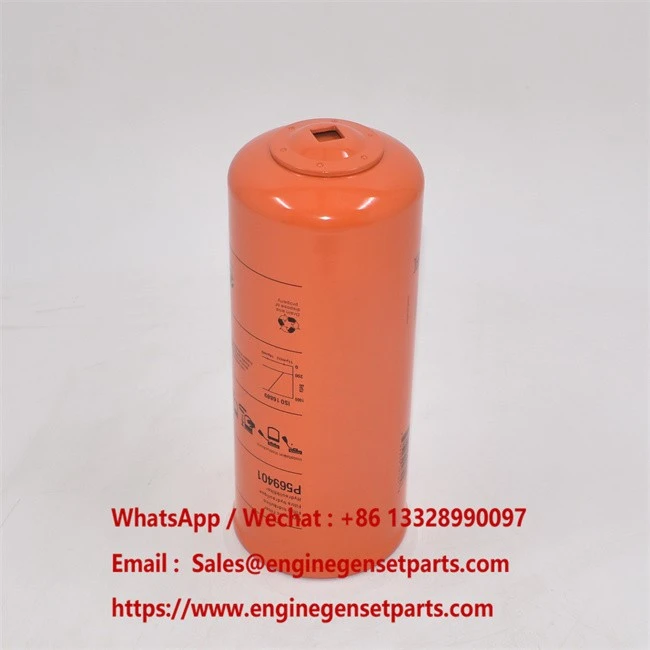

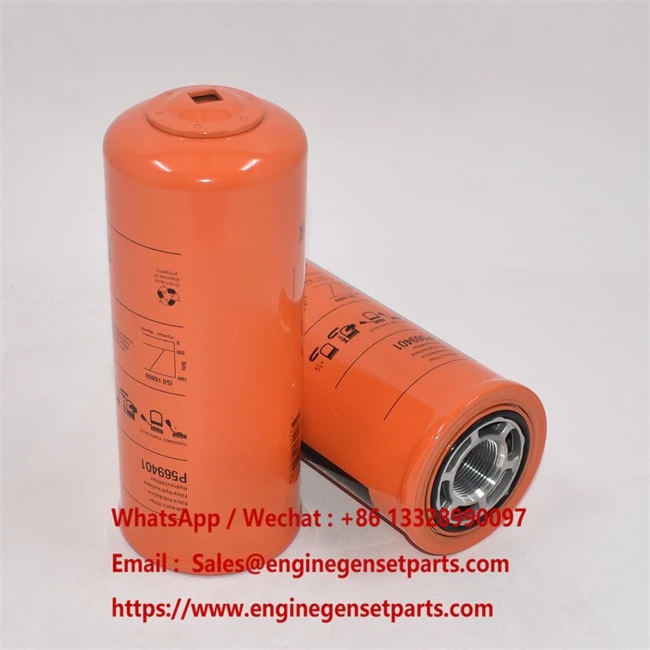

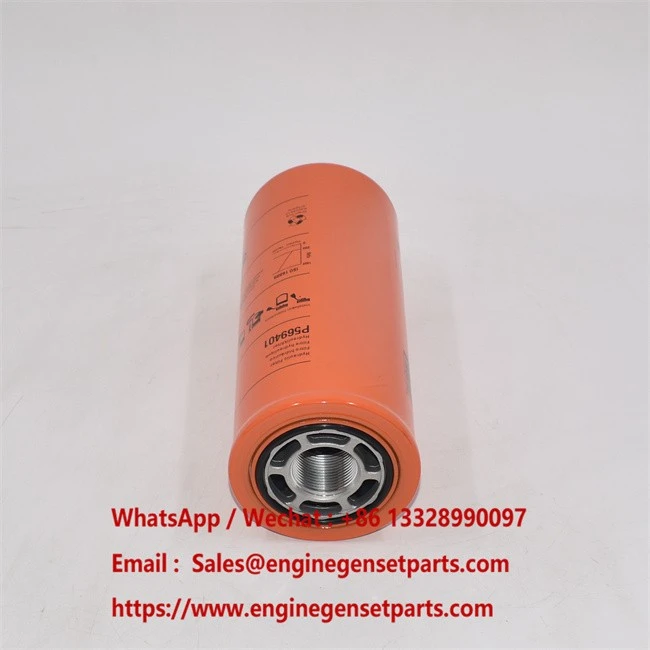

Spin-On Hydraulic Filter P569401 for John Deere features an ultimate-efficiency Beta 1000 synthetic media core enclosed in a heavy-duty steel spin-on canister. Engineered for John Deere tractors and sprayers, it maintains stable fluid cleanliness, protects proportional control valves, and prevents hydraulic pump scoring under extreme operating pressures.
Core Strengths
Beta 1000 Rating Performance
Advanced synthetic media captures 99.9% of sub-micron particulates, ensuring fluid cleanliness under harsh hydraulic loads.
Heavy-Gauge Spin-On Canister
High-strength steel housing withstands severe pressure fluctuations, fatigue stresses, and external mechanical impacts.
Precision 1 3/8-12 UN Threads
Machine-cut spin-on thread geometry guarantees fast, vibration-proof installation onto standard filter heads.
Nitrile Gasket Compression Ring
Heavy-duty rubber sealing ring prevents external fluid leaks and maintains seal integrity under dynamic pressure spikes.
Technical Specifications
| Outer Diameter | 97 mm (3.82 inch) |
| Thread Size | 1 3/8-12 UN |
| Length | 245.11 mm (9.65 inch) |
| Gasket OD | 70.15 mm (2.76 inch) |
| Gasket ID | 63.1 mm (2.48 inch) |
| Efficiency | Beta 1000 = 11 micron |
OE Reference & Application Scenarios
OE / Cross Reference Numbers
Donaldson: P569401 | Fleetguard: HF35491 | HiFi: SH 66161
Operational Scenarios
Vehicle & Equipment Applications
AG CHEM EQUIPMENT: 554-SPRAYER ROGATOR (CUMMINS 6BT5.9)
JOHN DEERE Lawn Equipment: 3215A (YANMAR 3TNE84), 3215B (YANMAR 3TNE82), 3235 (YANMAR 3TNE84), 3235A (YANMAR 3TNE84), 3235B (YANMAR 3TNE84)
JOHN DEERE Tractors: 7200 (JOHN DEERE 6059T), 7200J (JOHN DEERE 6068H), 7210 (JOHN DEERE 6068T), 7215J (JOHN DEERE 6068H), 7230J (JOHN DEERE 6068H), 7400, 7410 (JOHN DEERE 6068T), 7505 (JOHN DEERE 6068T), 7510 (JOHN DEERE 6068T), 7600 (JOHN DEERE 6068T), 7610 (JOHN DEERE 6068T / 6068), 7630 (JOHN DEERE 6068H), 7700 (JOHN DEERE 6076T), 7710 (JOHN DEERE 6081H), 7720 (JOHN DEERE 6068H), 7730 (JOHN DEERE 6068H), 7800 (JOHN DEERE 6076T), 7810 (JOHN DEERE 6081H), 7820 (JOHN DEERE 6081H), 7830 (JOHN DEERE 6068H), 7930 (JOHN DEERE 6068H)
JOHN DEERE Tracked Tractors: 9300T (JOHN DEERE 6125H), 9400T (JOHN DEERE 6125H)
Packaging & Export Logistics Process
Anti-Corrosion Poly Wrap
Each spin-on filter is hermetically sealed in protective film to block dust and airborne moisture during sea freight.
Reinforced Unit Cartons
Individual spin-on canisters are housed in customized corrugated boxes with internal shock protection pads.
Export Master Packaging
Bundled into heavy-duty 5-ply outer cartons sealed with waterproof tape to survive long-distance transit.
Palletizing & Strapping
Master boxes are organized on fumigated wooden pallets, stretch-wrapped, and bound with high-strength polypropylene bands.
Frequently Asked Questions (FAQ)
Q: What does a Beta 1000 rating mean for part number P569401?
A Beta 1000 rating indicates 99.9% filtration efficiency for 11-micron particles, providing ultra-clean oil protection for sensitive hydraulic systems.
Q: Does this spin-on filter fit John Deere 7000 and 7030 series tractors?
Yes, it is fully compatible with John Deere 7200 through 7930 series tractors and 9000T tracked models.
Q: What thread size is used on this spin-on hydraulic filter housing?
It features standard 1 3/8-12 UN threads for secure fitment onto designated hydraulic mounting bases.
Q: Why is high-efficiency hydraulic filtration essential on field tractors?
Ultra-fine filtration removes microscopic silt and metal fragments before they cause sticking in valve spools or erosion in hydraulic pumps.
Q: When should spin-on hydraulic filters be replaced on farm machinery?
They should be replaced every 500 to 1,000 operational hours or whenever hydraulic pressure drop warnings are triggered.
