HF35498 Hydraulic Filter

The professional-grade Hydraulic Filter HF35498 provides advanced fluid-power protection and particle separation, keeping critical high-pressure hydraulic circuits completely free from airborne contaminants and internal wear debris.

Send Inquiry

Chat Now

HX63X20 Hydraulic Filter

Hydraulic Filter 0850R020ONPO-KB

Description

China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of hf35498 hydraulic filter in China. Welcome to wholesale original and genuine hf35498 hydraulic filter from our factory. Contact us for cheap products and OEM service.

High-Pressure Circuit & Fluid System Protection

Hydraulic Filter HF35498

The Hydraulic Filter HF35498 delivers absolute fluid system security by capturing microscopic wear particles, silica dust, and carbon contaminants before they can damage sensitive hydraulic components. Precision-engineered as a direct factory substitute for Hyster 4024304, Tec-Fil PSH924, Guangxi Liugong Machinery SP155069, and Rokbak 15503244, this spin-on element is fully optimized for complex machinery networks. It maintains extensive interchange capabilities with Fleetguard FS1015, Donaldson P553211, Mann Filter WK 1060/5 x, and HiFi Filter SN 40572. Designed to protect heavy-duty equipment like CASE, Doosan, Hitachi, Hyundai, JCB, John Deere, Liebherr, and LiuGong CLG 856 H wheel loaders, it prevents internal fluid degradation. By continuously filtering out micro-abrasives from high-pressure lines, it safeguards hydraulic pumps, control valves, and cylinders from premature stickiness, scoring wear, and un-planned equipment downtime.

HF35498 Product Advantages

01	High-Strength Spin-On Construction Features a reinforced steel outer canister shell engineered to easily handle heavy system pressure spikes, return-line shocks, and constant structural engine vibrations.
02	Premium Micro-Glass/Cellulose Media Utilizes a high-capacity multi-layer pleat structure that provides superior dust-loading capabilities while maintaining low flow restriction for maximum system efficiency.
03	Dual-Threaded Precision Interface Built with durable, factory-machined dual threads to guarantee a fast, leak-proof spin-on installation that eliminates bypass hazards in severe fieldwork environments.

HF35498 Technical Specifications

Industrial Engineering Parameter	Certified Value / Technical Standard
Style	FUEL FILTER / HYDRAULIC FILTER
Dimension 1 (D1)	94.0 mm
Dimension 2 (D2)	93.5 mm
Dimension 3 (D3)	77.0 mm
Thread 1 (D7)	1"-14UNF
Thread 2 (D8)	1"1/4-10UNF
Height 1 (H1)	192.0 mm
Height 2 (H2)	176.0 mm
Height 3 (H3)	172.5 mm

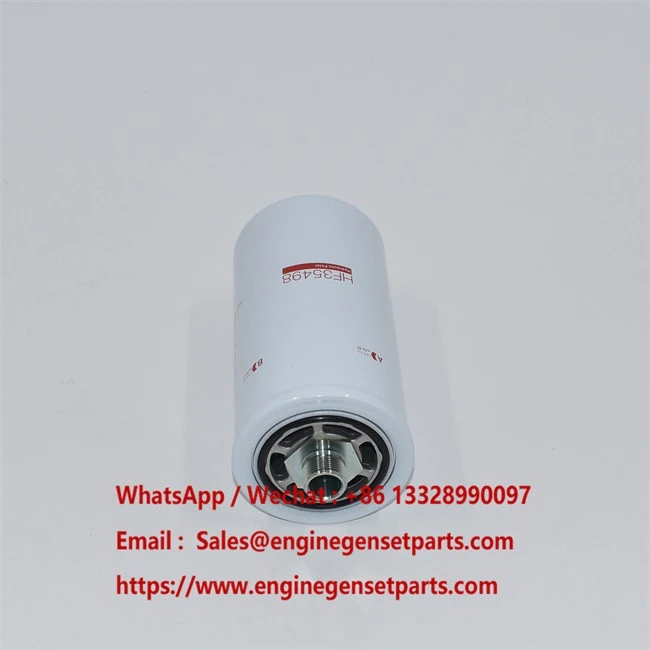

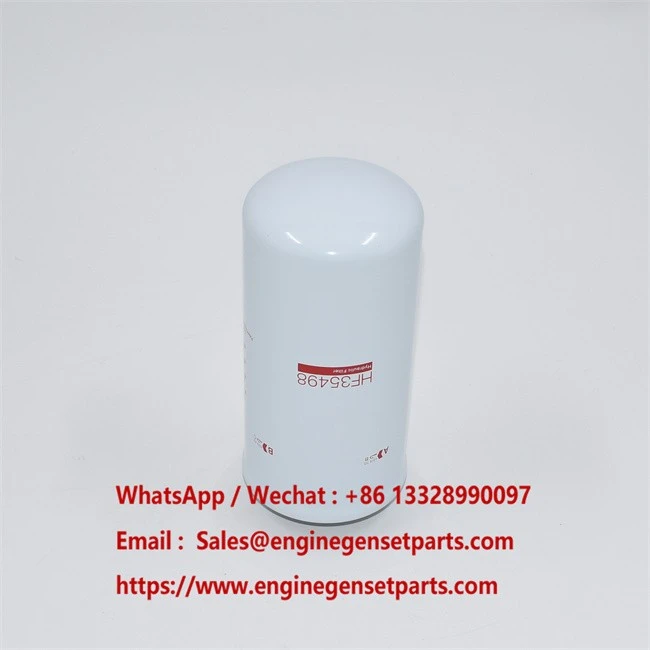

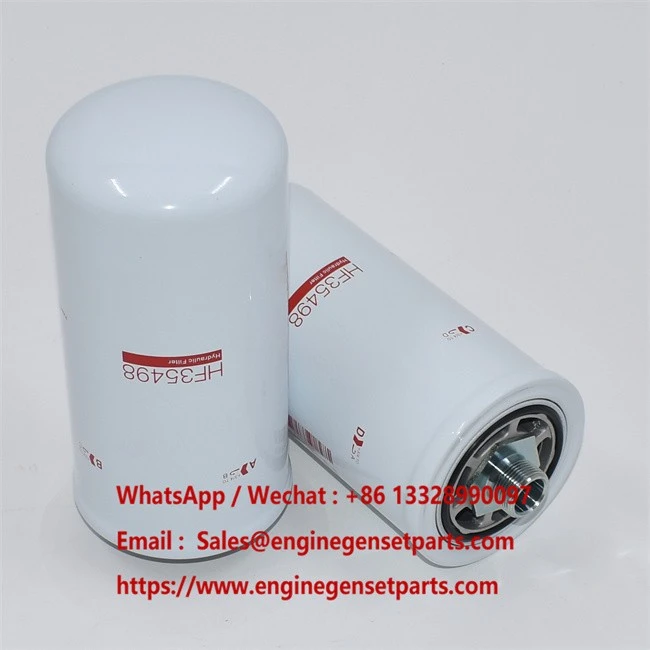

As showcased in the product reference file HF35498 WZBSM (25).JPG, this heavy-duty filter unit features a high-visibility white casing clearly marked with the precise model number HF35498 and the designated function Hydraulic Filter, alongside installation alignment indicators on the lower shell border.

HF35498 OE Cross-Reference Interchange

This high-performance fluid filtration component is manufactured to match exact technical dimensions and engineering benchmarks, serving as a direct replacement for the following part numbers:

Hyster: 4024304	Tec-Fil: PSH924
Guangxi Liugong Machinery: SP155069	Rokbak: 15503244
Fleetguard: FS1015	Donaldson: P553211
Mann Filter: WK 1060/5 x	HiFi Filter: SN 40572

Certified Vehicle & Equipment Application Matrix

The industrial-grade Hydraulic Filter HF35498 is globally cross-certified for integration into heavy earthmoving machinery, high-tonnage agricultural tractors, mobile cranes, and specialized vocational transport fleets.

BELL Material Handlers Articulated Tractors: L 1204 E

BERGMANN Heavy Dumpers Wheeled Dumper Series: 3012, 3012 PLUS, 3012 RC, 815 S

CAMOX Forestry Machinery Log Skidders: F 140, F 175, F 175 F

CASE Construction Equipment Wheel Loader Series: 1021 F, 1021 G, 1021 G+, 1121 F, 1121 G, 1121 G+, 1221 E, 521 D, 521 E T3, 521 F, 521 G TIER 4B, 521 G+, 621 D, 621 E, 621 F, 621 G+, 651 G+, 721 C, 721 D, 721 E, 721 E T3, 721 F, 721 F XT, 721 G TIER 4B, 721 G+, 821 C, 821 E, 821 E T3, 821 F, 821 G TIER 4B, 821 G+, 836 C, 921 C, 921 E, 921 E T3, 921 F, 921 G TIER 4B, 921 G+

DEMAG Mobile Cranes All-Terrain Cranes: AC 155, AC 35-1

DEVELON / DOOSAN / DOOSAN DAEWOO

Heavy Wheel Loaders: DL 160, DL 200, DL 200-3, DL 250, DL 250-5, DL 300, DL 300-3, DL 300-5, DL 320-7, DL 350, DL 350-3, DL 350-5, DL 380-7, DL 400, DL 400-3, DL 400-5, DL 400 A, DL 420, DL 420-5, DL 420-7, DL 450, DL 450-3, DL 450-5, DL 480-7, DL 500, DL 550-3, DL 550-5

Mega-Series Infrastructure Loaders: MEGA 160 V, MEGA 200 V, MEGA 250 III, MEGA 250 V, MEGA 300, MEGA 300 III, MEGA 300 V, MEGA 400 V, MEGA 400 V SUPER, MEGA 500 V

Heavy-Duty Forklifts: D 100, D 120

FIAT KOBELCO Motor Graders & Wheel Loaders: G 110 6WD, W 130, W 131

HBM NOBAS Motor Graders Road Construction Graders: BG 110 TA 4, BG 120 TA 6, BG 160 TA 4, BG 190 TA 4, BG 240 TA-4

HIDROMEK Heavy Machinery Heavy Production Loaders: HMK 640 WL

HITACHI Construction Machinery Wheel Loader Series: LX 170 E, LX 290 E, ZW 180, ZW 180-5 B, ZW 180-6, ZW 220, ZW 220-6, ZW 220-7, ZW 250-5B, ZW 250-6, ZW 250-7, ZW 310-7

HSM Specialized Forestry Units Heavy-Duty Skidders: 904 H 1, 904 ZF

HYDREMA Articulated Dumpers & Loaders Compact Dumpers & Backhoes: 912 C, 912 D/DS, 912 ES, 912 F, 912 GS, 922 C, 922 D, 922 F, 926 C, 926 C SERIE 2, 926 D, 926 E, 928 C, 928 C SERIE 2, 928 D, 928 E

HYUNDAI Heavy Industries

HL-Series Wheel Loaders: HL 730-7, HL 730-7A, HL 730-9, HL 730 TM-7, HL 730 TM-7A, HL 730 TM-9, HL 740-7, HL 740-7A, HL 740-9, HL 740 TM-7, HL 740 TM-7A, HL 740 TM-9, HL 757-7, HL 757-7A, HL 757-9, HL 757-9A, HL 757 TM-7, HL 757 TM-7A, HL 757 TM-9, HL 760, HL 760-7, HL 760-7A, HL 760-9, HL 760-9A, HL 770-7, HL 770-7A, HL 770-9, HL 770-9A, HL 780-3A, HL 780-7A, HL 780-9, HL 940, HL 940 XT, HL 960, HL 960 A, HL 970

Heavy Forklifts: 160D-7E, 757-9 A

JCB Heavy Construction Platforms Agri & ZX Wheel Loaders: 411 HT, 414 S, 416 HT, 416 S, 417 HT T4F, 418 S, 427 AGRI, 427 HT/AGRI, 434 S, 435 S, 436 B, 436 HT, 436 S, 437 ZX, 455 ZX, 456 EZX, 456 HT, 456 ZX, 457 HT, 457 ZX, 718

JOHN DEERE Agricultural & Construction Equipment P-Series & G-Series Industrial Wheel Loaders: 524 P, 544 G, 544 P, 644 G, 644 K, 844 J

KALMAR / KONECRANES Container Handling Equipment Reach Stackers & Heavy Forklifts: DCD 200-12 LB, DCF 250-12 LB, DCG 120-6, DCG 160-12, DRG 450-60C5X, SMV SL 16-1200 B

LIEBHERR Infrastructure Equipment

XPower Wheel Loaders: L 550, L 550 XPower, L 556, L 556 XPower, L 566, L 566 XPower, L 576, L 580 X Power (Stage IV), L 586

Mobile Construction Cranes: LTC 1050-3.1, LTM 1030-2, LTM 1040-2.1, LTM 1045-3.1, LTM 1060-2, LTM 1070-4.1, LTM 1080-1

Articulated Dump Trucks: TA 230, TA 240

LIUGONG Aftermarket Support Heavy Wheel Loader Series: CLG 856 H

LJUNGBY Wheel Loaders Compact Earthmovers: L 30

MANITOU Heavy Forklifts Industrial Lift Trucks: MI 60 D ST5 S1

MOXY / TEREX Articulated Haulers

Earthmoving Dump Trucks: MT 26, MT 31, TA 25, TA 250, TA 27, TA 30, TA 300, TA 300 R, TA 35, TA 40

Rough-Terrain Cranes: RC 45-1, RT 1045 L, RT 45 L

Motor Graders: TG 110 A, TG 150

NEW HOLLAND / O & K Infrastructure Machinery Heavy Graders & Wheel Loaders: F 106-6 A, F 106-7, F 156.6, F 156.7, F 156.7A, W 110 D, W 130, W 130 D, W 170 B, W 170 C, W 190 B, W 190 C, W 190 D, W 230 C, W 270, W 270 B, W 270 C, W 300 C, F 106-06, F 106-5 A, L 20.6, L 25-5, L 30

PPM Mobile Cranes All-Terrain Heavy Cranes: ATT 300, ATT 340, ATT 390, ATT 400, ATT 400/2, ATT 400/3, ATT 600/2

STALOWA WOLA / TERBERG Heavy Loaders & Terminal Tractors: L 530 E, RT 222, RT 382

ZF (Zahnradfabrik) Pneumatic / Hydraulic Transmission Assemblies: DIVERS (Various configurations)

Targeted Application Scenarios

• High-Stress Open-Pit Mining & Bulk Quarrying: Ideally engineered for CASE 921 G and Doosan DL 420-7 wheel loaders cycling continuously under extreme breakout forces. The filter preserves fluid purity amidst dense stone powder and aggregate shards.

• Heavy Infrastructure Grading & Road Compaction: Protects the pilot control circuits on HBM NOBAS and New Holland graders executing precision roadbed grading. This ensures steady hydraulic valve responsiveness with no micro-shuddering.

• Deep Timber Logging & Forestry Skidding: Delivers consistent hydraulic pressure line security to CAMOX and HSM log skidders wrestling heavy timber configurations over irregular mountain grades, shielding the primary pump from woody resin and particle ingress.

• High-Capacity Port Container Terminal Logistics: Safeguards the heavy lift cylinders of Kalmar reach stackers and Konecranes material handlers during around-the-clock cargo operations, tolerating severe load-lifting thermal spikes without seal failures.
