China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of air filter 3i1578 in China. Welcome to wholesale original and genuine air filter 3i1578 from our factory. Contact us for cheap products and OEM service.

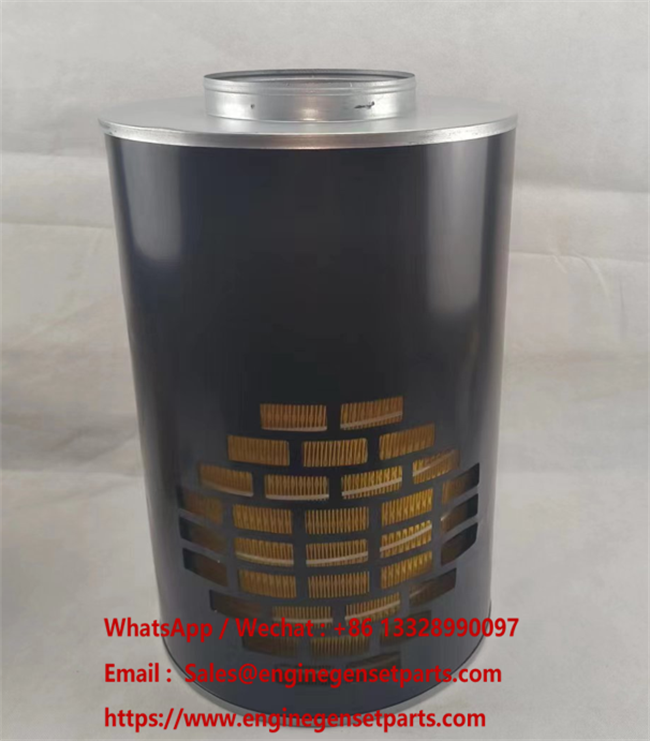

3I-1578 Heavy-Duty Air Filter
High-Volume Airflow Induction (1501 cfm) for Large-Scale Industrial Engines
3I-1578 Product Highlights
3I-1578 Technical Specifications
Manufactured to Verified to OEM Standard Tolerances for seamless housing integration.
| Parameter | Metric (mm / mbar) | Imperial (inch / H2O) | Technical Benchmark |
|---|---|---|---|
| Model Number | 3I-1578 | 3I-1578 | Heavy-Duty Series |
| Overall Length | 502.92 mm | 19.80 inch | Precision Alignment |
| Body Length | 457.2 mm | 18.00 inch | Canister Dimension |
| Body Diameter (Max) | 343.0 mm | 13.50 inch | Housing Clearance |
| Outlet Diameter | 177.8 mm | 7.00 inch | Vacuum-Tight Port |
| Rated Flow (HR) | 42.5 m³/min | 1501 cfm | FARR 71338004 Ref |
| Restriction (HR) | 17.44 mbar | 7 inch H2O | Optimal Efficiency |
3I-1578 Cross Reference: 100% Interchangeable Authority
Eliminate downtime with our OEM Equivalent 3I-1578 solution for major brands:
3I-1578 Key Advantages: Total Cost of Ownership
Optimized Pleat Geometry → High DHC → Service Interval Extension
High Dirt Holding Capacity (DHC) allows for longer run times between replacements, significantly reducing annual maintenance costs.
Precision Airflow → Optimized Combustion → Enhanced Fuel Economy
By maintaining low intake resistance, the 3I-1578 ensures the engine operates at peak efficiency, lowering overall fuel consumption.
Absolute Contaminant Separation → Reduced Engine Wear → Extended Component Life
Protecting the turbocharger and high-pressure injection systems from microscopic silica reduces the risk of unplanned overhauls.
Quality Assurance
Supported by 15 years of manufacturing expertise, every 3I-1578 undergoes a mandatory 12-Point QC Inspection. Conforms to ISO 5011 performance standards with Synthetic-Blend Media.
Expert Perspective
Features reinforced internal support to prevent "pleat migration". We recommend instrumentation-based Preventive Maintenance over visual inspection.
Environment & Maintenance
Severe Conditions: Monitor Restriction Indicator daily in mining/high-dust sites.
Replacement Trigger: Replace immediately when restriction reaches typically 20-25 inches of H2O.
Direct Factory Procurement & Cost-Efficiency
Bypass brand markups. Specialized for bulk fleet procurement and global distribution.
FREE CROSS-REFERENCE AUDIT • FACTORY DIRECT SUPPLY • ISO 5011 COMPLIANT
