P154927 High-Capacity Air Induction Filter
Optimized for Caterpillar 3I0421 & Fleetguard AH1103 Performance Standards
Optimized Air Induction
Delivers high-velocity flow of 1201 cfm (34 m³/min) for large-displacement engines.
Advanced Barrier
Captures micro-abrasives to protect cylinder liners from premature wear.
Vacuum-Grade Integrity
Rigid canister body prevents media deformation during pressure spikes.
Universal Housing Fit
Fully compatible with Caterpillar and Donaldson industrial intake assemblies.
P154927 Defending Engine Life Through Technical Filtration
In heavy-duty industrial environments, atmospheric dust acts as a high-speed abrasive. The P154927 serves as a critical defense line, utilizing a high-surface-area pleated media to trap 99.9% of harmful particles. By maintaining a low operating restriction of only 6 inch H2O, this filter ensures your engine operates at peak thermal efficiency without the parasitic power loss associated with clogged or inferior intake systems.
Engineering for Professional Fleets
The P154927 is more than a standard consumable; it is a precision-engineered component. We focus on the Beta Ratio and Dust Holding Capacity (DHC), ensuring that the filter provides stable protection throughout its entire service life. This disposable canister style is designed for rapid maintenance turnarounds, featuring a radial seal interface that maintains a vacuum-proof barrier even under intense vibration.
P154927 Technical Specifications

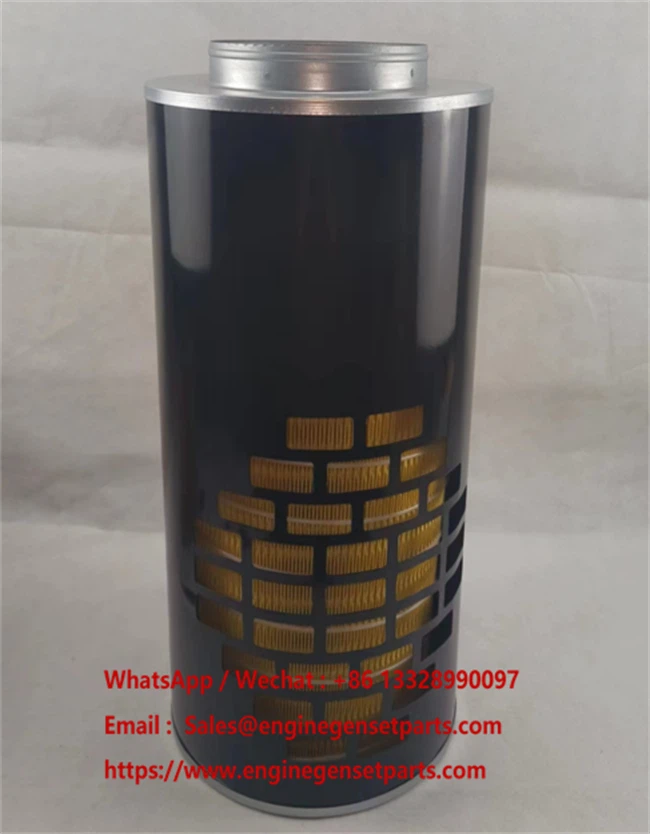

Refer to P154927.jpg for visual confirmation of housing and seal design.
| Feature | Metric Specification | Imperial Specification |
|---|---|---|
| Model Number | P154927 | P154927 |
| Overall Length | 647.7 mm | 25.50 inch |
| Body Length | 609.6 mm | 24.00 inch |
| Max Body Diameter | 279.4 mm | 11.00 inch |
| Inlet Diameter | 228.0 mm | 8.98 inch |
| Outlet Diameter | 177.8 mm | 7.00 inch |
| Rated Flow (HR) | 34 m³/min | 1201 cfm |
| Restriction (HR) | 14.95 mbar | 6.00 inch H2O |
| Filter Style | Disposable Canister | Disposable Canister |
P154927 Cross Reference
The P154927 is a certified 100% interchangeable alternative for the following professional part numbers:
Manufacturing Standards
With over 15 years of industry-leading manufacturing expertise, we specialize in high-displacement power unit filtration. Our 12-point Quality Control (QC) protocol verifies every unit for seal elasticity, media uniformity, and structural load-bearing capacity. This rigorous testing ensures that each P154927 delivers consistent protection for your turbochargers and internal engine components.
P154927 Frequently Asked Questions
Q: How does the P154927 prevent "engine dusting"?
A: "Engine dusting" occurs when unfiltered air enters the combustion chamber. The P154927 prevents this by using a high-compression radial seal and gradient-density media that traps micro-particulates with 99.9% efficiency.
Q: Is the P154927 compatible with Caterpillar machinery?
A: Yes, it is a direct interchange for Caterpillar part number 3I0421 and is engineered to meet the same airflow and filtration requirements.
Q: Can I clean this filter with compressed air?
A: No. The P154927 is a disposable canister style. Using compressed air can cause microscopic tears in the synthetic media, allowing damaging silica to bypass the filter and destroy the engine.
Q: What is the significance of the 1201 cfm flow rating?
A: The flow rating indicates the maximum volume of air the filter can process per minute. A 1201 cfm rating ensures that even under full load, the engine receives sufficient clean air for complete combustion.
Q: Why choose this over a standard aftermarket filter?
A: While standard filters may match dimensions, our P154927 prioritizes Dust Holding Capacity (DHC), allowing for longer service intervals and lower Total Cost of Ownership (TCO).
