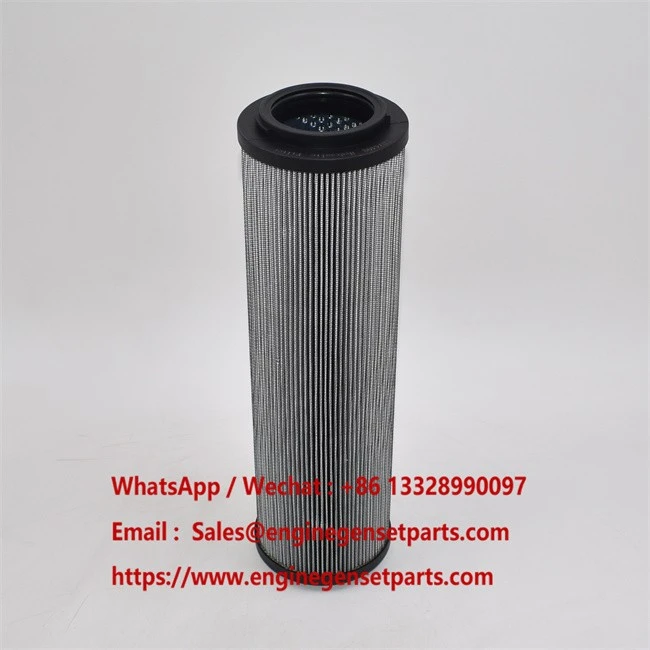

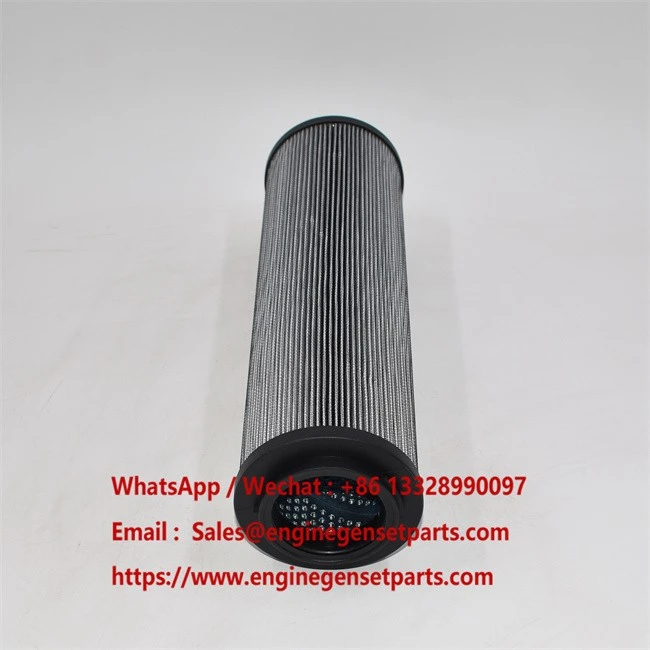

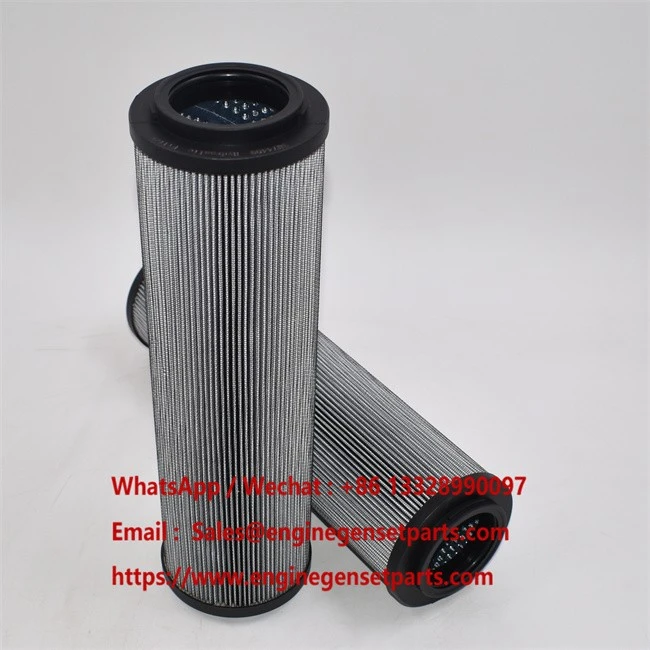

Hydraulic Return Filter SH74408 For Ropa Wirtgen Machinery
Product Description
Hydraulic Return Filter SH74408 For Ropa Wirtgen Machinery purifies hydraulic oil returning to the system reservoir across heavy-duty industrial vehicles. Featuring synthetic media, a 398 mm length, and 10 bar collapse resistance, it captures microscopic debris to ensure smooth hydraulic actuator performance.
Core Strengths
- High-Efficiency Synthetic Media: Advanced synthetic fiber matrix traps fine particulate contaminants at Beta 1000 rating.
- Robust Collapse Pressure Resistance: Built to withstand up to 10 bar differential pressure surges during heavy hydraulic operations.
- Nitrile Seal Compatibility: High-grade nitrile sealing material ensures leak-free performance across wide operating temperatures.
- Precision Dimensional Standards: Designed with a 114 mm outer diameter and 68.5 mm inner diameter for exact housing fit.
Technical Specifications
| Style | Return Filter |
| Media | Synthetic |
| Efficiency | 13µ @ β200, 215µ @ β1000 |
| Outer Diameter | 114.0 mm |
| Inner Diameter | 68.5 mm |
| Length | 398.0 mm |
| Collapse Pressure (Δ) | 10 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
OE Reference & Application Scenarios
| OE / Cross Reference Numbers | HiFi Filter SH 74408, HiFi Filter SH 74408 SP, Filtrec RHK800M10B, Donaldson P958435, Fleetguard HF35337 |
| Application Scenarios | Return line oil filtration for heavy agricultural harvesters, road milling equipment, and industrial crushers. |
Vehicle & Equipment Applications
- ATN: MYGALE 23
- EUROLINERS: 251 V2, TRASSAR 8
- ROPA: EURO-BUNKERMAUS 4, EURO-BUNKERMAUS 5, EUROMAUS 5, TIGER 5
- RUBBLE MASTER: RM 100 GO
- WIRTGEN: WR 250
Customer Reviews
Hans M. (Agricultural Fleet Manager, Germany)
"We use SH74408 on our Ropa Tiger 5 harvesters. The synthetic media holds up exceptionally well under heavy hydraulic return flows."
Christian L. (Road Construction Specialist, Austria)
"Exact replacement for Donaldson P958435. Fits our Wirtgen WR 250 perfectly with zero oil leakage issues."
Marco V. (Industrial Parts Supplier, Italy)
"Reliable build quality and robust 10 bar collapse pressure rating. Our clients running Rubble Master crushers are very satisfied."
Pierre D. (Equipment Maintenance Lead, France)
"High filtration efficiency and sturdy nitrile seals that handle temperature fluctuations without degrading."
Stefan K. (Heavy Machinery Workshop Owner, Poland)
"Great cost-performance alternative to OEM filters. Excellent packaging and quick delivery for our maintenance schedule."
Frequently Asked Questions (FAQ)
Q1: What is the filtration efficiency rating of hydraulic filter SH74408?
It features synthetic media achieving efficiency levels of 13µ at β200 and up to 215µ at β1000.
Q2: What are the physical dimensions of this hydraulic return element?
The filter has an outer diameter of 114.0 mm, an inner diameter of 68.5 mm, and a total length of 398.0 mm.
Q3: What is the maximum collapse pressure tolerance for SH74408?
It is engineered to withstand a collapse pressure differential (Δ) of up to 10 bar.
Q4: Which cross-reference part numbers match HiFi Filter SH74408?
It directly interchanges with Donaldson P958435, Fleetguard HF35337, and Filtrec RHK800M10B.
Q5: What temperature range do the nitrile seals support?
The nitrile sealing material operates effectively within a temperature range of -30 to +100°C.
