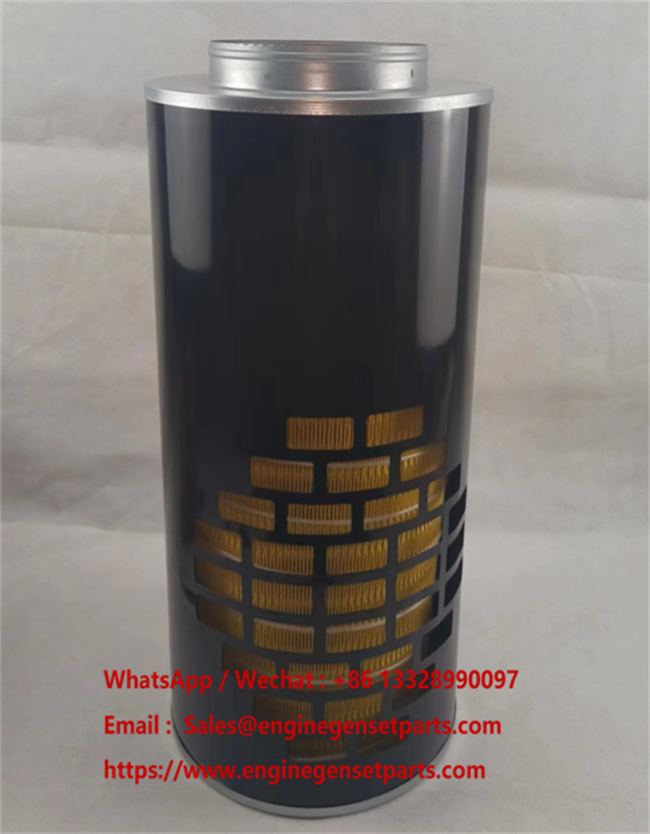

PA2650 High-Capacity Air Filter
Premium Filtration for BAUDOUIN, KOHLER & CATERPILLAR Heavy-Duty Power Systems
PA2650 Product Overview
The PA2650 Air Filter is a high-capacity, integrated filtration unit designed for heavy-duty power systems, specifically compatible with BAUDOUIN, KOHLER (230 REOZD, 350 REOZD), and DIVERS equipment.
This disposable-style filter features a robust cylindrical housing that encloses premium synthetic media, designed to facilitate a massive airflow of 34 m³/min while maintaining exceptionally low intake resistance. By combining structural strength with precision filtration, the PA2650 acts as a critical shield, preventing fine dust and contaminants from compromising engine performance or causing internal component wear.
Core Performance
- Airflow: 34 m³/min
- Restriction: 14.95 mbar
- Type: Disposable
- Inlet: 228 mm (8.98")
PA2650 Technical Specifications
| Feature | Detailed Parameter |
|---|---|
| Model Number | PA2650 |
| Filter Style | Disposable / Eco-friendly Housing |
| Overall Length | 647.7 mm (25.50 inch) |
| Inlet Diameter | 228 mm (8.98 inch) |
| Outlet Diameter | 177.8 mm (7.00 inch) |
| Body Diameter (Max) | 279.4 mm (11.00 inch) |
| Body Length | 609.6 mm (24.00 inch) |
| Rated Flow (HR) | 34 m³/min (1201 cfm) |
| Intake Restriction (HR) | 14.95 mbar (6 inch H2O) |
Application Environment
The PA2650 is engineered for high-demand industrial and backup power environments. It is the ideal choice for KOHLER generator sets and BAUDOUIN engines operating in remote construction sites, data center backup facilities, and industrial power plants where air quality can fluctuate significantly. The design is particularly effective in environments prone to high concentrations of airborne particulates, such as mining zones or arid climates. By providing a stable, high-volume supply of purified air, it ensures that stationary engines maintain constant thermal regulation and combustion stability under continuous load cycles.
Cross-Reference Guide (OE Compatibility)
PA2650 Core Product Advantages
The differential between the 8.98" inlet and 7" outlet optimizes air velocity, reducing turbo load.
Heavy-duty outer shell with reinforced grid design prevents media collapse during high-suction startup.
High dust-holding capacity allows for longer replacement intervals, reducing labor and downtime.
Designed to strict OE tolerances for a leak-proof seal across Caterpillar and Kohler units.
Engine Integrity Starts with Clean Air
Reliable Factory-Direct Supply for Global Industrial Power Fleets.
