Industrial Spin-On Lubrication Oil Filter
Heavy-Duty Fleet Protection | Part Identification: LF3854
LF3854 Product Description

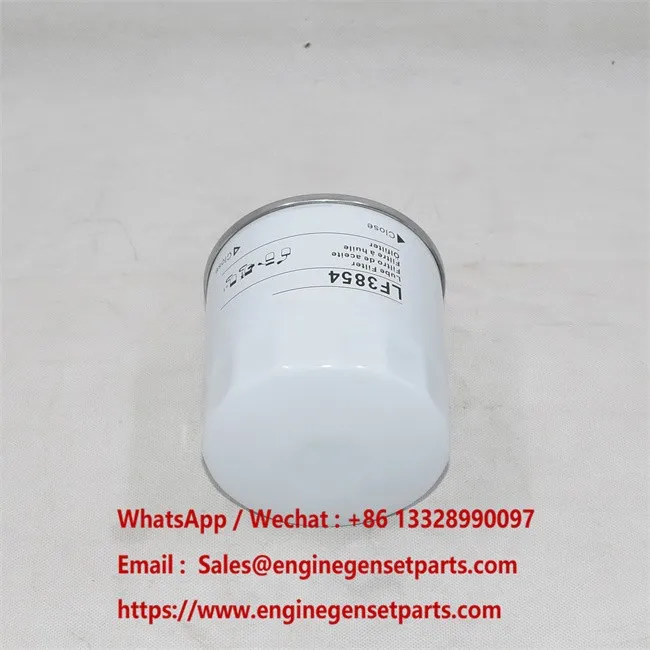

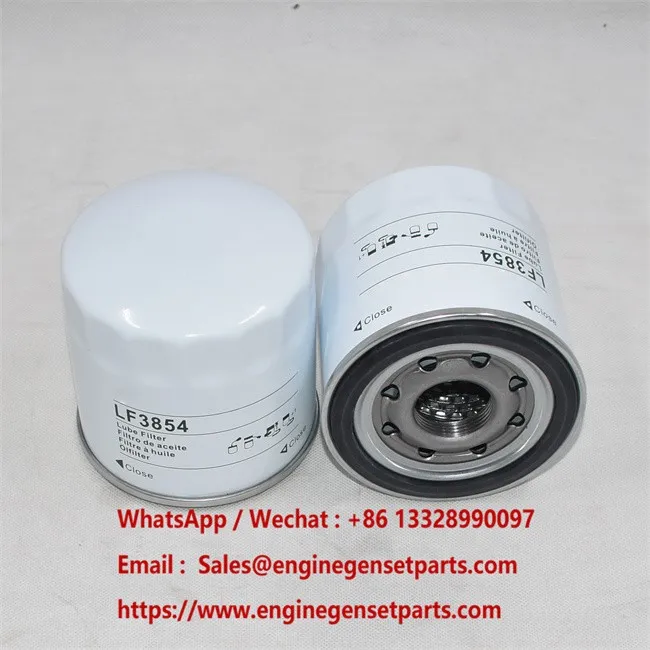

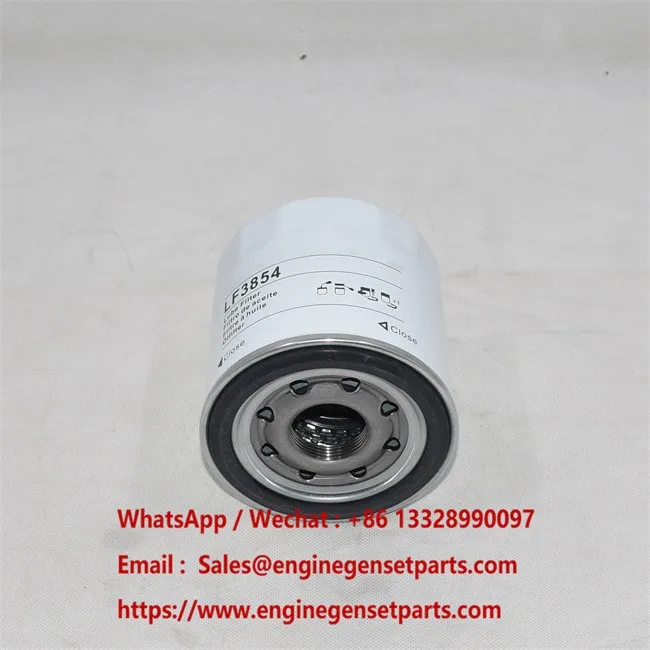

This industrial spin-on lubrication oil filter is precision engineered to meet demanding oil cleanliness targets within high-load medium-duty commercial transport applications.,The canister features a heavy-gauge stamped steel outer shell housing an advanced pleated media matrix that ensures stable fluid passage during peak operational loads. Measuring an overall vertical height of 126.0 mm with an outer dome diameter of 123.0 mm, the unit relies on a robust 1"1/2-12UNF internal mounting thread for positive engagement. To protect cold-running engine blocks, the assembly integrates a precision-calibrated internal bypass valve that maintains oil flow if pressure spikes occur. A flat nitrile rubber gasket profile with a 112.0 mm tracking pattern ensures a secure, leak-proof seal against the engine mounting base.
LF3854 Core Technical Advantages
Optimized Full-Flow Filtration Media
Features a high-capacity pleated media layer designed to trap sub-micron soot, varnish particles, and metal shavings without restricting oil delivery channels.
Integrated Safety Bypass Assembly
Built with a precise internal bypass valve that ensures continuous oil flow to vital crankshaft bearings during cold-weather starts or media loading.
Thick-Walled Canister Architecture
Constructed using a rugged cold-rolled steel shell that easily resists high oil pressure spikes and road vibration without risking structural fatigue.
High-Torque Thread Engagement
Machined with an exact 1"1/2-12UNF mounting interface to prevent loosening under heavy engine thermal cycles and high-vibration logistics use.
LF3854 Technical Specifications
| Parameter Profile | Engineering Data |
|---|---|
| Product Classification | Spin-On Engine Lubrication Oil Filter |
| Part Identification | LF3854 |
| Outer Body Diameter (D1) | 123.0 mm |
| Gasket Seating Diameter (D2) | 120.0 mm |
| Inner Gasket Track (D3) | 112.0 mm |
| Mounting Thread Size (D7) | 1"1/2-12UNF Internal |
| Total Canister Height (H1) | 126.0 mm |
| Seating Base Height (H2) | 123.0 mm |
| Gasket Profile Thickness (H3) | 6.0 mm |
| Bypass Valve Count | 1 Integrated Unit |
Primary Cross References & Alternative Interchanges
LF3854 Target Applications
This heavy-duty lube spin-on element delivers clean oil flow across commercial distribution trucks, medium-duty logistics transport platforms, and urban hauling fleets.
1. Isuzu Elf & Forward Commercial Trucks
- Isuzu NPR Truck Series: Reliable oil purification for medium-duty distribution trucks, including the Isuzu NPR 75, NPR 81, and alternative NPR 82 urban logistics platforms.
- Isuzu NQR Cargo Transports: Direct engine block protection for the high-capacity Isuzu NQR 75 L-5LX commercial transport configurations.
2. Isuzu Heavy Duty Transport & Utility Fleets
- Isuzu Forward F-Series Vehicles: Provides robust engine lubrication filtering for heavy-duty commercial transport trucks, covering both the Isuzu FSR regional hauling lines and FTR long-haul logistics fleets.
- Isuzu Specialized Utility Units: Main oil circuit purification for the extended Isuzu VU, LT, and LW commercial vehicle and passenger transport chassis arrays.
