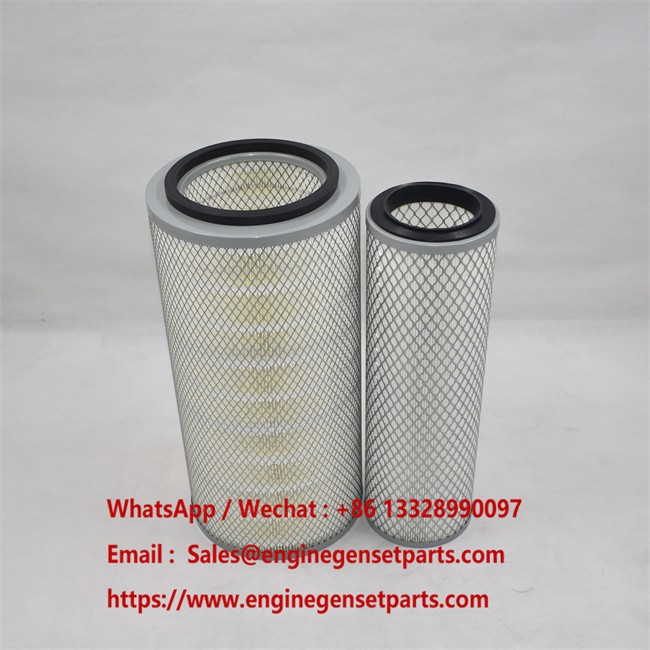

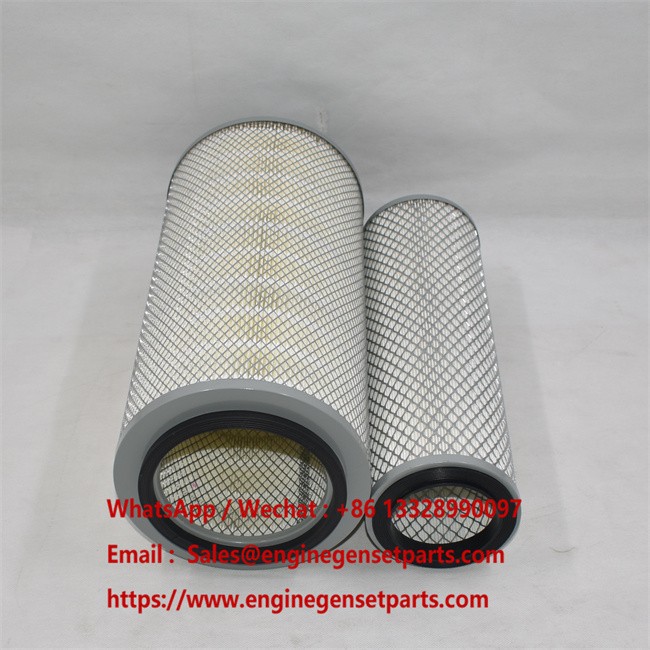

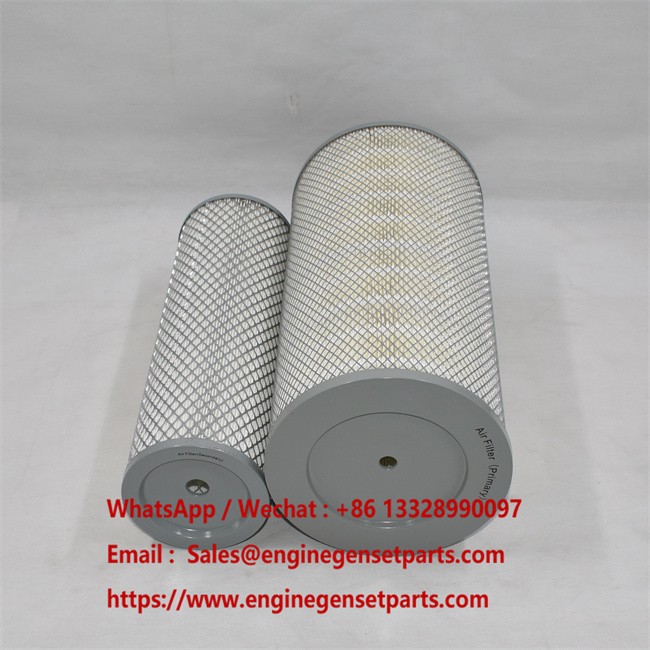

K2040 Industrial Air Filter for Rietschle TR 60 Vacuum Pumps
Precision Engineering for High-Performance Vacuum Systems
Product Highlights
Precision-engineered for Rietschle TR 60 D, TR 60 DV, and TR 61 DV vacuum pump systems.
A high-quality alternative to Mann Filter C 69/1, HiFi SA 19941, and SF Filter SL 8250.
Designed with exact dimensional tolerances (147.0 mm height) for optimal air intake.
Prevents particulate ingress, significantly reducing mechanical wear and maintenance.
Detailed Product Description
The Role of Vacuum Pump Air Intake Filtration
An industrial air filter is designed to remove contaminants from the air before it enters the compression or vacuum chamber of a pump. The K2040 acts as the primary barrier against atmospheric dust and particulate matter. In precision vacuum applications, clean air intake is critical to maintaining the tight tolerances of internal rotors and vanes, preventing scoring and premature pump failure.
Reliable Performance in Industrial Applications
In demanding manufacturing environments, vacuum pumps often suffer from decreased efficiency due to clogged or low-quality filters. The K2040 addresses these pain points by utilizing a high-retention filter media that maintains structural integrity under vacuum pressure. This ensures that operators of Rietschle TR 60 series pumps experience stable vacuum levels and consistent performance even in dusty industrial settings.
Why Choose AYREST Filtration?
AYREST specializes in high-standard aftermarket filtration that bridges the gap between expensive OEM parts and unreliable generic alternatives. Our K2040 features:
- Precise Sealing Dimensions: Technical specifications match the $51.0\text{ mm}$ (A) and $31.0\text{ mm}$ (B) diameters required for Rietschle housings.
- Low Differential Pressure: Optimized media design allows for maximum airflow, preventing pump overheating.
- Structural Durability: Reinforced construction resists collapse under high suction cycles.
Broad Industry Application
This air filter is essential for facilities utilizing vacuum technology for packaging, printing, wood processing, and pneumatic conveying. Whether you are running a single TR 60 D or a large centralized vacuum system, the K2040 provides the protection necessary for non-stop industrial operation.
Technical Specifications
| Model Number | K2040 |
| Product Style | Cylindrical Air Filter Element |
| Dimension A (OD) | 51.0 mm |
| Dimension B (ID Top) | 31.0 mm |
| Dimension C (ID Bottom) | 5.2 mm |
| Height (H) | 147.0 mm |
| Media Type | High-Efficiency Cellulose / Synthetic Blend |
Cross Reference
Application Industry
- 🚩 Industrial Vacuum Technology: Specifically for Rietschle TR 60 D, TR 60 DV, and TR 61 DV pumps.
- 🚩 Packaging Machinery: Ensuring vacuum integrity for sealing and lifting.
- 🚩 Graphic Arts & Printing: Maintaining dust-free air for high-speed printing presses.
- 🚩 Manufacturing & Automation: Protecting pneumatic systems and vacuum grippers.
Quality and Certification
Dimensional Accuracy: Every batch is verified against a 147.0mm height standard to ensure zero-bypass installation.
Flow Bench Tested: Media is tested to ensure it meets the airflow requirements of Rietschle pump specifications.
ISO Standards: Manufacturing follows rigorous quality control protocols to ensure consistency across bulk orders.
Technical FAQ
Q: How do I know when to replace my vacuum pump air filter?
A: A vacuum pump air filter should be replaced if you notice a drop in vacuum pressure, an increase in pump operating temperature, or visible dust accumulation on the media. For Rietschle TR 60 pumps, regular inspection every 500-1000 hours is recommended.
Q: Is the K2040 a direct replacement for the Mann C 69/1?
A: Yes, the K2040 is engineered to the same technical specifications as the Mann Filter C 69/1, ensuring a perfect fit and identical filtration performance.
Q: What happens if I operate my Rietschle pump without a clean air filter?
A: Operating without a functional filter like the K2040 allows particulates to enter the pump chamber. This causes abrasive wear on vanes and rotors, leading to a permanent loss of vacuum depth and expensive mechanical repairs.
Q: Can the K2040 withstand high humidity environments?
A: The K2040 utilizes treated filter media designed to resist moisture absorption, preventing the media from swelling and restricting airflow in humid industrial conditions.
Q: What are the primary dimensions of the K2040?
A: The K2040 features an outer diameter of $51.0\text{ mm}$, an inner diameter of $31.0\text{ mm}$, and a total height of $147.0\text{ mm}$.
