Product Description

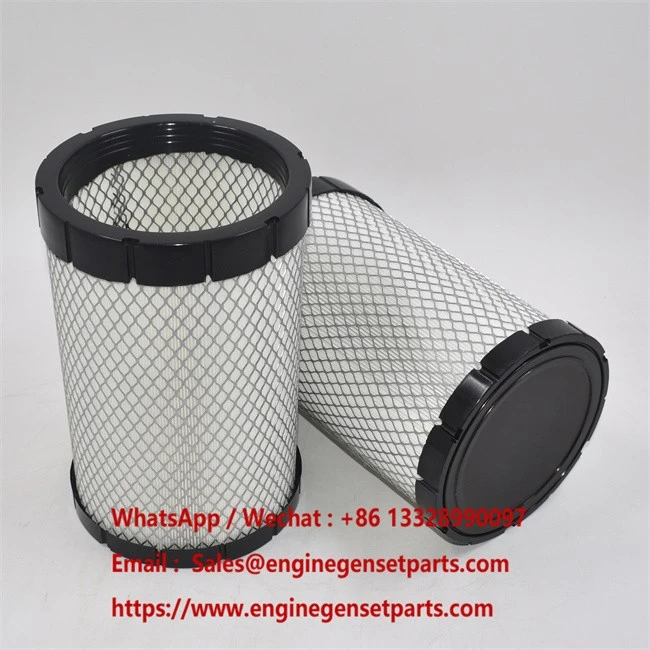

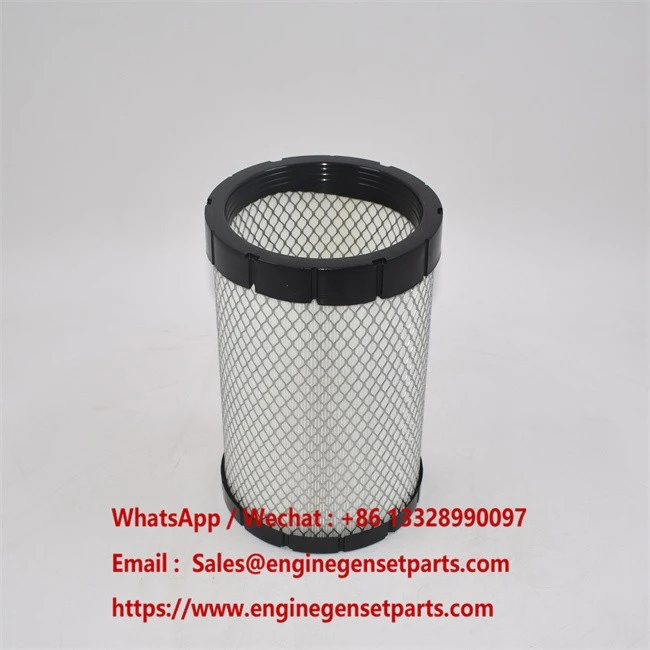

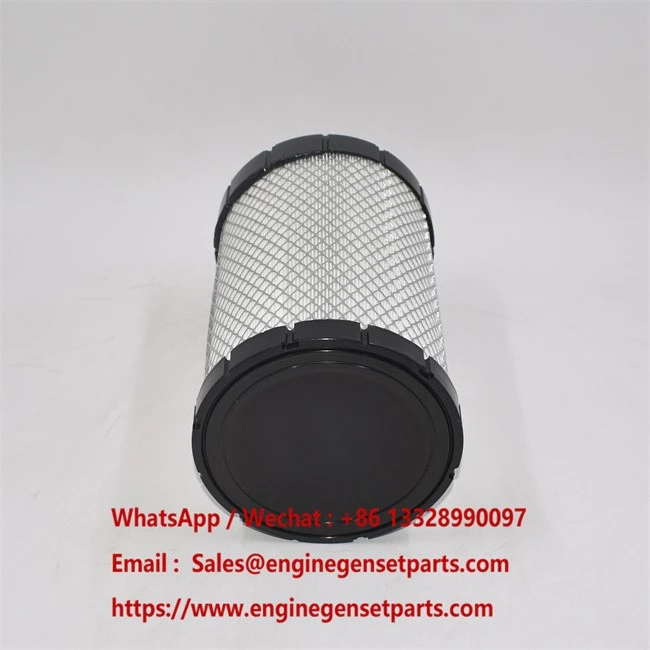

Engine Air Filter P617645 for John Deere features rigid internal support mesh paired with radial sealing molded end caps. Designed specifically for John Deere 8030 and 8R tractors, it delivers low airflow resistance, protects turbochargers from airborne abrasion, and maintains optimal engine combustion efficiency in dusty field environments.
Core Strengths
Radial Seal Elastomer End Ring
Soft urethane gasket provides continuous, airtight compression fit against the air cleaner housing to stop dust bypass.
Expanded Metal Inner Core
Corrosion-resistant internal cage prevents pleat collapse under high intake vacuum and heavy air engine loads.
Dust-Resistant Synthetic Pleat Pack
Evenly spaced filtration pleats maximize surface area to capture abrasive dust while minimizing airflow restriction.
Rugged Outer Mesh Guard
Steel diamond mesh jacket protects delicate filter media against damage during handling and severe vibration.
Technical Specifications
| Outer Diameter | 184.1 mm (7.25 inch) |
| Inner Diameter | 146.5 mm (5.77 inch) |
| Length | 297.4 mm (11.71 inch) |
| Primary Application | JOHN DEERE RE210103 |
OE Reference & Application Scenarios
OE / Cross Reference Numbers
Donaldson: P617645 | Fleetguard: AF26336 | HiFi: SA 16526 | John Deere: RE210103
Operational Scenarios
Equipment Applications
JOHN DEERE Sprayers: 4930 (JOHN DEERE 6090H)
JOHN DEERE Tractors (8030 / 8030T Series): 8130 (6090H), 8230 (6090H), 8230T (6090H), 8330 (6090H), 8330T (6090H), 8430 (6090H), 8430T (6090H), 8530 (6090H)
JOHN DEERE Tractors (8R / 8RT Series): 8225R (6090H / PSS 9.0L TIER 3), 8235R (PSX 9.0L), 8245R (PSS 9.0L / TIER 3), 8260R (PSX 9.0L), 8270R (PSS 9.0L / TIER 3), 8285R (PSX 9.0L), 8295R (PSS 9.0L / TIER 3), 8295RT (6090H), 8310R (PSX 9.0L), 8310RT (6090), 8320R (PSS 9.0L / TIER 3), 8320RT (6090H), 8335R (PSX 9.0L), 8335RT (6090), 8345R (PSS 9.0L / TIER 3 / 6090H), 8345RT (6090H), 8360R (PSX 9.0L), 8360RT (6090), 8370R (PSS 9.0L)
Inspection & Quality Testing Process
Visual Media Structure Audit
Inspection of pleat spacing uniformity and adhesive bead distribution along the inner and outer support mesh.
Dimensional Fits Verification
Caliper measurement of overall length, inner diameter, and outer diameter to guarantee strict factory tolerances.
Radial Seal Elasticity Check
Compression testing of end cap urethane material to ensure persistent elasticity under extreme temperatures.
Air Flow Leakage Test
Pressurized air tightness audit across end caps to verify absolute sealing prior to final packaging.
Frequently Asked Questions (FAQ)
Q: Which primary John Deere OEM part number does this air filter replace?
It serves as a direct aftermarket replacement for John Deere part number RE210103.
Q: Is this radial seal air filter suitable for John Deere 8030 series tractors?
Yes, it fits all 8030 and 8030T series tractors including 8130, 8230, 8330, 8430, and 8530 models.
Q: How does radial seal technology prevent engine dusting?
The flexible urethane end cap compresses snugly around the canister intake tube, forming a seal resistant to engine vibration.
Q: Can this primary air filter element be cleaned using compressed air?
Light blow-outs from the inside out are acceptable, but complete replacement is advised when restriction limits are reached.
Q: Why is clean air filtration vital for turbo-charged diesel engines?
Unfiltered dust severely erodes turbocharger compressor blades and accelerates cylinder liner wear, causing power loss.
