China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of af1606k laf9538 air filter in China. Welcome to wholesale original and genuine af1606k laf9538 air filter from our factory. Contact us for cheap products and OEM service.
AF1606K Air Filter
Product Description

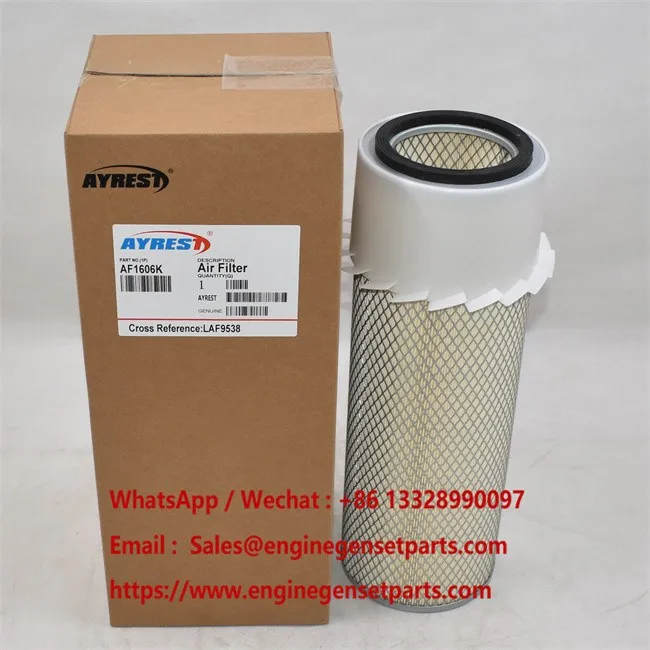

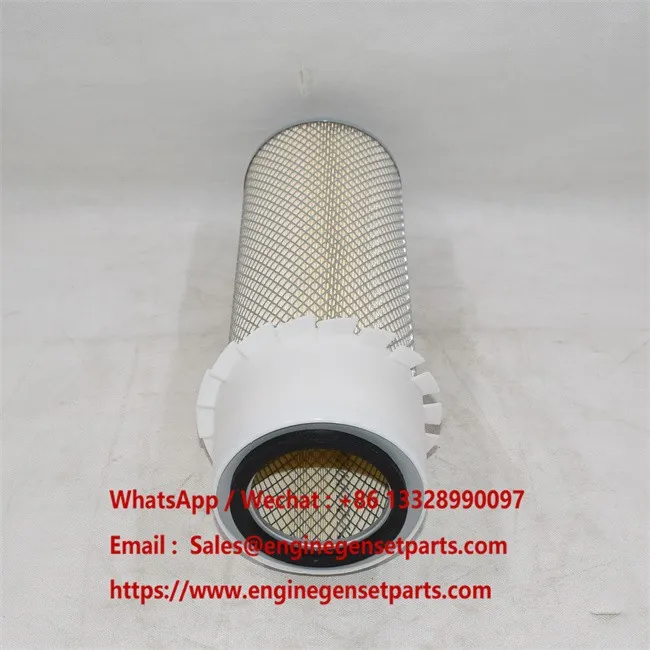

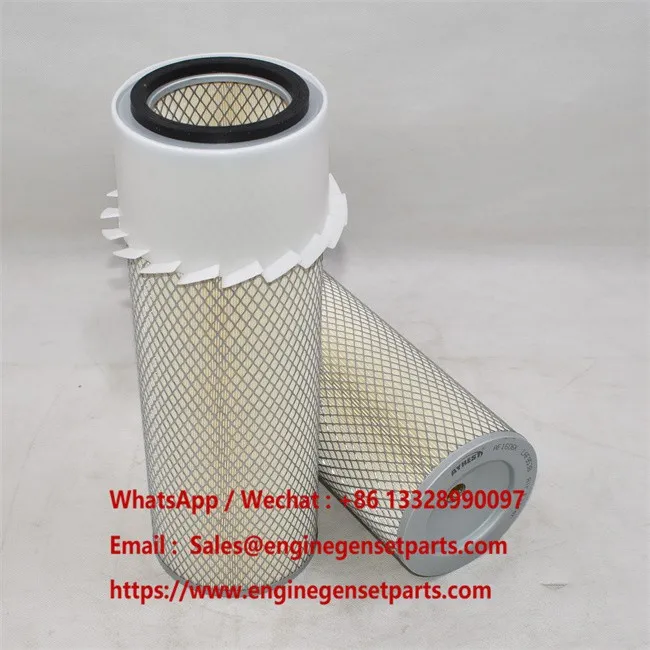

AF1606K Air Filter delivers exceptional combustion protection by blocking high concentrations of abrasive airborne dust, grit, and industrial debris. Featuring a durable external finned shroud for preliminary centrifugal air separation, this heavy-duty element incorporates specialized structural dimensions-with an outer diameter of 156.0 mm and an overall height of 395.0 mm-to maximize filtration surface area while maintaining stable pressure drop metrics. This reliable safety filter ensures continuous engine intake purity for diverse machinery fleets, specifically optimized for BOBCAT (2400/943/953) loaders, CASE (1840/1845/580 K/580 SK) backhoes, and DOOSAN DAEWOO (E 20/E 30/E 50) systems. It further supports demanding operations including GEHL SL series skid steers, INGERSOLL RAND P 100/125/175 compressors, JCB 520/525/530/540 telehandlers, GROVE cranes, and JOHNSTON SWEEPERS Serie 600 vehicles.
Technical Specifications
| Structural Component | Metric Measurement |
|---|---|
| Filter Style | Cylindrical Air Cleaner with Fins |
| Outer Diameter 1 (D1) | 156.0 mm |
| Outer Diameter 2 (D2) | 133.0 mm |
| Inner Diameter 3 (D3) | 82.0 mm |
| Total Height 1 (H1) | 395.0 mm |
| Body Height 2 (H2) | 385.0 mm |
| Internal Height 3 (H3) | 363.0 mm |
Cross Reference & OEM Interchange
Vehicle & Equipment Application List
Product Installation Guide
Housing Cleanout
Shut down the engine entirely. Open the air cleaner canister clips, remove the old spent element, and use a clean towel to thoroughly wipe out all accumulated dust from the interior housing walls.
Radial Seal Check
Inspect the internal seating surface of the new AF1606K Air Filter for any wrinkles or compound irregularities. Ensure the plastic finned shroud is securely attached.
Axial Alignment
Push the element firmly over the internal sealing mandrel inside the housing. Press inward from the base until the filter seats completely and square against the end-plate.
Enclosure Security
Re-attach the housing cover securely, making sure the dust evacuation valve faces downward. Snap the retention clamps shut tightly to prevent raw air bypass.
