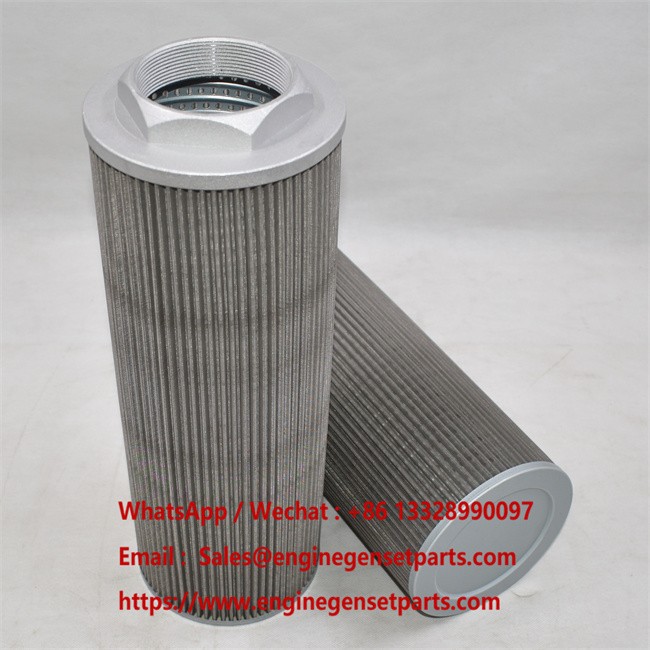

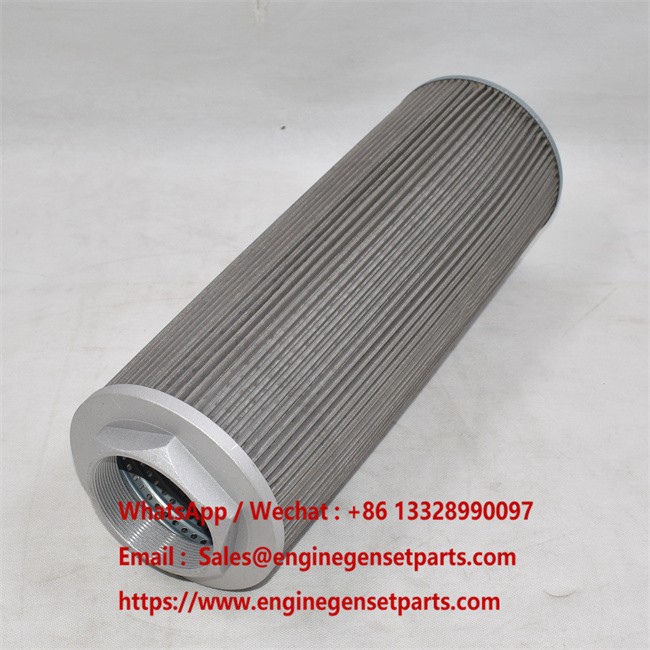

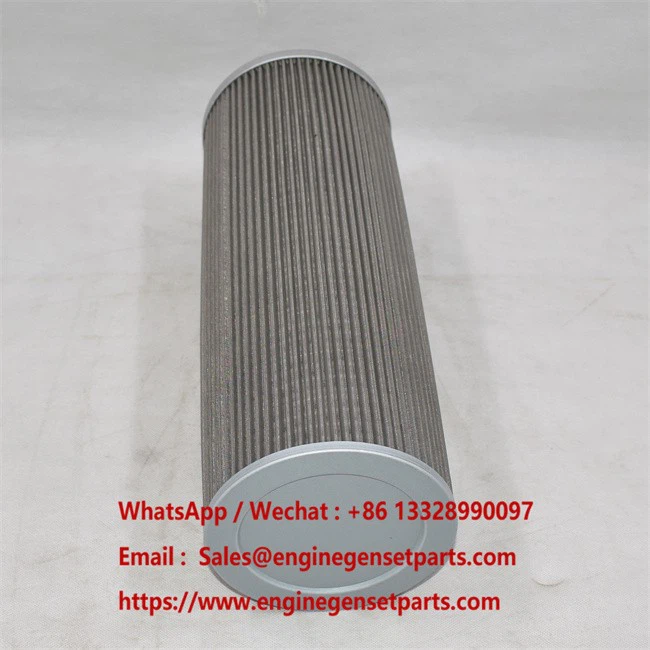

WU-1000X180 Hydraulic Filter Element
High-Volume Suction Protection for Heavy Industrial Gear
WU-1000X180 Product Highlights
WU-1000X180 Technical Specifications
Verified to OEM Standard Tolerances to guarantee seamless field installation.
| Parameter | Metric (mm) | Imperial (inch) |
|---|---|---|
| Outer Diameter (D1) | 150.0 mm | 5.91 in |
| Inner Diameter (D2) | 105.0 mm | 4.13 in |
| Thread 1 (D7) | 3"-BSP | 3"-BSP |
| Thread 2 (D8) | 3"-BSP | 3"-BSP |
| Height 1 (H1) | 429.0 mm | 16.89 in |
| Height 2 (H2) | 401.0 mm | 15.79 in |
WU-1000X180 Comprehensive Cross-Reference
- Leemin: WU-1000X180G-J
- HiFi Filter: SH 77668
- * Fleetguard / Donaldson / Baldwin / Wix: Contact for technical interchange verification.
WU-1000X180 Key Operational Advantages
Absolute Micron Control: High Beta Ratio (β1000) prevents "silt-lock" of proportional and servo-valves.
Optimized Flow Dynamics: Prevents pump cavitation and lowers parasitic engine load for improved fuel economy.
Superior DHC: Massive surface area reduces replacement frequency and lowers TCO.
Compatibility Matrix
Heavy Industrial Gear: Large-scale hydraulic power units (HPUs).
Engine Support: Auxiliary filtration for high-displacement engines (Cummins QSK, CAT 3500 series).
Quality Assurance
Tested to ISO 16889 & ISO 4548 standards. Rigorous 12-Point QC Inspection covering raw material wire-mesh density to final thread accuracy.
WU-1000X180 Environment & Maintenance Protocol
Standard Conditions: Indoor; change per differential pressure indicators.
Severe Conditions: High-vibration/dust sites require frequent indicator monitoring.
⚠️ STRICTLY PROHIBITED: Never clean with compressed air. This causes microscopic ruptures and voids all equipment protection.
Expert Perspective: Proprietary metal mesh backing prevents "pleat migration". Regular oil analysis is recommended to ensure ISO 4406 cleanliness compliance.
Direct Factory Procurement & Cost-Efficiency
Bypass distributor markups while securing high-standard OEM-equivalent filtration.
