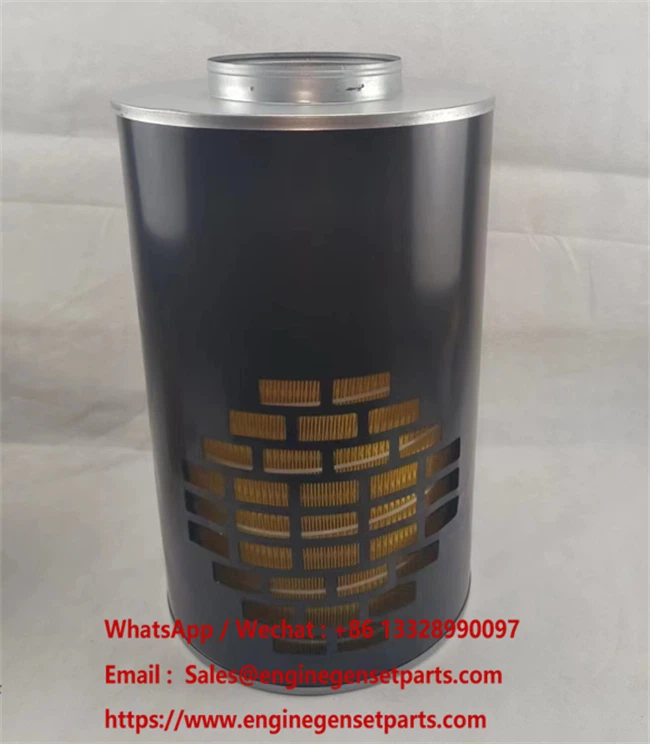

P524838-016-140 Air Induction Filter
High-Volume Air Delivery | Permanent Vacuum-Tight Seal Technology
P524838-016-140 Core Product Features
Leak-Proof Radial Interface
Employs high-compression gasket technology to create a permanent, vacuum-tight seal that eliminates unfiltered air bypass.
Multi-Density Synthetic Media
Utilizes high-efficiency fibers to trap microscopic abrasives, shielding critical internal engine components from premature wear.
Reinforced Structural Cage
Built with a heavy-duty frame to resist pleat bunching and housing collapse during intense high-vacuum intake cycles.
High-Volume Air Delivery
Optimized for peak oxygen induction with minimal resistance, maintaining engine thermal efficiency and power output.
P524838-016-140 Technical Specifications
Dimensions for the P524838-016-140 are strictly verified to OEM standard tolerances to ensure chassis compatibility and seal stability.
| Parameter | Imperial Measurement | Metric Measurement |
|---|---|---|
| Model Number | P524838-016-140 | P524838-016-140 |
| Max Body Diameter | 13.50 inch | 343.00 mm |
| Overall Length | 25.80 inch | 655.32 mm |
| Body Length | 24.00 inch | 609.60 mm |
| Outlet Diameter | 7.00 inch | 177.80 mm |
| Rated Airflow | 1398 cfm | 39.6 m³/min |
| Airflow Restriction | 7.00 inch H2O | 17.44 mbar |
| Style | Disposable | Disposable |
Engineering Note: This model features proprietary mold development. 2D/3D CAD data can be provided upon formal technical inquiry.
P524838-016-140 Direct Interchange (Cross Reference)
The P524838-016-140 serves as a 100% interchangeable, OEM-equivalent solution for these major part numbers:
Operational Advantages
- Superior Dust Capacity (DHC): Synthetic fiber technology allows for deeper particulate loading, significantly extending the filter's operational lifespan.
- Fuel Efficiency Gains: Low inlet resistance allows turbochargers to work within their ideal efficiency maps, reducing fuel-wasting parasitic drag.
- Extended Engine Life: By halting abrasive wear on piston rings and liners, the P524838-016-140 lowers the total cost of ownership (TCO) and delays major overhauls.
Maintenance, Quality & Standards
Verified Standards: Manufactured with a 15-year heritage and tested against ISO 5011 and ISO 16889 protocols.
12-Point Quality Check: Every P524838-016-140 unit undergoes a rigorous audit for pleat uniformity and seal elasticity.
Service Tip: Replace only based on restriction indicator readings, not visual appearance.
⚠️ Warning: Never use compressed air to clean the media, as this will destroy the fibers and cause engine damage.
Factory-Direct Wholesale Support
Competitive pricing available for bulk fleet orders. Request a free cross-reference check to ensure 100% fitment for your specific equipment.
