China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of SH65001 Hydraulic Return Filter for Terex Equipment HR14 Mini in China. Welcome to wholesale original and genuine SH65001 Hydraulic Return Filter for Terex Equipment HR14 Mini from our factory. Contact us for cheap products and OEM service.

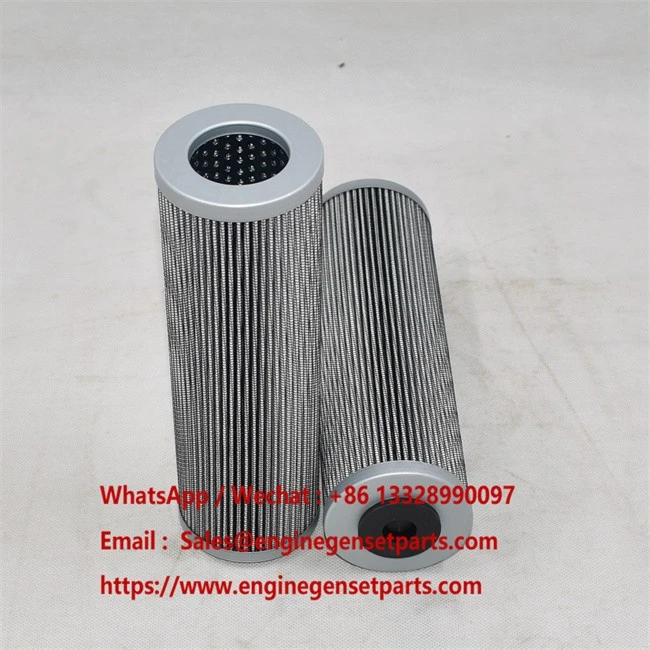

SH65001 High-Precision Glass Fiber Hydraulic Return Line Element
Beta 1000 rating using multi-layered Inorganic Glass Fiber matrix.
Cold-Start Valve
Integrated 2.0 bar bypass valve ensures thermal event safety.
16-Bar Collapse
High pressure tolerance engineered for heavy industrial circuits.
OEM Interchange
Verified replacement for Rexroth, Internormen & Fleetguard.
Technical Efficiency Analysis
The Mechanics of Reservoir Protection
In advanced hydraulic systems, the return line filter serves as the final barrier before oil re-enters the reservoir. The SH65001 is specifically designed to intercept "wear debris" generated by pumps and actuators. By removing these particles at the return stage, it prevents silt accumulation in the tank, protecting the lubrication circuits of Volvo and Terex machinery.
Glass Fiber vs. Conventional Media
The primary failure of standard cellulose is "dirt shedding" during surges. Our SH65001 utilizes Inorganic Glass Fiber with a fixed-pore structure, ensuring contaminants remain trapped even under fluctuating pressures, maintaining Beta 1000 absolute efficiency.
High-Utilization Reliability
The 70mm x 219mm geometry is optimized for high-flow return circuits, reducing component friction and lowering operating temperatures for sensitive proportional valves.
Extreme Climate Sealing
Equipped with high-grade Nitrile (NBR) gaskets, verified to maintain a hermetic seal from -30°C to +100°C, eliminating common bypass leakage causes.
A: It indicates "Absolute" filtration. For every 1000 particles of 12 microns entering, only 1 passes through, offering significantly higher protection than nominal filters.
Q2: Is the SH65001 a direct replacement for Internormen 300175?
A: Yes. It is engineered to the exact dimensional and technical specifications of Internormen 300175 and 310247 for a perfect drop-in fit.
Q3: Why does my Volvo loader require a glass fiber filter?
A: High-performance machines use sensitive valves. Glass fiber provides the absolute cleanliness required to prevent valve sticking and pump wear.
