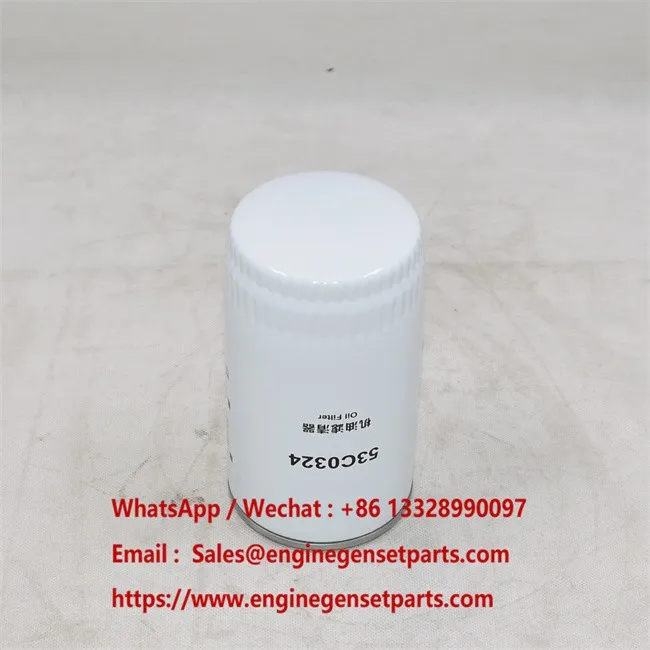

53C0324 Spin On Full Flow Lube Filter

53C0324 Spin-On Full-Flow Lube Filter is a high-efficiency oil treatment canister engineered for Liugong 53C0324, Fleetguard LF699, and Donaldson P554407 circuits, delivering vital anti-wear engine lubrication protection for heavy-duty earthmovers, industrial compressors, and agricultural tractors.

Send Inquiry

Chat Now

P550065 Oil Filter Kit

P550047 Lube Filter

Description

China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of 53c0324 spin on full flow lube filter in China. Welcome to wholesale original and genuine 53c0324 spin on full flow lube filter from our factory. Contact us for cheap products and OEM service.

Full-Flow Series

53C0324 Spin-On Full-Flow Lube Filter

Product Description

53C0324 Spin-On Full-Flow Lube Filter is an engineered heavy-duty filtration canister designed to maintain the purity of engine oil under severe thermal loads and intensive mechanical operations. Encased in a thick, impact-resistant steel housing, this spin-on unit contains a premium pleated cellulose media block that maximizes the active surface area to securely trap carbon soot, metallic wear crystals, and airborne dust particles. The internal engineering integrates an exact dual-stage bypass valve mechanism rated between 0.8 bar and 1.2 bar, guaranteeing uninterrupted oil delivery to critical friction points during cold weather startups or structural media saturation. Reinforced by a rigid internal support tube that withstands a high collapse burst rating of 6.9 bar, this full-flow assembly incorporates an oil-resistant sealing gasket to eliminate external leak paths, sustaining smooth lubrication flow across vocational construction fleets and standby industrial engines.

Product Key Advantages

Premium Cellulose pleat Matrix Maximizes contaminant mass collection limits while preventing early oil-loop restriction to shield vital engine bearings.

Integrated Dual-Stage Bypass Valve Calibrated precisely at 0.8 to 1.2 bar to maintain consistent oil circulation and prevent oil starvation under extreme conditions.

Heavy-Gauge Anti-Collapse Core Built to endure severe hydraulic pressure surges with a certified 6.9 bar collapse burst structural resistance limit.

Rugged All-Steel Spin-On Shell Features a robust, impact-absorbing metal casing that resists external puncture damage and structural fatigue in high-vibration engine bays.

Technical Specifications

Engineering Parameter	Design Profile & Metric Specification
Product Style	Heavy-Duty Spin-On Full-Flow Lube Filter
Media Formulation	High-Cleanliness, Resin-Cured Pleated Cellulose
Total Assembly Length	174 mm
Mounting Thread Size	3/4-16 UN
Low-Range Bypass Setting	0.8 bar
High-Range Bypass Setting	1.2 bar
Collapse Burst Resistance	6.9 bar

Cross Reference & OEM Interchange

LIUGONG 53C0324

FLEETGUARD LF699

DONALDSON P554407

MANN FILTER W 950/7 (W950/7)

SOGEFI FT 4805

Industrial & Equipment Application List

This heavy-duty spin-on lubrication canister provides exact physical drop-in placement and absolute oil-circuit protection across the following specialized machinery configurations and engine models:

AEBI Agricultural Tractors:

TP Series: TP460 outfitted with VM Motori R754 Euro 3 engines.
Viatrac Series: VT450 powered by VM Motori R754 Euro 4 diesel power units.

AKERMAN Agricultural Equipment:

Model 130: Configured with Volvo TD40GB industrial engines.
Model 150: Powered by high-output Volvo TD40KC diesel powertrains.

AMMANN Compactors & Rollers:

AC Series: AC110 (Perkins 1006.6 engine), AC70 (Perkins 1004.4 engine), and AC90 (Perkins 1004.4 engine).

ASV INCORPORATED Loaders:

RC Series Track Loaders: RC100 (Caterpillar 3024CT, Caterpillar 3054CT, or Perkins 1104C-44T engine options) and RC85 (Perkins 1104C-44 engine setups).

ATLAS COPCO Industrial Compressors:

XAS & QAS Series: QAS78 and XAS80 portable air compressor setups.

AVELING-BARFORD Vocational Machinery:

Industrial Tractors: Model 010, 08, 09, DC011, DC012, DC013, DC014, DC015 (Perkins 4.236); Model 113 (Perkins V8.540); Model 175, 185, 200, 230, LG, LG3, PM (Perkins 6.354 / T6.354 versions).
Motor Graders: ASG013, ASG113 (Perkins V8.540 engine) and TG012 (Perkins T6.354.4 engine).
Heavy Dump Trucks: RD05, RD07, and SY models utilizing Perkins 4.236 diesel engines.
