Premium Brake Air Circuit Moisture Control

Air Drying Tank SP245526

The Air Drying Tank SP245526 serves as the primary defense mechanism for high-pressure pneumatic pathways within modern commercial transport fleets and heavy vocational machinery. Precision-engineered to ensure absolute compatibility with LiuGong dump trucks and associated tipper platforms, this heavy-duty desiccant filter element effectively prevents moisture condensation and downstream piping oxidation. Utilizing an advanced spin-on canister layout with high-strength structural baseplates, it effortlessly manages continuous high-pressure cycles generated by massive heavy-duty vehicle air compressors. By incorporating high-performance coalescing media layers alongside premium molecular sieve beads, it isolates micro-droplets of engine oil, varnish, carbon, and atmospheric humidity before they can compromise sensitive valves, guaranteeing smooth, uninterrupted braking performance in challenging multi-stop haulage operations.

Product Advantages

01	Premium Molecular Sieve Desiccant Core Packed with an advanced, highly adsorbent polymer molecular sieve (desiccant beads) designed to aggressively depress the air dew point, preventing liquid water accumulation and sub-zero line freezing.
02	Integrated Coalescing Oil Filtration Features dedicated filtration layers that efficiently intercept micro-amounts of engine oil, carbon debris, and sludge carried over from the compressor, preventing pneumatic valve stickiness and freezing.
03	Heavy-Duty Pressure Shell Resistance Constructed with a reinforced steel outer shell and heavy-gauge threaded baseplate to securely withstand harsh vibration, constant high working pressures (typically supporting up to 13 bar or higher), and frequent purge valve venting shocks.
04	Extended System Component Lifespan Protects expensive pneumatic brake valves, air chambers, and clutch boosters from moisture-induced corrosion, drastically lowering overall vehicle fleet maintenance costs.

Technical Specifications

Based on the high-performance design and visual construction profile observed from file SP245526 WZDM (5).JPG, the technical configuration is mapped below to assist engineers and procurement managers with system verification:

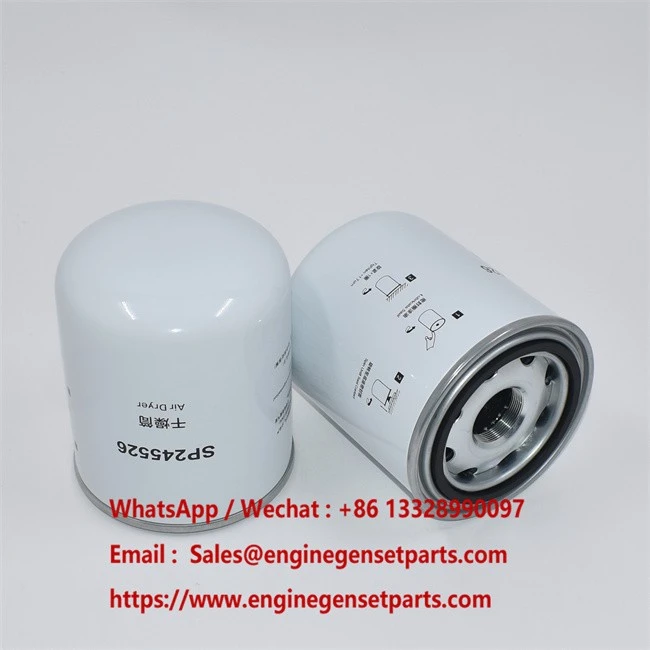

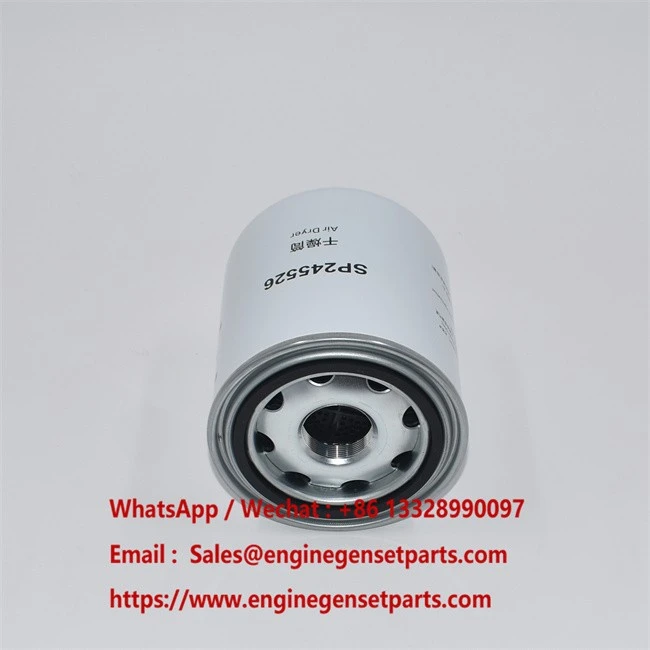

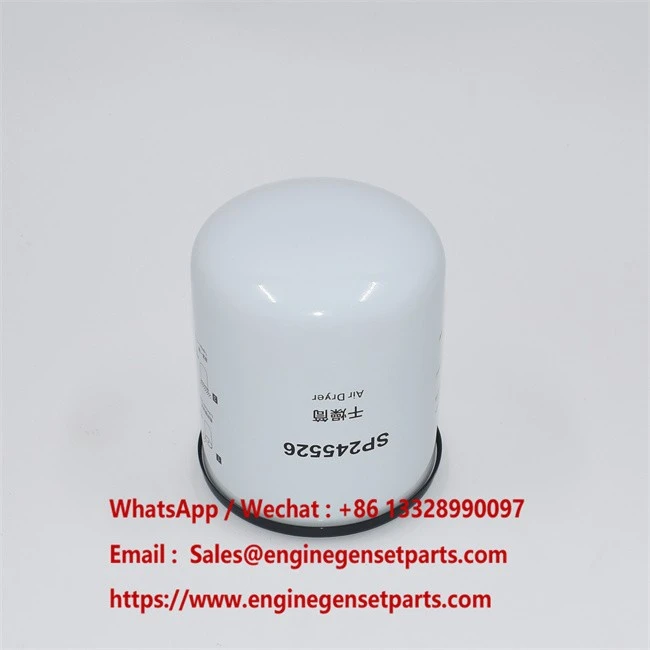

As displayed in the product file SP245526 WZDM (5).JPG, the premium white housing is clearly marked with the exact model number SP245526, the English nomenclature Air Dryer, the Chinese designation 干燥筒, and the standard step-by-step graphic installation diagrams (including oil-coating and rotational tightening instructions) on the canister body to facilitate secure field maintenance.

OE Cross-Reference Interchange

This industrial air system component is strictly manufactured to match precise dimensions and technical performance criteria, providing an exact drop-in interchange for the following references:

LiuGong: SP245526

Application Category: Dump Truck Brake Air Dryer

Certified Vehicle & Equipment Application Matrix

The industrial-grade Air Drying Tank SP245526 is heavily deployed and certified for continuous operations across high-capacity earthmoving equipment and heavy-duty vocational transport vehicles.

Targeted Application Scenarios
