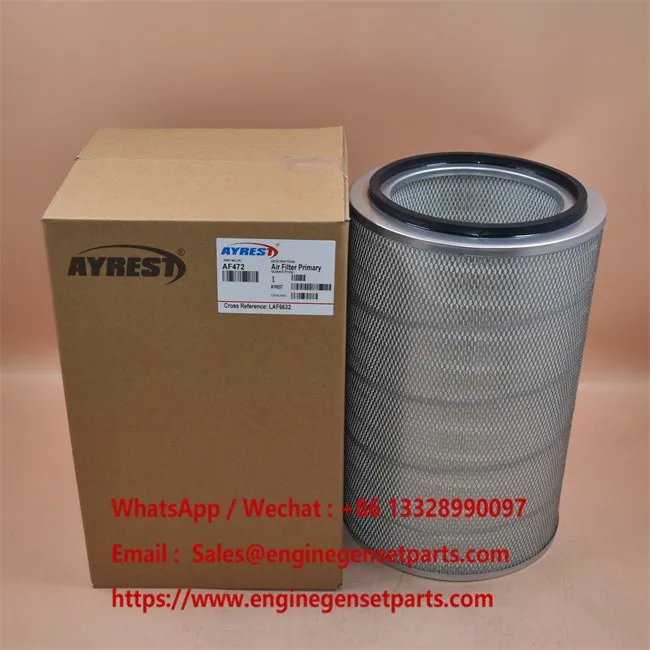

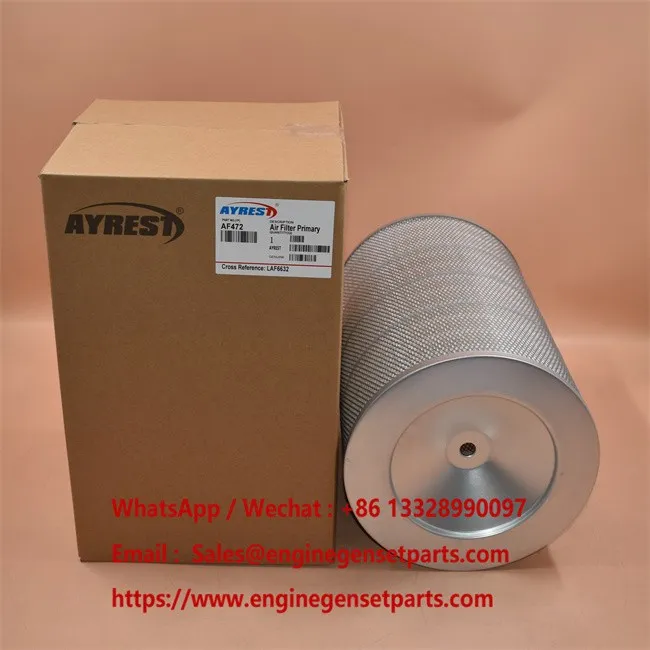

AF472 LAF6632 Air Filter Replacement Part

AF472 Air Filter acts as an ultra-high capacity primary air induction purifier, specifically configured to manage massive volumetric airflow and provide absolute structural particulate barrier isolation for high-displacement heavy machinery and heavy-duty logistics fleets.
Send Inquiry
Chat Now
Description

China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of af472 laf6632 air filter replacement part in China. Welcome to wholesale original and genuine af472 laf6632 air filter replacement part from our factory. Contact us for cheap products and OEM service.



Oversized Machinery Series

Cylindrical Primary Intake Cleaner

Cross-Reference Hub:
Fleetguard AF472 | Donaldson P181002 | Luberfiner LAF6632

Technical Description

ThisAF472 Air Filter incorporates a premium, high-density non-flame resistant media matrix supported by dual galvanized steel inner and outer protective liners. Engineered to maintain exceptional mechanical stability under critical vacuum loads, it optimizes initial pressure drop profiles while capturing sub-micron grit. The precision-molded axial sealing margin guarantees a uniform, airtight compression fit within extreme-duty air cleaner canisters to stop bypass leakage.

AF472 Key Performance Advantages

Massive Architecture 01

Heavy-duty outer and inner structural steel grids enclose the media matrix, preventing element buckling or pleat compression during peak turbocharger induction demands.

Dust Storing Capability 02

Extensively expanded deep-pleat geometry provides a vast active filtering surface area, maximizing total dirt holding capacity (DHC) while avoiding rapid restriction increase.

Axial Compression 03

Formulated from a high-resilience elastomeric material, the heavy end-cap profile forms a continuous positive friction seal against the canister face, completely stopping abrasive dust bypass.

Lifecycle Stabilization 04

Delivers constant, highly-purified induction volume to support steady thermal output, eliminating premature upper cylinder wear and lowering fleet maintenance overhead.

AF472 Technical Specifications

Filter Classification Cylindrical Primary Air Induction Element
Media Configuration Heavy-Duty Non-Flame Resistant
Outer Diameter (D1) 308.0 mm
Inner Diameter (D2) 196.0 mm
Top Bolt Hole Diameter (D3) 18.0 mm
Total Assembly Height (H1) 471.0 mm
Internal Media Height (H2) 461.0 mm
Gasket Base Profile Height (H3) 406.0 mm
Full Interchange Matrix: Fleetguard AF472, HiFi Filter SA 10422, Donaldson P181002, Luberfiner LAF6632, Mann Filter C 31 1226, Inline FA11634, Baldwin PA1846

AF472 Industrial Applications

1. Underground Mining, Deep Extraction & Massive Excavators

Engineered to operate in high-risk subterranean and open-cast extraction spaces, where massive displacement engines require unimpeded air delivery despite dense, abrasive quartz and silica stone dust clouds.

ATLAS COPCO Subterranean Fleets: MT 431 Minetruck, MT 436 Minetruck underground haulers, ST 1520 Scooptram underground loader systems, and ROC 612 crawler blast-hole drill rigs.
KOMATSU Super Excavators: PC 1100-6 large-scale tracked mining shovels.
LIEBHERR Heavy Extraction Shovels: R 942, R 942 HD, R 952 HD, R 952 Litronic crawler excavators, and HS 870 heavy duty lattice boom crawler crane setups.
2. High-Chaff Bulk Harvesting & Industrial Forestry Processing

Optimized with highly stable media pleats that resist clogging from high-volume organic chaff, clinging wood fibers, and airborne plant matter during intensive crop harvesting and clear-cutting loops.

AUSTOFT Sugarcane Processing: Sugar cane harvesting extraction systems (Recolteuse Canne A Sucre).
CASE IH High-Output Combines: 7000 and 7700 heavy harvesting machinery.
FENDT & VERMEER Industrial Agrilogistics: Fendt 9350 large-scale harvesters; Vermeer HG 6000 heavy-duty industrial horizontal grinders and wood processors.
SILVATEC Heavy Forestry Handlers: CHT 1700 industrial timber harvesters and log forwarders.
3. Heavy Earthmoving, Material Handling & Container Logistics

Provides reliable dust separation for high-tonnage wheel loaders and port logistics container handlers exposed to gritty coastal terminal yards and high-impact loading shock vibrations.

DOOSAN DAEWOO & HYUNDAI Wheel Loaders: Daewoo Mega 500 V heavy articulated loaders; Hyundai HL 770-7 quarry-class loaders.
CLARK & FIAT Quarry Loaders: Clark 175 B, 175 C heavy loaders; Fiat 945 B earthmovers.
LINDE Container Reach Stackers: C 4531 CH and H 320 high-capacity port container handling lifters.
TEREX Articulated Dump Trucks: 3066 C and TA 25 heavy-duty articulated site haulers.
PPM Cargo Hoists: ATT 600 all-terrain mobile hydraulic crane complexes.
4. High-Output Rental Power Plants, Mobile Compressors & Commercial Transport

Guarantees uninterrupted air purification for mega-watt stationary generators and multi-axle commercial freight trucks running over continuous, full-load industrial operational blocks.

ATLAS COPCO & DENYO Mobile Rental Power Generators: Atlas Copco QAS 300, QAS 400 diesel power complexes; Denyo DCA 400 SPK high-output soundproof generators.
HIMOINSA, ALFA & INMESOL Power Generation Blocks: Himoinsa HFW 290, HFW 300, HFW 305 T5, HFW 340, HFW 375, HFW 500, HSW 400 C; Alfa Generators AGWI-500T; Inmesol II 350 emergency systems.
INGERSOLL RAND Heavy Duty Compressors: DXL 850 H, HP 600 WPX, XHP 750 SCATX, XHP 750 SGM high-pressure portable air screw compressors.
RENAULT VI Heavy Vocational Logistics Trucks: GBH 260 6X4, GBH 280 6X4, GLM 280 6X4, TBH 260 6X4, TBH 280 6X4, TLM 280 6X4 severe-duty construction site tippers.
FIAT IVECO, MTU, LUGGER & 2H ENERGY Propulsion Units: 2H Energy CHR 50 R 13, GEM 250 P; Fiat Iveco CR 13TE6W, CR 13TE7W, CR 16TE1W marine/stationary diesel blocks; MTU Divers specialty arrays; Lugger NL 6140 A power setups.
FERRARI & SNVI Support Frameworks: SNVI TB 350 utility configurations; Ferrari 612 Scaglietti 5.7 V12 specialized high-performance platforms.
