China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of fuel filter ff2200 in China. Welcome to wholesale original and genuine fuel filter ff2200 from our factory. Contact us for cheap products and OEM service.

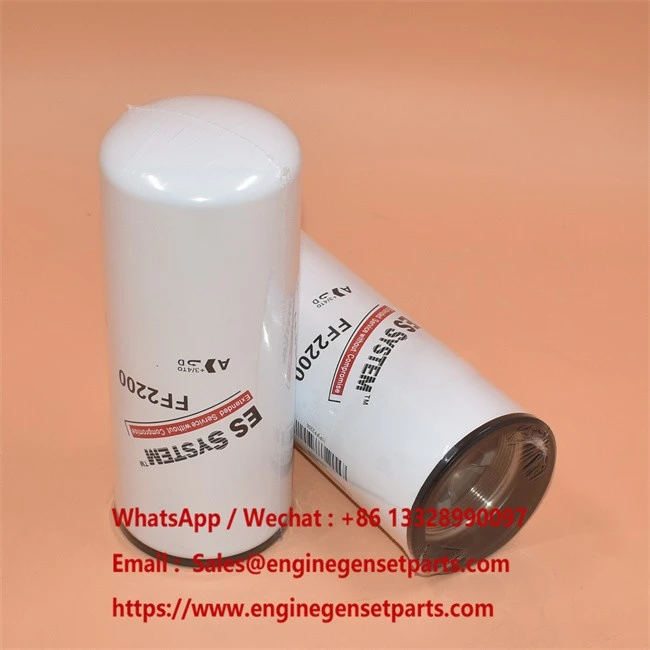

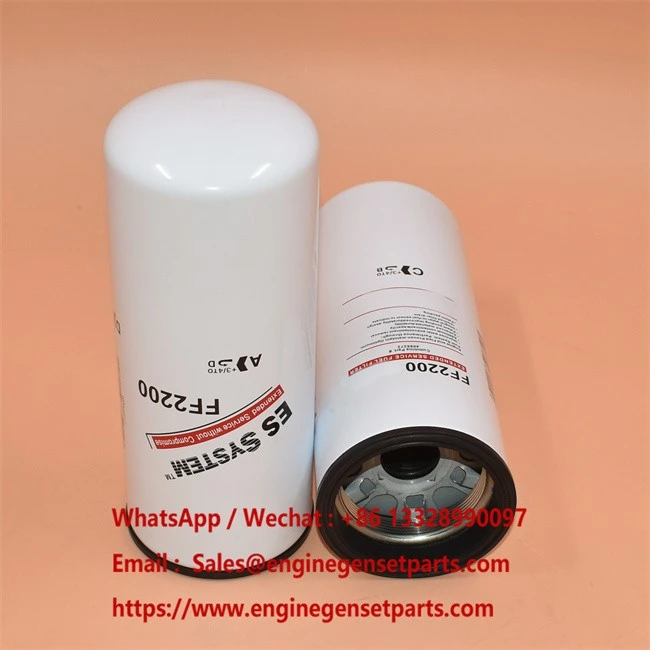

Heavy Duty Diesel Spin-On Fuel Filter FF2200 features high-capacity pleated synthetic media enclosed in a heavy-duty steel canister. Engineered for heavy-duty commercial trucks, mining excavators, and large power generation units, it maintains stable fuel flow, reduces injector tip erosion, and prolongs maintenance service intervals in high-load applications.
Core Strengths
- Extended Service Synthetic Media Matrix: Multi-density pleated synthetic media delivers exceptional dirt holding capacity, supporting extended drain intervals without pressure drop spikes.
- Precision M72 Internal Metric Threading: Heavy-duty M72 X 2-7H INT machine thread allows effortless spin-on installation and exact alignment with engine filter headers.
- High-Pulsation Structural Canister: Reinforced outer casing withstands severe pressure surges and continuous machine vibration typical in heavy construction work.
- Heat-Resistant Synthetic Gasket: Premium elastomeric perimeter seal resists hardening under high engine operating temperatures, preventing external fuel leakage.
Technical Specifications
| Style: | Fuel Filter |
| Efficiency: | 15 μm (15 microns) |
| Outer Diameter: | 94.0 mm |
| Inner Diameter: | 78.7 mm |
| Length: | 228.1 mm |
| Thread Size: | M72 X 2-7H INT |
| Minimum Order Quantity (MOQ): | 20 Pieces |
| Filtration Efficiency: | ≥ 99% at rated fuel flow |
| Impurity Removal Capability: | Captures micro-particles, abrasive dust, rust debris, and suspended solids down to 15 microns |
OE Reference & Application Scenarios
| OE / Cross Reference Numbers: | Fleetguard FF2200, Donaldson P552200 |
Operational Scenarios: Specialized for high-horsepower diesel engines used in mining, drilling, heavy transportation, and earthmoving under harsh dusty environments.
- Casagrande: B300 XP-2, B360 XP-2, B400 XP-2, B420 XP-2, B470 XP-2
- Cummins Engines: ISM, ISX, ISX 12, QST 30-1000, QST 30-1050, QST 30-1100, QST 30-1200, QST 30-760, QST 30-850, QST 30-900, QST 30-950, QSX 15, QSX 15 TIER III, QSX 15 TIER IV
- International Trucks: 5500i, PAYSTAR 5500i, PAYSTAR 5600i, PAYSTAR 5900i
- Kenworth: T 2000
- Liebherr: T 236 Litronic Plus Gen2
- Peterbilt: 389
- Volvo: R 100
Quality Inspection & Assurance Process
- Media Pore Size Verification: Testing synthetic media fiber density and pore distribution to ensure consistent 15μ rating.
- Thread Tolerance Inspection: Precision gauge checking on M72 X 2-7H internal threads for smooth fit and structural thread strength.
- High-Pressure Hydrostatic Test: Simulating extreme fuel circuit pressure spikes to confirm shell seam integrity and fatigue resistance.
- Cleanliness & Leak Audit: Final helium/air bubble leak testing and dust-free sealing before protective poly-wrap packing.
Frequently Asked Questions (FAQ)
Q: What is the minimum order quantity (MOQ) for part number FF2200?
The minimum order quantity for this heavy-duty spin-on fuel filter is 20 pieces per order.
Q: What micron rating does this fuel filter offer?
It features a 15μ (15 micron) efficiency rating, effectively stripping fine abrasive debris from the fuel line before reaching high-pressure pumps.
Q: Is this filter compatible with high-horsepower Cummins engines?
Yes, it is designed for heavy-duty engines including Cummins ISX, QSX15, and QST30 series used in mining and transport equipment.
Q: What thread specification is required for mounting this spin-on filter?
It uses an M72 X 2-7H INT metric thread, ensuring direct spin-on mounting on standard OEM filter headers.
Q: How does synthetic media benefit extended-drain operations?
Synthetic media provides higher dirt capacity and greater resistance to moisture breakdown compared to conventional paper, preventing premature blinding during long maintenance intervals.
