53C0302 Hydraulic Filter is a premium-grade heavy-duty cartridge element purposefully designed to deliver ultra-fine fluid contamination control and system component protection across high-pressure mobile and industrial hydraulic networks.
China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of hydraulic filter 53c0302 in China. Welcome to wholesale original and genuine hydraulic filter 53c0302 from our factory. Contact us for cheap products and OEM service.

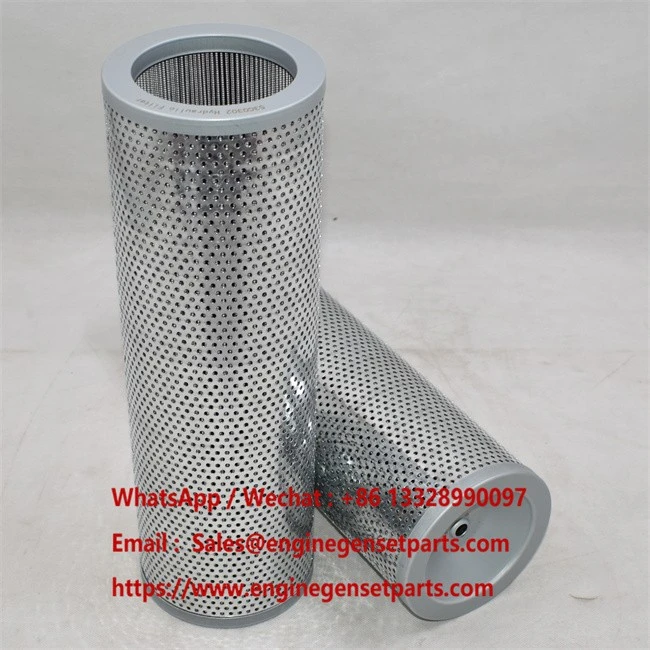

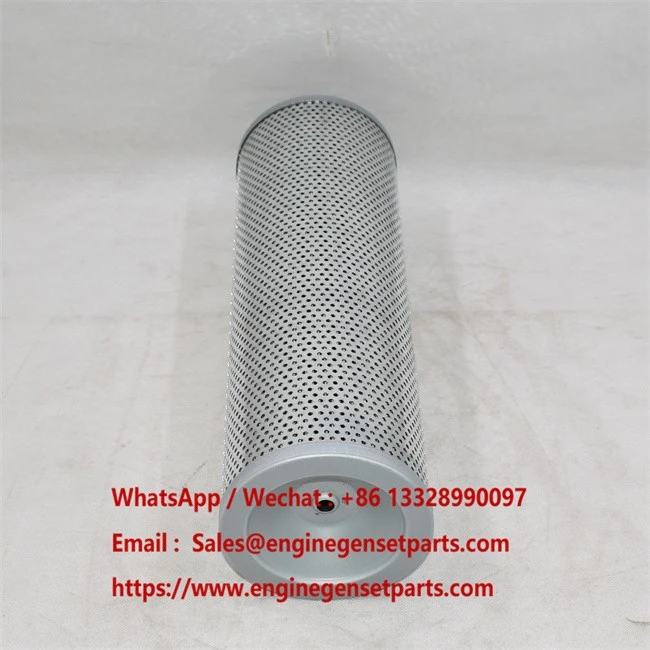

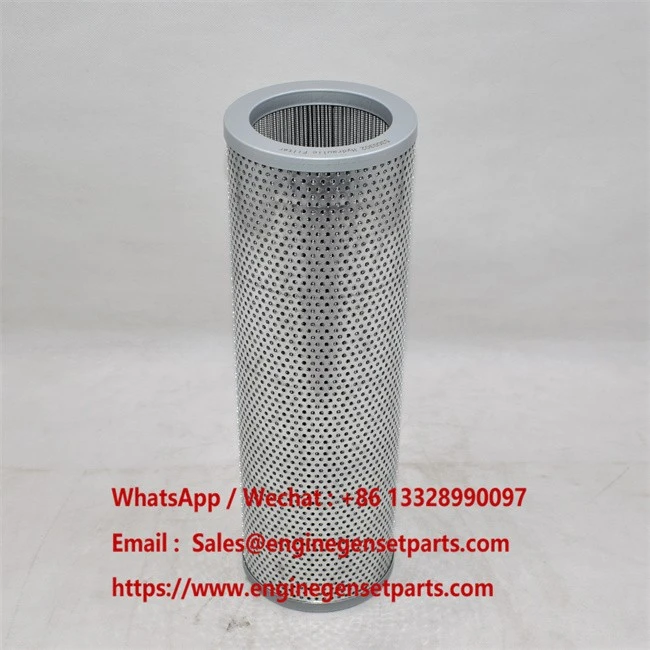

High-Pressure Heavy Duty
Hydraulic Filter 53C0302
Product Description
The 53C0302 Hydraulic Filter features an advanced synthetic media construction engineered to handle intense flow fluctuations and high system pressures. Achieving a superior Beta 1000 (β11 ≥ 1000) rating at 11 microns, it captures microscopic silts, wear debris, and varnish before they enter critical control valves or pumps. Enclosed within a heavy-duty, corrosion-resistant perforated steel core, this structural element offers excellent pleat stability and a high collapse burst resistance of 10 bar. It maintains steady fluid cleanliness, prevents precision-part scoring, and lowers overall operational downtime under extreme mechanical strain.
53C0302 Product Specifications
Specification Parameter
Dimensional & Technical Data
Product Name
Hydraulic Filter
Part Number
53C0302
Filter Style
Cartridge Element
Media Type
High-Performance Synthetic
Efficiency Rating
β11 = 1000 (99.9% at 11 Microns)
Outer Diameter
4.96 inches (126 mm)
Inner Diameter
3.62 inches (92 mm)
Overall Length
15.35 inches (390 mm)
Collapse Burst Resistance
145 psi (10 bar / 1000 kPa)
53C0302 Interchange Cross-References
Primary OE Application
ATLAS WEYHAUSEN 1691052
FleetguardHF7958
DonaldsonP173096
FiltrecR733G10
MicroFitMFHR56136
53C0302 Installation
01
Depressurize and Clean
Shut down the machine entirely and vent all residual pressure from the hydraulic reservoir circuit. Wipe down the external filter housing canister cover to keep dirt out of the system during disassembly.
02
Inspect Seals and Core
Extract the used cartridge carefully. Thoroughly inspect the interior housing base for debris, clean it, and replace the structural O-ring seals with new ones, lubricating them with clean hydraulic fluid.
03
Seat the Cartridge Squarely
Insert the new cartridge element straight down into the housing canister, verifying it centers perfectly on the internal alignment guide or spindle to prevent fluid bypass.
04
Torque and Cycle Test
Secure the housing cap to the manufacturer's specified torque mark. Start the engine, run the auxiliary hydraulics through a complete cycle to vent trapped air, and check for sealing integrity.
53C0302 Comprehensive Vehicle
This industrial-spec filtration solution provides vital wear-protection for high-load machinery operating under extreme work environments like civil construction, heavy logistics, and forestry harvesting.
Civil Engineering & Excavation Equipment
Protects sensitive proportional control valves and pilot control lines during intense digging, breaking, and lifting duties:
•
ATLAS: 1404 ZW, 1404 ZW, 1404 ZW, CRAB 1104, AB 1302, AB 1304, AB 1304, AB 1304, AB 1404, AB 1404, AB 1404, AB 1404, AB 1504, AB 1604, M 1605
Heavy Wheel Loaders & Material Handling
Maintains hydraulic fluid integrity under continuous high-flow pressure drops and punishing multi-directional steering tasks:
•
LIUGONG: CLG 856 H
•
VOLVO: L 150, L 150 LC
•
ATLAS: AR 52 A, AR 52 D, AR 52 E, AR 55, AR 62 C, AR 72 C, AR 72 E
