China Everlasting Parts Co., Ltd. is one of the most professional manufacturers and suppliers of rs-35-15 battery charger power supply in China. Welcome to wholesale original and genuine rs-35-15 battery charger power supply from our factory. Contact us for cheap products and OEM service.

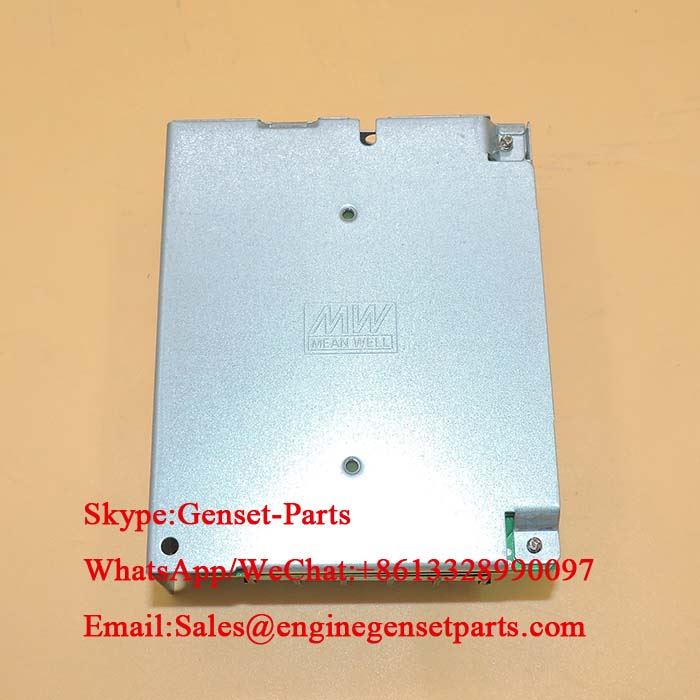

15V 2.4Amp Battery Charger RS-35-15 Power Supply
Specification:
| TYPE | DESCRIPTION |
| Categories | AC DC Converters |
| Series | RS-35 (35W) |
| Part Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 88 ~ 264 VAC, 125 ~ 373 VDC |
| Voltage - Output 1 | 15V |
| Current - Output (Max) | 2.4A |
| Power (Watts) | 36W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3kV |
| Efficiency | 0.86 |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.90" L x 3.23" W x 1.42" H (99.0mm x 82.0mm x 36.0mm) |
| Approval Agency | CB, CE, cURus, TUV |
| Minimum Load Required | 10pcs |
Features:
Universal AC Input/Full Range
Protectiuons:Short Circuit/Over Load/Over Voltage
Cooling By Free Air Convection
Led Indicator For Power On
100% Full Load Burn-In Test
No Load Power Consumption<0.5W
All Using 105C long life Electrolytic Capacitors
Withstand 300VAC Surge Input for 5 Second
High Operating Temperature Up To 70C
Withstand 5G Vibration Test
High Efficiency Long Life and High Reliablity
